EX5500 K2 A/C (EA1) - Honda Generator, Made in Japan (SN: EA1-1160001 - EA1-9999999) REAR HOUSING (2) Parts Diagram

Generator, Made in Japan

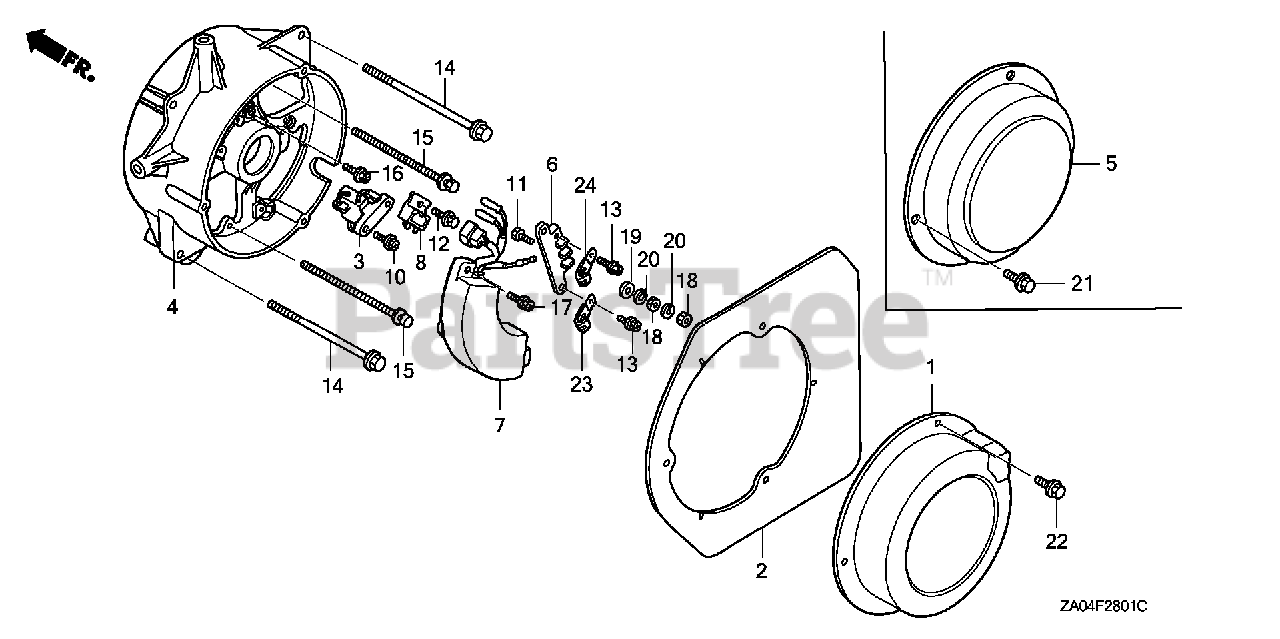

REAR HOUSING (2) Parts Diagram

  • Title

3

Honda 31106-ZB4-003

BRUSH ASSY.

$76.99

$

In Stock, only 1 left!

0

4

Honda 31108-ZA0-D01

HOUSING, RR.

$453.99

$

Usually ships in 3-6 days

0

5

Honda 31113-ZA0-801

COVER, GENERATOR END

$114.99

$

Usually ships in 3-6 days

0

6

Honda 31118-898-691

TERMINAL, VOLT CHANGE

$46.99

$

Usually ships in 3-6 days

0

7

Honda 32350-ZA0-D01

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

8

Honda 31720-ZA8-013

SEE PART DETAILS - PRI; DIODE, D.C.
(Superseded to 31720-ZA8-V00)

$48.99

$

Usually ships in 3-6 days

0

8

Honda 31720-ZB4-003

SEE PART DETAILS - SUP; DIODE, D.C.
(Superseded to 31720-ZA8-013)

$

$

Not available

10

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZD1-E31

BOLT, HEX. (5X20)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90031-875-003

SCREW, TAPPING (5X12) (GROUND CABLE)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90102-ZA0-000

BOLT, FLANGE (8X220)

$17.99

$

Usually ships in 3-6 days

0

15

Honda 90102-ZD1-E31

BOLT-WASHER (5X210)

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 93904-25320

SCREW, TAPPING (5X16) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

20

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

23

Honda 30564-871-003

CLAMP A, WIRE

$11.99

$

Usually ships in 3-6 days

0

24

Honda 30564-871-601

CLAMP B, WIRE

$8.49

$

Usually ships in 3-6 days

0
