EX5500 K2 A/C (EA1) - Honda Generator, Made in Japan (SN: EA1-1160001 - EA1-9999999) FUEL TANK (2) Parts Diagram

Generator, Made in Japan

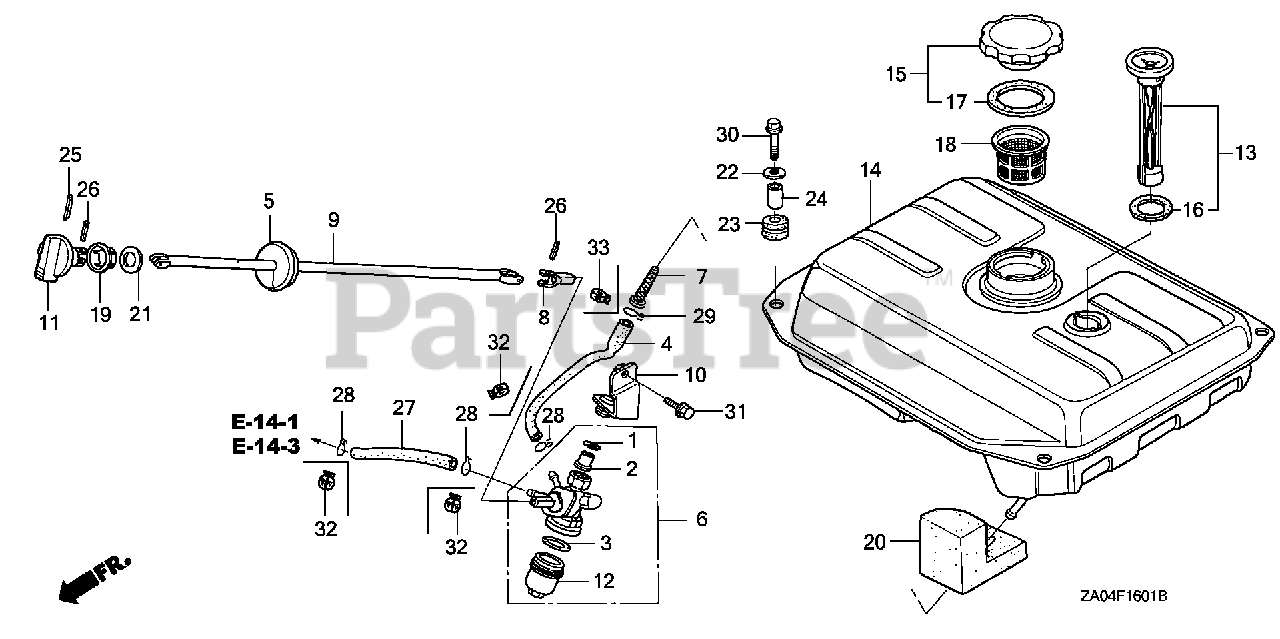

FUEL TANK (2) Parts Diagram

  • Title

3

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 8

0

4

Honda 16852-ZA0-800

TUBE, FUEL TANK

Note: Use up to Frame SN 1162359.

$7.49

$

Usually ships in 3-6 days

0

4

Honda 16852-ZA0-D31

TUBE, FUEL TANK (FKM)

Note: Use from Frame SN 1162360.

$

$

Not available

6

Honda 16950-ZA0-804

SEE PART DETAILS - PRI; PETCOCK ASSY., FUEL

$121.99

$

Usually ships in 3-6 days

0

7

Honda 16952-ZA0-000

FILTER, FUEL

$16.99

$

In Stock, only 1 left!

0

8

Honda 16954-ZA0-800

JOINT, PETCOCK CONTROL

$11.99

$

Usually ships in 3-6 days

0

9

Honda 16955-ZA0-802

SEE PART DETAILS - PRI; SHAFT, PETCOCK CONTROL

$29.99

$

Usually ships in 3-6 days

0

10

Honda 16956-ZA0-801

STAY, PETCOCK

$17.99

$

Usually ships in 3-6 days

0

11

Honda 16959-ZA0-800

KNOB, PETCOCK CONTROL

$15.99

$

Usually ships in 3-6 days

0

12

Honda 16967-MA2-771

CUP, FUEL STRAINER

$33.99

$

Usually ships in 3-6 days

0

13

Honda 17505-898-623

METER, FUEL

$

$

Not available

14

Honda 17510-ZA0-800ZA

TANK, FUEL *NH105* (MAT BLACK)

$359.99

$

Usually ships in 3-6 days

0

15

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

16

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

17

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

18

Honda 17672-899-000

FILTER, FUEL

$17.99

$

In Stock, only 2 left!

0

19

Honda 31413-ZA0-800

BUSH, PETCOCK SHAFT

$4.99

$

Usually ships in 3-6 days

0

20

Honda 63312-ZA0-800

RUBBER A, SEPARATOR SEAL

$10.99

$

In Stock, only 1 left!

0

21

Honda 90457-357-000

WASHER, THRUST (18.6MM)

$

$

Not available

22

Honda 90503-898-000

WASHER, TANK CUSHION

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90851-898-000

CUSHION, TANK RUBBER (Honda Code 1106806).

$5.99

$

In Stock, only 1 left!

0

24

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

25

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94305-25162

PIN, SPRING (2.5X16) (Honda Code 0671644).

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Frame SN 1162359.

$54.99

$

In Stock, only 4 left!

0

27

Honda 91424-ZA0-801

TUBE, FUEL (4.5X75) (FKM)

Note: Use from Frame SN 1162360.

$

$

Not available

28

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Frame SN 1162359.

$2.49

$

In Stock, only 4 left!

0

29

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Frame SN 1162359.

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2105823).

$2.49

$

In Stock, only 1 left!

0

31

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

32

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Frame SN 1162360.

$2.99

$

In Stock, Qty 6

0

33

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

Note: Use from Frame SN 1162360.

$3.49

$

In Stock, Qty 7

0
