EX5500 K2 A/C (EA1) - Honda Generator, Made in Japan (SN: EA1-1160001 - EA1-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

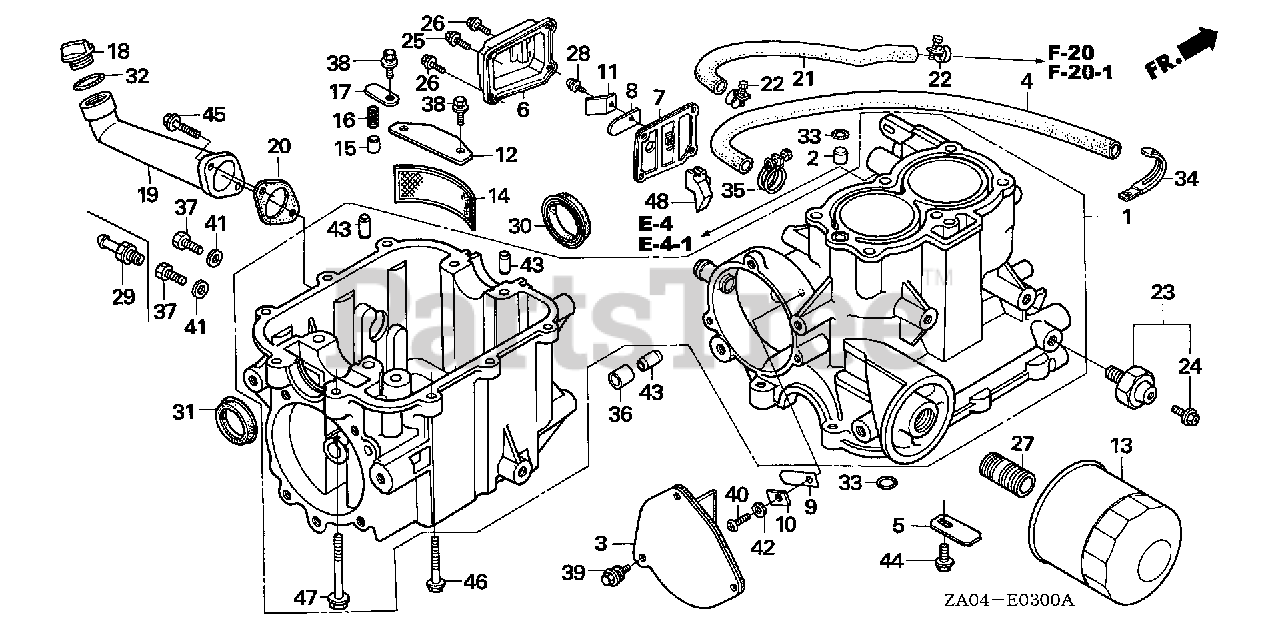

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZA0-405

CYLINDER ASSY.

$1191.99

$

Usually ships in 3-6 days

0

2

Honda 12125-ZA0-010

SEE PART DETAILS - PRI; ORIFICE, OIL CONTROL

$3.49

$

In Stock, only 1 left!

0

6

Honda 12360-ZA0-700

COVER, BREATHER (Honda Code 1971928).

$23.99

$

Usually ships in 3-6 days

0

7

Honda 12370-ZA0-981

SEE PART DETAILS - PRI; PLATE, BREATHER (Honda Code 3402401).

$18.99

$

Usually ships in 3-6 days

0

8

Honda 12372-ZA0-701

SEE PART DETAILS - PRI; PLATE, VALVE (Honda Code 2515195).

$8.49

$

Usually ships in 3-6 days

0

11

Honda 12374-ZA0-701

SEE PART DETAILS - PRI; STOPPER, VALVE (Honda Code 2515203).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 15334-ZA0-000

PLATE, OIL FILTER (Honda Code 1278449).

$9.99

$

Usually ships in 3-6 days

0

13

Honda 15400-ZA0-003

FILTER, OIL (Honda Code 7582380).

$26.99

$

In Stock, only 1 left!

0

14

Honda 15421-ZA0-000

SCREEN, OIL FILTER (Honda Code 1278456).

$16.99

$

Usually ships in 3-6 days

0

15

Honda 15473-ZA0-000

VALVE, CHECK (Honda Code 1313204).

$10.99

$

Usually ships in 3-6 days

0

16

Honda 15474-881-000

SPRING, VALVE (Honda Code 0497495).

$5.99

$

Usually ships in 3-6 days

0

17

Honda 15475-ZA0-000

PLATE, VALVE (Honda Code 1278480).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$13.99

$

Usually ships in 3-6 days

0

19

Honda 15632-ZA0-000

PIPE, OIL FILLER (Honda Code 1278506).

$62.99

$

Usually ships in 3-6 days

0

20

Honda 15635-ZA0-800

SEE PART DETAILS - PRI; GASKET, OIL PIPE (Honda Code 4012787).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 19502-ZA0-000

HOSE, WATER (LOWER) (Honda Code 1280189).

$51.99

$

Usually ships in 3-6 days

0

22

Honda 19511-679-010

SEE PART DETAILS - PRI; CLIP, WATER HOSE (Honda Code 1264076).

$15.99

$

Usually ships in 3-6 days

0

23

Honda 37240-ZA0-013

SEE PART DETAILS - PRI; SWITCH, OIL PRESSURE (Honda Code 3616927).

$44.99

$

Usually ships in 3-6 days

0

24

Honda 90002-PA6-003

BOLT-WASHER (4X8) (Honda Code 1169275).

$7.99

$

Usually ships in 3-6 days

0

25

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

26

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

27

Honda 90015-590-000

PIPE, OIL PASSAGE (Honda Code 0547398).

$20.99

$

Usually ships in 3-6 days

0

28

Honda 90092-657-000

SCREW-WASHER (5X8) (Honda Code 0582718).

$2.99

$

In Stock, only 4 left!

0

29

Honda 90131-ZE3-790

SEE PART DETAILS - PRI; PLUG, OIL DRAIN (Honda Code 2561140).

$12.99

$

Usually ships in 3-6 days

0

30

Honda 91201-ZA0-003

OIL SEAL (33X48X7) (Honda Code 1299015).

$14.99

$

In Stock, only 1 left!

0

31

Honda 91205-ZA0-003

OIL SEAL (30X44X7) (Honda Code 1279223).

$12.99

$

In Stock, only 4 left!

0

32

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

Usually ships in 3-6 days

0

33

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).

$3.99

$

In Stock, only 1 left!

0

34

Honda 91406-166-000

CLIP, WIRE (Honda Code 1083211).

$4.99

$

Usually ships in 3-6 days

0

37

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM) (Honda Code 0053975).

$5.49

$

In Stock, only 2 left!

0

38

Honda 93402-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 2646628).

$2.49

$

Usually ships in 3-6 days

0

41

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 7

0

43

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

45

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

46

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).

$2.99

$

Usually ships in 3-6 days

0

47

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

In Stock, only 2 left!

0

48

Honda 12376-ZA0-980

GUARD, BREATHER (Honda Code 2652774).

$11.99

$

Usually ships in 3-6 days

0
