EX5500 K2 A/B (EA1) - Honda Generator, Made in Japan (SN: EA1-1100101 - EA1-1159999) RECEPTACLE PANEL (EX5500/K1/K2 TO 1139326) Parts Diagram

Generator, Made in Japan

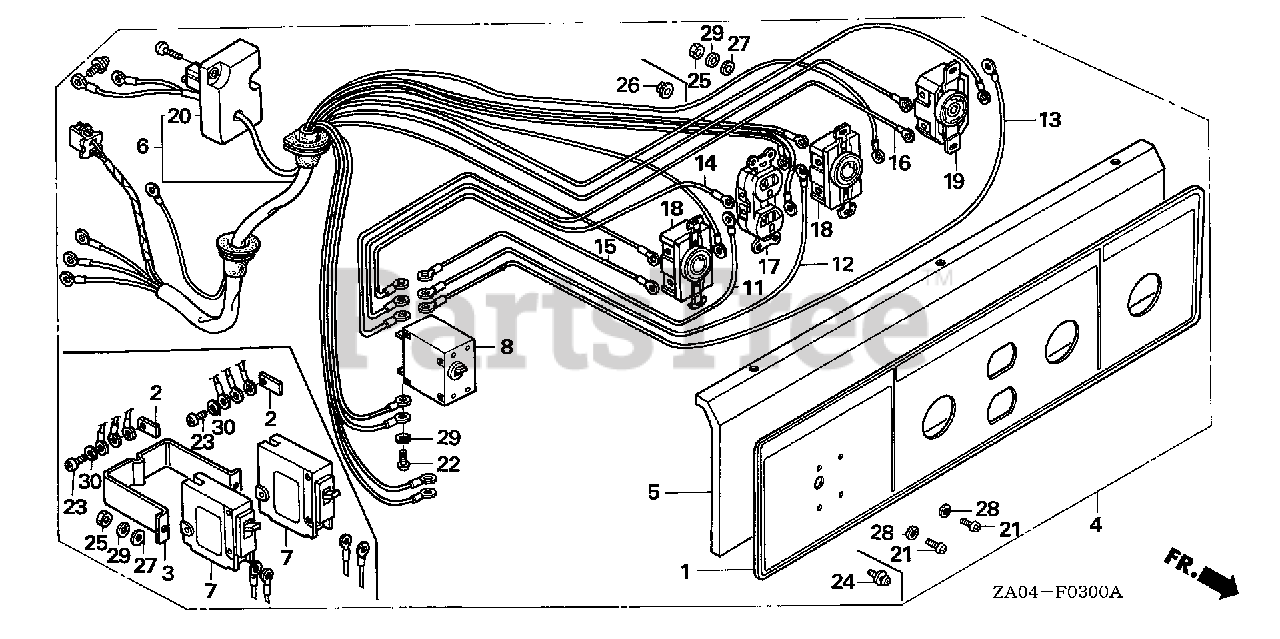

RECEPTACLE PANEL (EX5500/K1/K2 TO 1139326) Parts Diagram

  • Title

1

Honda 31408-ZA0-832

MARK, RECEPTACLE PANEL

Note: Use up to Frame SN 1139326.

$

$

Not available

4

Honda 31420-ZA0-833ZA

PANEL ASSY., RECEPTACLE *B9* (ATLANTIS BLUE)

Note: Use up to Frame SN 1139326.

$

$

Not available

5

Honda 31423-ZA0-831ZA

PANEL, RECEPTACLE *B9* (ATLANTIS BLUE)

Note: Use up to Frame SN 1139326.

$

$

Not available

6

Honda 31428-ZA0-833

WIRE HARNESS ASSY., RECEPTACLE

Note: Use up to Frame SN 1139326.

$

$

Not available

8

Honda 31430-ZA0-840

BREAKER, CIRCUIT (22A)

Note: Use up to Frame SN 1139326.

$

$

Not available

11

Honda 31561-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

12

Honda 31562-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

13

Honda 31563-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

14

Honda 31564-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

15

Honda 31565-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

16

Honda 31566-ZA0-833

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING

Note: Use up to Frame SN 1139326.

$

$

Not available

17

Honda 32330-ZS3-G31

RECEPTACLE (20A/125V) (EAGLE / RONG FENG)

Note: Use up to Frame SN 1139326.

$60.99

$

Usually ships in 3-6 days

0

18

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

Note: Use up to Frame SN 1139326.

$

$

Not available

19

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

Note: Use up to Frame SN 1139326.

$

$

Not available

20

Honda 36210-ZA0-003

CONTROL UNIT, IDLE

Note: Use up to Frame SN 1139326.

$289.99

$

Usually ships in 3-6 days

0

22

Honda 93500-04008-3J

SCREW, PAN (4X8)

Note: Use up to Frame SN 1139326.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93892-03006-08

SCREW-WASHER (3X6)

Note: Use up to Frame SN 1139326.

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94050-04080

NUT, FLANGE (4MM)

Note: Use up to Frame SN 1139326.

$1.99

$

In Stock, Qty 8

0

29

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

Note: Use up to Frame SN 1139326.

$1.49

$

Usually ships in 3-6 days

0
