EX5500 K2 A/A (EA1) - Honda Generator, Made in Japan (SN: EA1-1100001 - EA1-1100100) SWITCH BOX Parts Diagram

Generator, Made in Japan

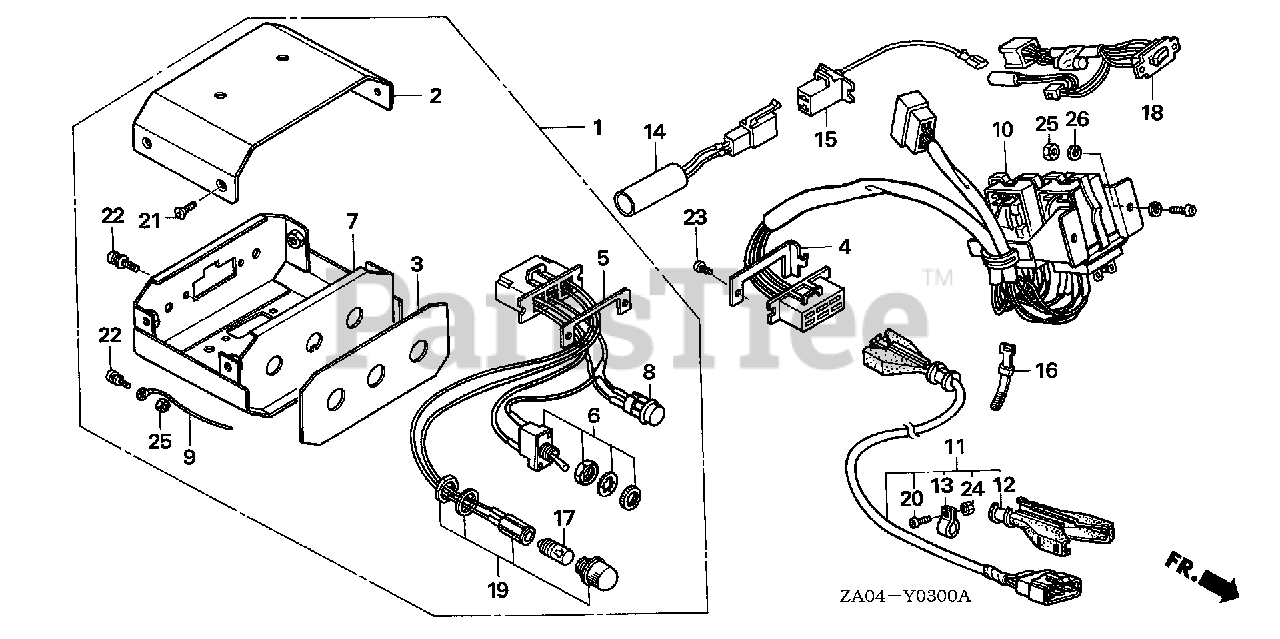

SWITCH BOX Parts Diagram

  • Title

1

Honda 31610-893-720ZB

BOX ASSY,SW*R280*

Note: (Optional).

$199.99

$

Usually ships in 3-6 days

0

2

Honda 31611-880-810ZA

COVER (UPPER) *R8* (BRIGHT RED) Use up to Frame SN 1110009.
(Superseded to 31611-880-810ZE)

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

2

Honda 31611-880-810ZE

COVER (UPPER) *R280* Use from Frame SN 1110010.

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

3

Honda 31612-880-810

PANEL, FR.

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

4

Honda 31613-ZA0-800

HOLDER, CONNECTOR (6P)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

5

Honda 31613-880-810

PLATE, CONNECTOR SETTING

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

6

Honda 31614-880-810

SWITCH, TOGGLE

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

7

Honda 31615-893-720

CASE, SWITCH

Note: (Optional).

$

$

Not available

8

Honda 31619-880-810

SWITCH, PUSH

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

9

Honda 31621-893-720

WIRE, GROUND

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

10

Honda 31650-ZA0-800

RELAY ASSY.

Note: (Optional).

$145.99

$

Usually ships in 3-6 days

0

11

Honda 31690-893-720

CABLE, REMOTE CONTROL (10MM)

Note: (Optional).

$91.99

$

Usually ships in 3-6 days

0

12

Honda 31691-893-720

COVER, CONNECTOR

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 31692-893-720

BAND

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

16

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

Note: (Optional).

$2.99

$

In Stock, only 4 left!

0

17

Honda 34909-880-000

SEE PART DETAILS - PRI; BULB (24V2W)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

19

Honda 37561-ZA0-003

SEE PART DETAILS - PRI; HOLDER, LAMP

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-3C

SCREW, PAN (3X12)

Note: (Optional).

$

$

Currently unavailable

21

Honda 93600-04008-0H

SCREW, FLAT (4X8) Use from Frame SN 1001725.

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

23

Honda 93901-24210

SCREW, TAPPING (4X10)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-03330-0S

NUT, HEX. (3MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
