EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) SIDE COVER Parts Diagram

Generator, Made in Japan

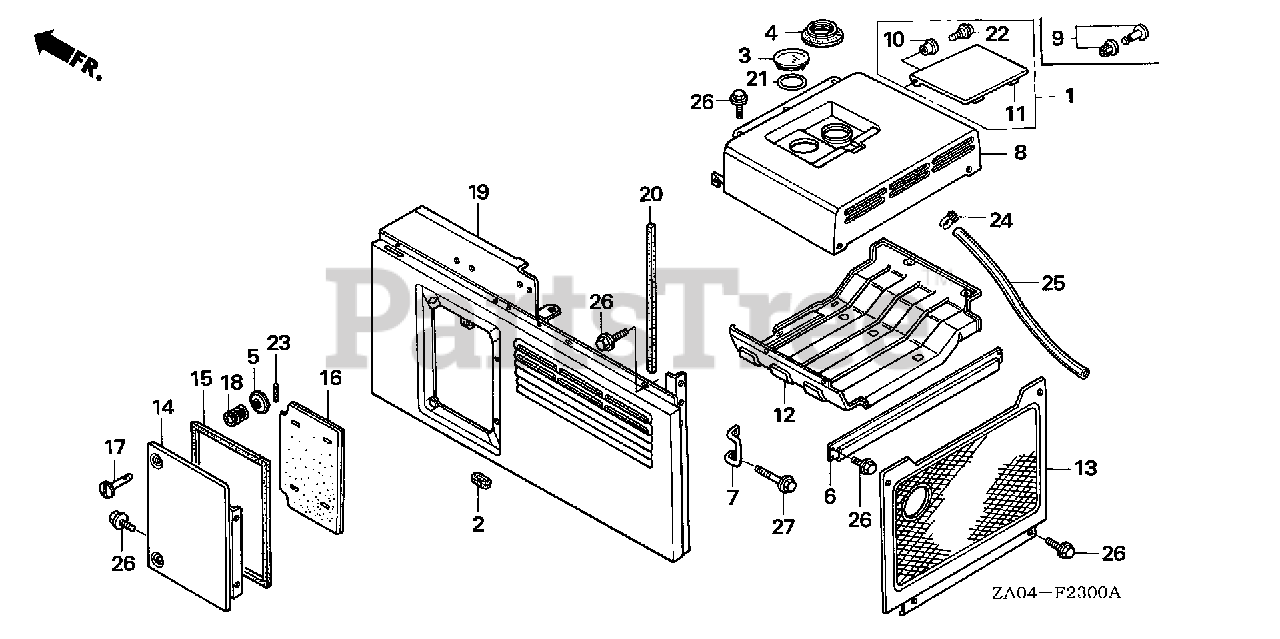

SIDE COVER Parts Diagram

  • Title

1

Honda 04601-ZB7-000ZC

COVER SET, FUEL CAP *NH35M* (CLOUD SILVER METALLIC)

Note: Use from Frame SN 1013529.

$

$

Not available

2

Honda 17247-240-000

GROMMET A, AIR CLEANER HOUSING

$3.99

$

Usually ships in 3-6 days

0

3

Honda 17507-ZA0-800

CAP, FUEL METER

$19.99

$

Usually ships in 3-6 days

0

4

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$22.99

$

Usually ships in 3-6 days

0

5

Honda 50129-862-000

RETAINER, LOCK SPRING

$5.99

$

In Stock, only 1 left!

0

6

Honda 53125-ZA0-800ZB

HANDLE, RR. *NH105* (MAT BLACK)

$82.99

$

Usually ships in 3-6 days

0

7

Honda 53126-ZA0-800

HOOK, RR. (UPPER)

$19.99

$

Usually ships in 3-6 days

0

8

Honda 63120-ZA0-801ZB

COVER, FUEL TANK (UPPER) *NH35M* (CLOUD SILVER METALLIC)

$588.99

$

Usually ships in 3-6 days

0

9

Honda 63121-ZA0-801

HINGE, FUEL CAP COVER

Note: Use up to Frame SN 1013528.

$

$

Currently unavailable

10

Honda 63121-ZB6-000

BUSH, FUEL CAP COVER (NOT AVAILABLE)

Note: Use from Frame SN 1013529.

$

$

Currently unavailable

11

Honda 04601-ZB7-000ZC

COVER SET, FUEL CAP *NH35M* (CLOUD SILVER METALLIC)

Note: Use up to Frame SN 1013528.

$

$

Not available

12

Honda 63125-ZA0-802

COVER, FUEL TANK (LOWER)

$260.99

$

Usually ships in 3-6 days

0

13

Honda 63140-ZA0-801ZA

COVER, RR. *B9* (ATLANTIS BLUE)

$294.99

$

Usually ships in 3-6 days

0

14

Honda 63150-ZA0-800ZA

COVER, CARBURETOR *B9* (ATLANTIS BLUE)

$147.99

$

Usually ships in 3-6 days

0

15

Honda 63153-ZA0-800

RUBBER, CARBURETOR COVER SEAL

$59.99

$

Usually ships in 3-6 days

0

16

Honda 63154-ZA0-800

INSULATOR, CARBURETOR COVER

$40.99

$

Usually ships in 3-6 days

0

17

Honda 63172-862-010

PIN, COVER LOCK

$10.99

$

In Stock, only 1 left!

0

18

Honda 63173-862-000

SPRING, COVER LOCK

$6.49

$

In Stock, only 1 left!

0

19

Honda 63175-ZA0-803ZA

COVER, L. SIDE *B9* (ATLANTIS BLUE)

$804.99

$

Usually ships in 3-6 days

0

20

Honda 63178-ZA0-800

RUBBER, SIDE COVER SEAL

$15.99

$

Usually ships in 3-6 days

0

21

Honda 91356-706-000

O-RING (56X2.4)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05012-0A

SCREW, PAN (5X12)

Note: Use from Frame SN 1013529.

$1.49

$

In Stock, Qty 8

0

23

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

In Stock, only 1 left!

0

24

Honda 95002-01160

CLIP, TUBE (A16)

$6.49

$

Usually ships in 3-6 days

0

25

Honda 95003-40003-60M

BULK HOSE, VINYL (12X16X3000) (12X16X850)

$

$

Not available

26

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

27

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
