EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) REAR HOUSING (1) Parts Diagram

Generator, Made in Japan

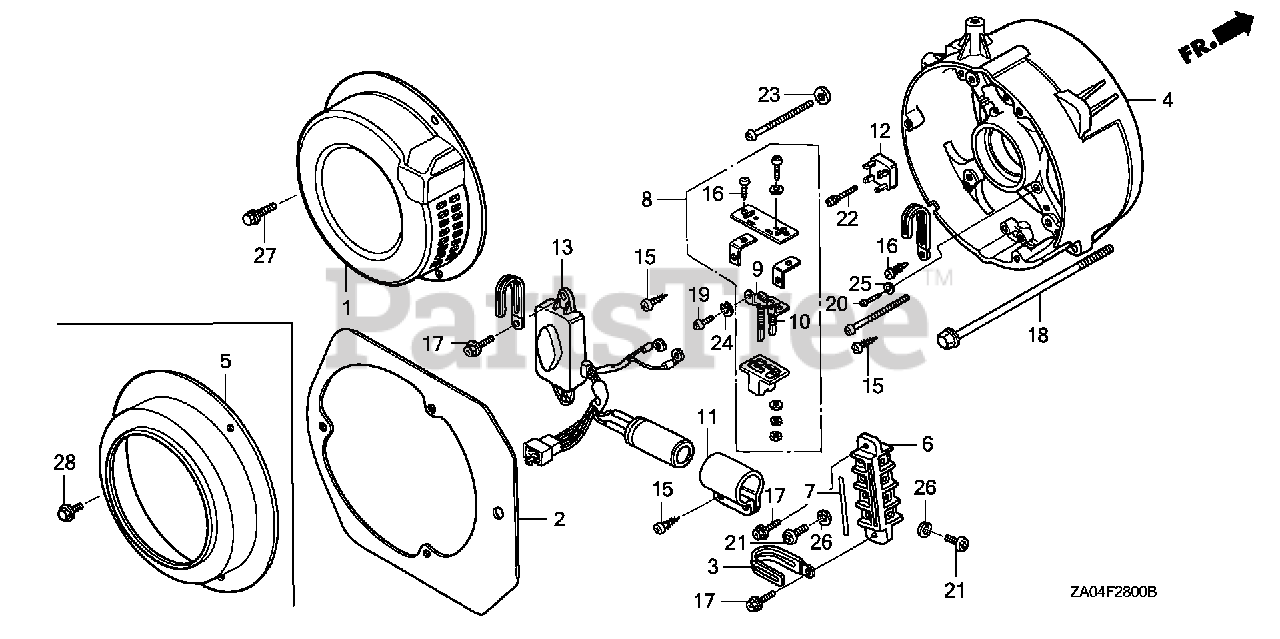

REAR HOUSING (1) Parts Diagram

  • Title

3

Honda 30564-871-601

CLAMP B, WIRE

$7.49

$

Usually ships in 3-6 days

0

4

Honda 31108-ZA0-003ZA

HOUSING, RR. *NH116M* (URBAN SILVER METALLIC) (NOT AVAILABLE)

$

$

Not available

5

Honda 31113-ZA0-801

COVER, GENERATOR END

$104.99

$

Usually ships in 3-6 days

0

6

Honda 31118-880-000

TERMINAL, A.C. OUT

$65.99

$

Usually ships in 3-6 days

0

7

Honda 31119-ZA0-631

MARK, A.C. OUTPUT

$

$

Not available

8

Honda 31120-880-010

SEE PART DETAILS - PRI; HOLDER ASSY., BRUSH

$

$

Not available

9

Honda 31122-880-000

BRUSH

$31.99

$

In Stock, only 2 left!

0

10

Honda 31128-880-000

BRUSH

$31.99

$

Usually ships in 3-6 days

0

11

Honda 31427-877-003

HOLDER, CONDENSER

$8.49

$

Usually ships in 3-6 days

0

12

Honda 31710-ZA0-003

STACK, DIODE

$70.99

$

Usually ships in 3-6 days

0

13

Honda 32350-899-013

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

15

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

16

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90102-ZA0-000

BOLT, FLANGE (8X220)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 90102-899-003

SCREW, PAN (5X12)

Note: Use from Frame SN 1012623.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 93500-05012-3J

SCREW, PAN (5X12)

Note: Use up to Frame SN 1012622.

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-06008-3J

SCREW, PAN (6X8)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93893-04020-08

SCREW-WASHER (4X20)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
