EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) FUEL TANK (2) Parts Diagram

Generator, Made in Japan

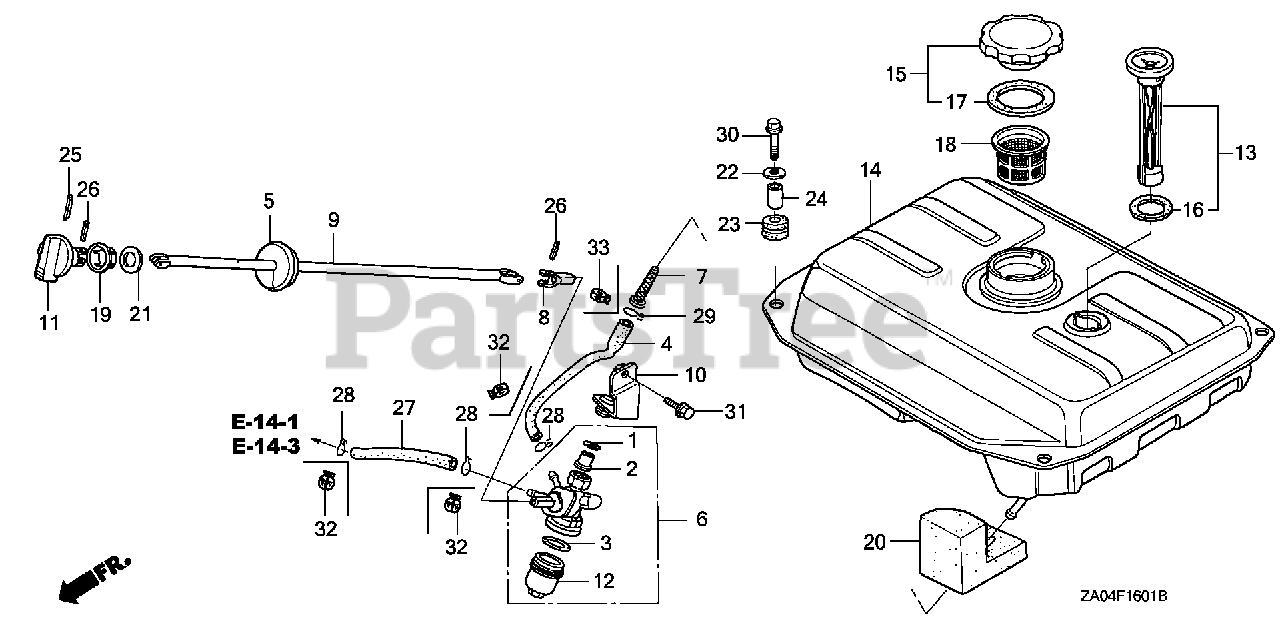

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16156-551-950

O-RING (NOT AVAILABLE)

$

$

Not available

2

Honda 16172-ZA0-003

COLLAR, PETCOCK SETTING (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 1 left!

0

4

Honda 16852-ZA0-800

TUBE, FUEL TANK

$8.49

$

Usually ships in 3-6 days

0

5

Honda 16917-692-000

GROMMET, FUEL PUMP (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16950-ZA0-802

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZA0-804)

$132.99

$

Usually ships in 3-6 days

0

6

Honda 16950-ZA0-804

SEE PART DETAILS - PRI; PETCOCK ASSY.

$132.99

$

Usually ships in 3-6 days

0

7

Honda 16952-ZA0-000

FILTER, FUEL

$16.99

$

In Stock, only 1 left!

0

8

Honda 16954-ZA0-800

JOINT, PETCOCK CONTROL

$12.99

$

Usually ships in 3-6 days

0

9

Honda 16955-ZA0-800

SEE PART DETAILS - SUP; SHAFT, PETCOCK CONTROL
(Superseded to 16955-ZA0-802)

Note: Use up to Frame SN 1010685.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16955-ZA0-802

SEE PART DETAILS - PRI; SHAFT, PETCOCK CONTROL

$31.99

$

Usually ships in 3-6 days

0

10

Honda 16956-ZA0-801

STAY, PETCOCK

$19.99

$

Usually ships in 3-6 days

0

11

Honda 16959-ZA0-800

KNOB, PETCOCK CONTROL

$16.99

$

Usually ships in 3-6 days

0

12

Honda 16967-MA2-771

CUP, FUEL STRAINER

$34.99

$

Usually ships in 3-6 days

0

13

Honda 17505-898-623

METER, FUEL

$

$

Not available

14

Honda 17510-ZA0-800ZA

TANK, FUEL *NH105* (MAT BLACK)

$393.99

$

Usually ships in 3-6 days

0

15

Honda 17620-899-003

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-899-013)

$

$

Not available

15

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$42.99

$

Usually ships in 3-6 days

0

16

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

17

Honda 17631-VM6-300

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.49

$

In Stock, only 2 left!

0

17

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.49

$

In Stock, only 2 left!

0

18

Honda 17672-899-000

FILTER, FUEL

$18.99

$

In Stock, only 3 left!

0

19

Honda 31413-ZA0-800

BUSH, PETCOCK SHAFT

$5.49

$

Usually ships in 3-6 days

0

20

Honda 63312-ZA0-800

RUBBER A, SEPARATOR SEAL

$11.99

$

In Stock, only 1 left!

0

21

Honda 90457-357-000

WASHER, THRUST (18.6MM)

$

$

Not available

22

Honda 90503-898-000

WASHER, TANK CUSHION

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90851-898-000

RUBBER, TANK CUSHION

$5.99

$

In Stock, only 1 left!

0

24

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

25

Honda 94201-20350

PIN, SPLIT (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94305-25162

PIN, SPRING (2.5X16)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X75)

$54.99

$

In Stock, only 1 left!

0

28

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0

30

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.49

$

In Stock, only 1 left!

0

31

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0
