EX5500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) CONTROL PANEL Parts Diagram

Generator, Made in Japan

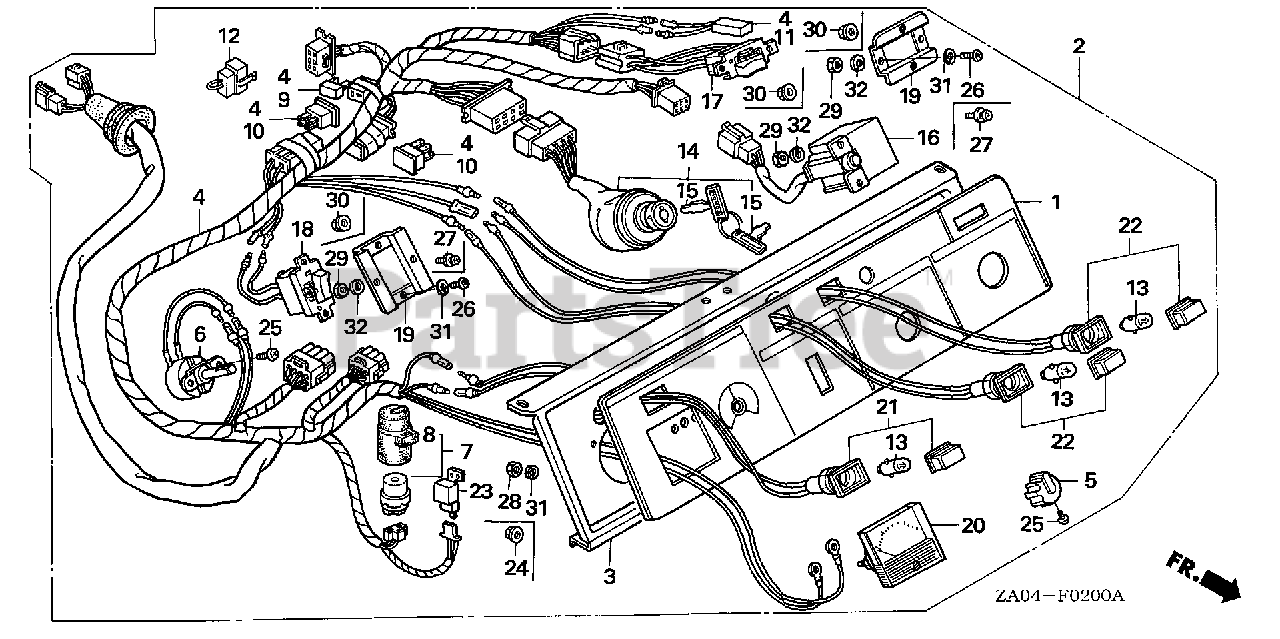

CONTROL PANEL Parts Diagram

  • Title

1

Honda 31406-ZA0-832

MARK, CONTROL PANEL

$117.99

$

Usually ships in 3-6 days

0

2

Honda 31410-ZA0-831ZA

PANEL ASSY., CONTROL *NH105* (MAT BLACK)

Note: Use up to Frame SN 1009848.

$

$

Currently unavailable

2

Honda 31410-ZA0-832ZA

PANEL ASSY., CONTROL *NH105* (MAT BLACK) (NOT AVAILABLE)

Note: Use from Frame SN 1009849.

$

$

Currently unavailable

3

Honda 31411-ZA0-830ZA

PANEL, CONTROL *NH105* (MAT BLACK)

Note: Use up to Frame SN 1009848.

$

$

Not available

3

Honda 31411-ZA0-831ZA

PANEL, CONTROL *NH105* (MAT BLACK)

Note: Use from Frame SN 1009849.

$268.99

$

Usually ships in 3-6 days

0

4

Honda 31418-ZA0-831

HARNESS ASSY., CONTROL (NOT AVAILABLE)

Note: Use up to Frame SN 1009848.

$

$

Currently unavailable

4

Honda 31418-ZA0-832

HARNESS ASSY., CONTROL

Note: Use from Frame SN 1009849.

$

$

Currently unavailable

5

Honda 31461-898-000

KNOB, ADJUSTING

$14.99

$

Usually ships in 3-6 days

0

6

Honda 31465-ZA0-010

RESISTOR, VARIABLE

$

$

Not available

7

Honda 31660-ZA0-801

RELAY ASSY.

Note: Use from Frame SN 1009849.

$55.99

$

Usually ships in 3-6 days

0

8

Honda 31661-ZA0-801

SUSPENSION

Note: Use from Frame SN 1009849.

$24.99

$

Usually ships in 3-6 days

0

10

Honda 31710-893-003

STACK ASSY., DIODE (2.7A)

$

$

Not available

11

Honda 31715-ZA0-831

DIODE

$82.99

$

Usually ships in 3-6 days

0

12

Honda 32130-ZA0-800

CONNECTOR ASSY.

$16.99

$

Usually ships in 3-6 days

0

13

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W)

Note: Use from Frame SN 1008836.

$3.99

$

In Stock, only 1 left!

0

13

Honda 34909-880-000

BULB, DASH (24V-2W)

Note: Use up to Frame SN 1008835.

$9.49

$

Usually ships in 3-6 days

0

14

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

$119.99

$

Usually ships in 3-6 days

0

14

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$119.99

$

Usually ships in 3-6 days

0

15

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$11.99

$

In Stock, only 3 left!

0

16

Honda 35520-ZA0-003

RELAY, ALERT

$334.99

$

Usually ships in 3-6 days

0

17

Honda 36130-ZA0-800

SWITCH ASSY., CONTROL

$

$

Not available

18

Honda 36214-ZA0-800

SWITCH ASSY., IDLE CONTROL

$

$

Not available

19

Honda 36217-ZA0-801

STAY, SWITCH (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 37450-ZA0-831

METER ASSY., VOLT (300V)

$269.99

$

Usually ships in 3-6 days

0

21

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$47.99

$

Usually ships in 3-6 days

0

22

Honda 37570-ZA0-801

SOCKET ASSY., LAMP (RED)

$53.99

$

Usually ships in 3-6 days

0

25

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

26

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0

28

Honda 94001-03080-0S

NUT, HEX. (3MM)

$

$

Not available

29

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

32

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0
