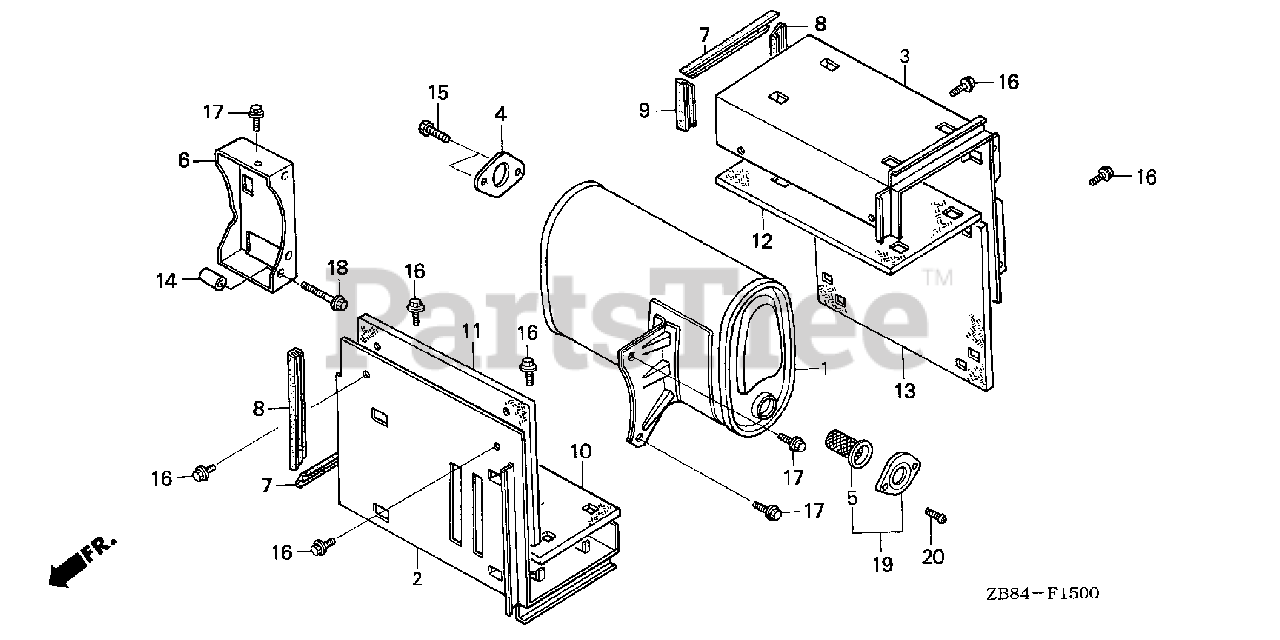

EX4500S K1 A (EB3) - Honda Generator, Made in Japan (SN: EB3-1100001 - EB3-1104211) MUFFLER Parts Diagram

Generator, Made in Japan

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZB8-631

MUFFLER

$467.99

$

Usually ships in 3-6 days

0

2

Honda 18321-ZB7-000

DUCT, MUFFLER (LOWER)

$118.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB7-000

DUCT, MUFFLER (UPPER)

$118.99

$

Usually ships in 3-6 days

0

4

Honda 18333-ZB7-800

GASKET, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

5

Honda 18335-ZE8-000

ARRESTER, SPARK

$14.99

$

Usually ships in 3-6 days

0

6

Honda 18338-ZB7-000

STAY, MUFFLER

$35.99

$

Usually ships in 3-6 days

0

7

Honda 18412-ZB7-000

SEAL, MUFFLER DUCT (A)

$7.49

$

Usually ships in 3-6 days

0

8

Honda 18413-ZB7-000

SEAL, MUFFLER DUCT (B)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 18414-ZB7-000

SEAL, MUFFLER DUCT (C)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 64181-ZB7-000

INSULATOR A, MUFFLER DUCT (LOWER)

$24.99

$

Usually ships in 3-6 days

0

11

Honda 64182-ZB7-000

INSULATOR B, MUFFLER DUCT (LOWER)

$27.99

$

Usually ships in 3-6 days

0

12

Honda 64185-ZB7-000

INSULATOR A, MUFFLER DUCT (UPPER)

$24.99

$

Usually ships in 3-6 days

0

13

Honda 64186-ZB7-000

INSULATOR B, MUFFLER DUCT (UPPER)

$27.99

$

Usually ships in 3-6 days

0

14

Honda 91551-ZB7-000

COLLAR, MUFFLER STAY

$5.99

$

Usually ships in 3-6 days

0

15

Honda 92101-08028-0A

BOLT, HEX. (8X28)

$2.49

$

In Stock, only 3 left!

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

17

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

18

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 6

0

19

Honda 183A5-ZE8-000

ARRESTER SET, SPARK

$

$

Currently unavailable

20

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

20

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0
