EX4500S K1 A (EB3) - Honda Generator, Made in Japan (SN: EB3-1100001 - EB3-1104211) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

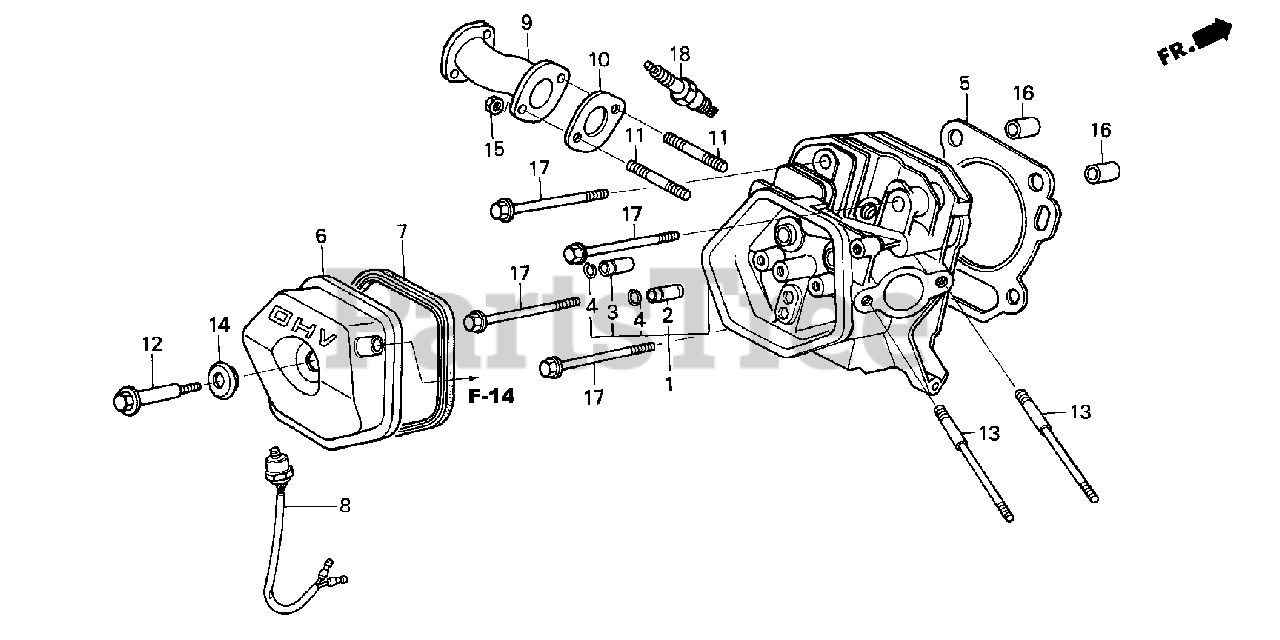

CYLINDER HEAD Parts Diagram

  • Title
1

Honda 12200-ZF6-W00

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Currently unavailable

1

Honda 12200-ZF6-406

SEE PART DETAILS - PRI; CYLINDER HEAD

$362.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE3-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE3-W01)

$19.99

$

In Stock, only 1 left!

0

6

Honda 04107-ZE3-790

COVER KIT, HEAD

Note: Use up to Engine SN 2179986.

$

$

Not available

6

Honda 12310-ZE3-791

COVER, HEAD (BREATHER TUBE JOINT)

Note: Use from Engine SN 2179987.

$50.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$11.99

$

In Stock, Qty 20+

0

8

Honda 16500-ZE2-702

SEE PART DETAILS - SUP; SWITCH, THERMO
(Superseded to 16500-ZE2-703)

$74.99

$

Usually ships in 3-6 days

0

9

$

$

Not available

10

Honda 18333-ZB7-800

GASKET, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

11

Honda 90012-KM9-000

BOLT, STUD (8X34)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

13

Honda 90042-ZB7-000

BOLT, STUD (8X111)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 16

0

15

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

16

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

18

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
