EX4500S K1 A (EB3) - Honda Generator, Made in Japan (SN: EB3-1100001 - EB3-1104211) CYLINDER Parts Diagram

Generator, Made in Japan

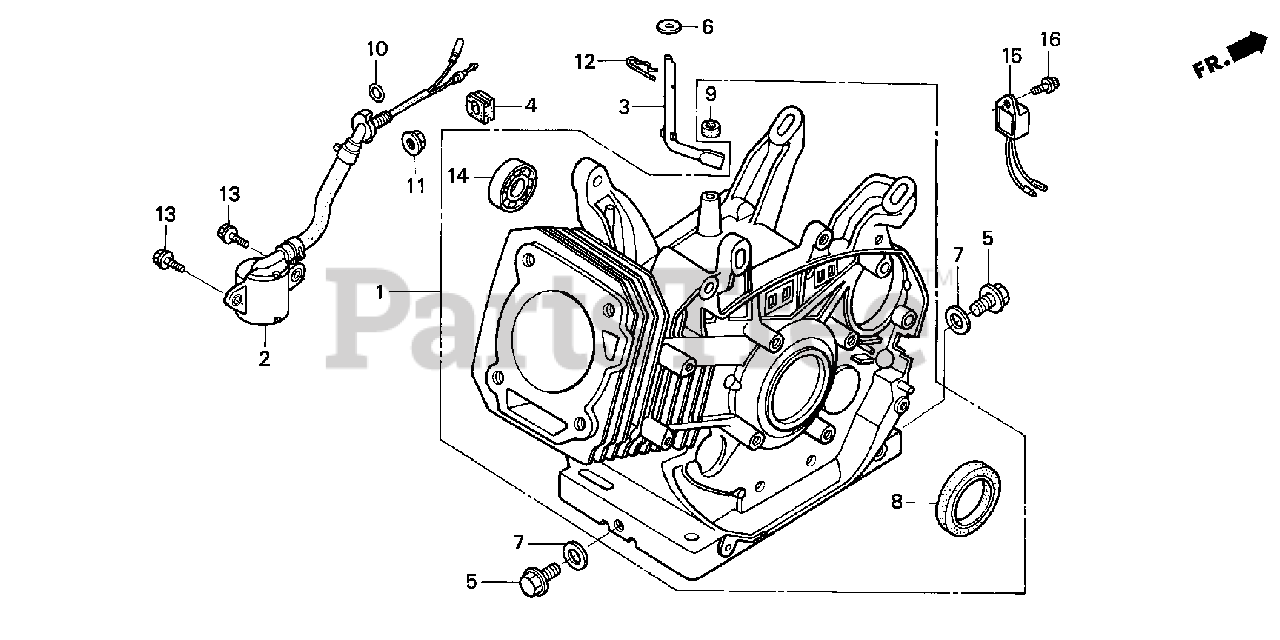

CYLINDER Parts Diagram

  • Title
1

Honda 12000-ZE3-828

SEE PART DETAILS - SUP; CYLINDER ASSY. (SELFSTARTER+ALERT)

$

$

Currently unavailable

2

Honda 15510-ZE2-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL

$60.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

$60.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE3-010

SHAFT, GOVERNOR ARM

$17.99

$

In Stock, only 1 left!

0

4

Honda 31512-ZE2-000

GROMMET, WIRE

$3.99

$

Usually ships in 3-6 days

0

5

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 2 left!

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

7

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 7

0

8

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 9

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 17

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 14

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

14

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
