EX4500S K1 A/B (EB3) - Honda Generator, Made in Japan (SN: EB3-1120001 - EB3-9999999) CONTROL PANEL (FROM EB3-1115605) Parts Diagram

Generator, Made in Japan

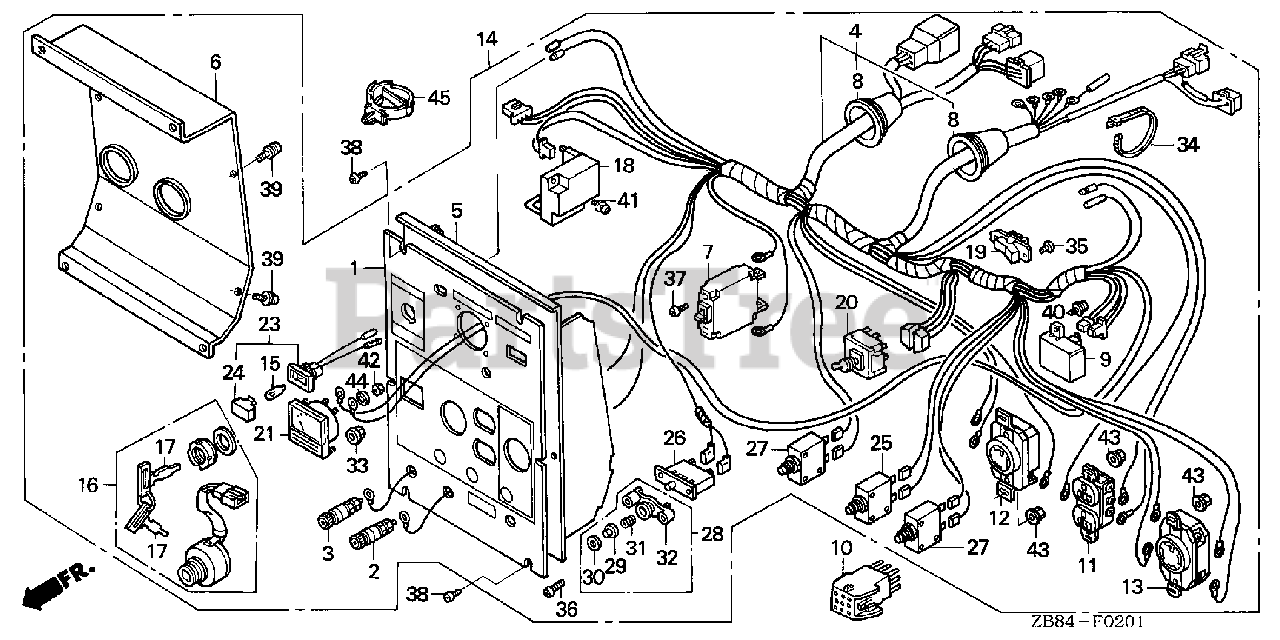

CONTROL PANEL (FROM EB3-1115605) Parts Diagram

  • Title

1

Honda 31406-ZB8-S30

MARK, CONTROL INDICATION

$

$

Not available

2

Honda 31408-ZB7-000

TERMINAL, D.C. OUTPUT (+)

Note: Use from Frame SN 1125780.

$35.99

$

Usually ships in 3-6 days

0

2

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

Note: Use up to Frame SN 1125779.

$50.99

$

Usually ships in 3-6 days

0

3

Honda 31409-ZB7-000

TERMINAL, D.C. OUTPUT (-)

Note: Use from Frame SN 1125780.

$35.99

$

Usually ships in 3-6 days

0

3

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

Note: Use up to Frame SN 1125779.

$50.99

$

Usually ships in 3-6 days

0

4

Honda 31418-ZB8-S31

HARNESS ASSY., CONTROL (EXS-A)

$234.99

$

Usually ships in 3-6 days

0

4

Honda 31418-ZB8-633

HARNESS ASSY., CONTROL (EXS-A)

$406.99

$

Usually ships in 3-6 days

0

5

Honda 31420-ZB8-632

PANEL, CONTROL

$281.99

$

Usually ships in 3-6 days

0

6

Honda 31425-ZB7-003

COVER, CONTROL

$115.99

$

Usually ships in 3-6 days

0

7

Honda 31430-ZB8-630

BREAKER, CIRCUIT (18A)

$255.99

$

Usually ships in 3-6 days

0

8

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$18.99

$

Usually ships in 3-6 days

0

9

Honda 31710-ZB7-A01

SEE PART DETAILS - SUP; DIODE ASSY.
(Superseded to 31710-ZB7-A02)

$116.99

$

Usually ships in 3-6 days

0

10

Honda 32130-ZB7-000

CONNECTOR ASSY.

$27.99

$

Usually ships in 3-6 days

0

11

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

$55.99

$

In Stock, only 1 left!

0

12

Honda 32332-Z04-C31

RECEPTACLE (30A/125V)

$63.99

$

Usually ships in 3-6 days

0

13

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

14

Honda 32340-ZB8-S31

PANEL ASSY., CONTROL

$

$

Currently unavailable

15

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W)

$3.99

$

In Stock, only 1 left!

0

16

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

$124.99

$

Usually ships in 3-6 days

0

17

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

Note: Use up to Frame SN 1121816.

$12.99

$

In Stock, Qty 5

0

17

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$12.99

$

In Stock, Qty 5

0

18

Honda 36210-ZB4-004

SEE PART DETAILS - SUP; THROTTLE UNIT ASSY., AUTO
(Superseded to 36210-ZB4-014)

$279.99

$

Usually ships in 3-6 days

0

19

Honda 36214-ZB4-003

SEE PART DETAILS - SUP; SWITCH ASSY., AUTO THROTTLE
(Superseded to 36214-ZB4-013)

$

$

Not available

20

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$238.99

$

Usually ships in 3-6 days

0

21

Honda 37450-ZB4-651

METER ASSY., VOLT (300V)

$339.99

$

Usually ships in 3-6 days

0

23

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$49.99

$

Usually ships in 3-6 days

0

24

Honda 37563-ZA0-801

LENS (GREEN)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

Note: Use up to Frame SN 1124526.

$87.99

$

Usually ships in 3-6 days

0

25

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

Note: Use from Frame SN 1124527.

$87.99

$

Usually ships in 3-6 days

0

26

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$39.99

$

In Stock, only 4 left!

0

27

Honda 38241-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (30A)
(Superseded to 38241-ZC6-E31)

Note: Use up to Frame SN 1124526.

$87.99

$

Usually ships in 3-6 days

0

27

Honda 38241-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

Note: Use from Frame SN 1124527.

$87.99

$

Usually ships in 3-6 days

0

28

Honda 38250-898-000

LENS ASSY., PROTECTOR

$26.99

$

Usually ships in 3-6 days

0

29

Honda 38251-898-000

LENS

$8.99

$

Usually ships in 3-6 days

0

30

Honda 38252-898-000

CAP, LENS

$7.49

$

Usually ships in 3-6 days

0

31

Honda 38253-898-000

SPRING, COIL

$2.49

$

Usually ships in 3-6 days

0

32

Honda 38254-898-000

HOLDER, LENS

$10.99

$

Usually ships in 3-6 days

0

33

Honda 90201-ZB4-003

NUT, FLANGE (3MM)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90672-ZB4-003

TIE, CABLE

$6.49

$

Usually ships in 3-6 days

0

35

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

36

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

38

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

39

Honda 93892-04008-08

SCREW-WASHER (4X8)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93893-05012-18

SEE PART DETAILS - SUP; SCREW-WASHER (5X12)

$

$

Currently unavailable

42

Honda 94001-03330-0S

NUT, HEX. (3MM)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

45

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0
