EX4500S K1 A/A (EB3) - Honda Generator, Made in Japan (SN: EB3-1104212 - EB3-1119999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

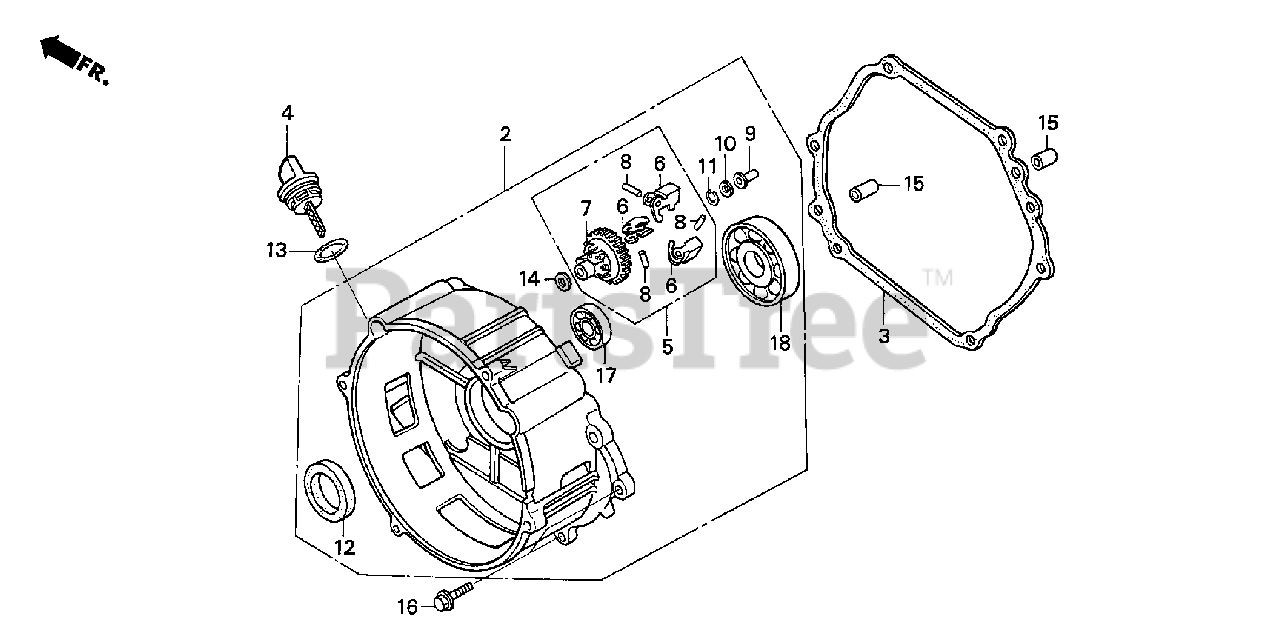

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-ZE3-702

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (E-TYPE)
(Superseded to 11300-ZE3-704)

Note: Use up to Engine SN 3460754.

$279.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZE3-704

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

Note: Use up to Engine SN 3460754.

$279.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZE3-704

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

Note: Use from Engine SN 3460755.

$279.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

Note: Use up to Engine SN 3279758.

$13.99

$

In Stock, Qty 5

0

3

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER

Note: Use from Engine SN 3279759.

$13.99

$

In Stock, Qty 5

0

4

Honda 15620-ZE2-700

CAP, OIL FILLER

$8.49

$

In Stock, only 4 left!

0

5

Honda 16510-ZE3-000

GOVERNOR ASSY.

$31.99

$

In Stock, only 2 left!

0

6

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

7

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$18.99

$

Usually ships in 3-6 days

0

8

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

9

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

9

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: Use up to Engine SN 3460754.

$3.99

$

In Stock, Qty 5

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

12

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 8

0

13

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, Qty 11

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

16

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

17

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 4 left!

0

18

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
