EX4500S A (EB3) - Honda Generator, Made in Japan (SN: EB3-1000001 - EB3-1099999) CARBURETOR Parts Diagram

Generator, Made in Japan

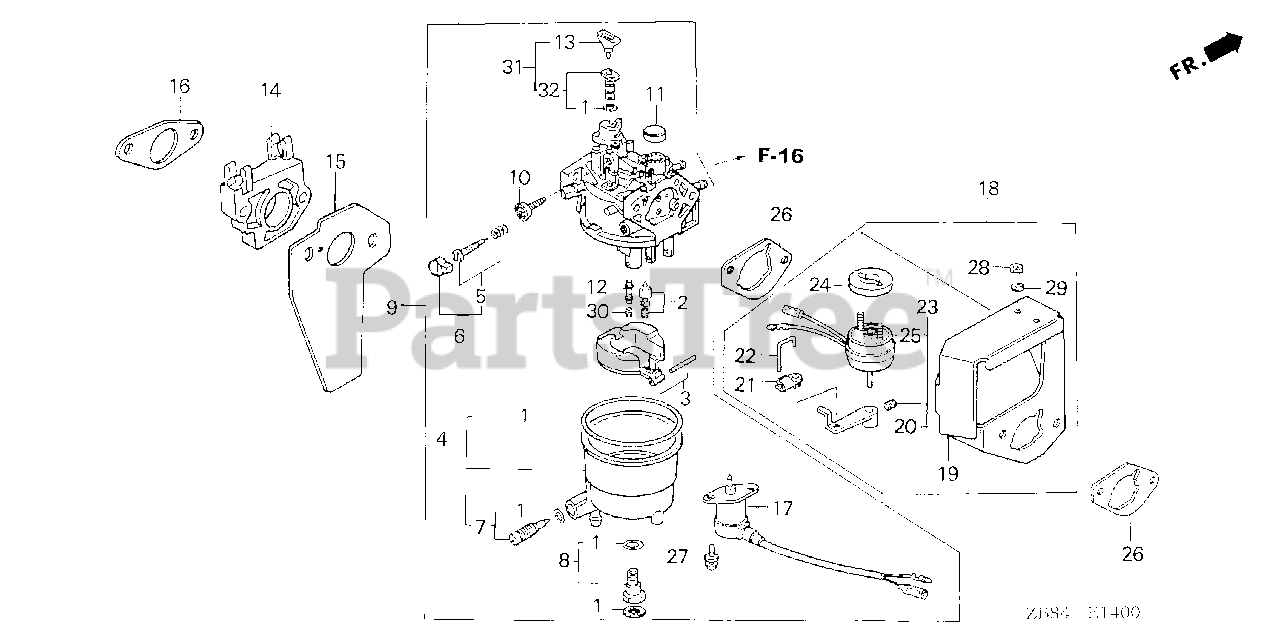

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$80.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZE3-701

SCREW SET

$27.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZB8-015

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE38A B)
(Superseded to 16100-ZB8-065)

Note: Use up to Engine SN 1172869.

$230.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZB8-025

SEE PART DETAILS - SUP; CARBURETOR ASSY.
(Superseded to 16100-ZB8-065)

Note: Use up to Engine SN 1172869.

$230.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZB8-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE38A D)
(Superseded to 16100-ZB8-065)

$230.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZB8-045

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE38A D)

$

$

Currently unavailable

9

Honda 16100-ZB8-055

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE38A D)

$

$

Currently unavailable

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZE3-701

NOZZLE, MAIN

$33.99

$

In Stock, only 1 left!

0

14

Honda 16211-ZB8-000

INSULATOR, CARBURETOR

$23.99

$

Usually ships in 3-6 days

0

15

Honda 16221-ZB7-800

GASKET, CARBURETOR

$23.99

$

Usually ships in 3-6 days

0

16

Honda 16223-ZE3-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16223-ZE3-800)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

Usually ships in 3-6 days

0

17

Honda 16230-ZE3-701

SEE PART DETAILS - SUP; VALVE ASSY., SOLENOID
(Superseded to 16230-ZE3-702)

$72.99

$

In Stock, only 1 left!

0

18

Honda 16260-ZB7-000

STAY ASSY., SOLENOID

$198.99

$

Usually ships in 3-6 days

0

19

Honda 16261-ZB7-000

STAY, CHOKE SOLENOID

$35.99

$

Usually ships in 3-6 days

0

20

Honda 16262-ZB7-000

LEVER, CHOKE SOLENOID

$8.49

$

Usually ships in 3-6 days

0

21

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

22

Honda 16264-ZB7-000

ROD, CHOKE SOLENOID

$2.49

$

In Stock, only 2 left!

0

23

Honda 16265-ZB7-000

SOLENOID ASSY., CHOKE

$170.99

$

Usually ships in 3-6 days

0

24

Honda 16266-ZB7-000

SPACER, CHOKE SOLENOID

$13.99

$

Usually ships in 3-6 days

0

25

Honda 16267-ZB7-003

SOLENOID, ROTARY CHOKE

$131.99

$

Usually ships in 3-6 days

0

26

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, only 2 left!

0

27

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

28

Honda 94001-03000-0S

NUT, HEX. (3MM)

$1.49

$

In Stock, Qty 7

0

29

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0920

JET, MAIN (#92)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0950

JET, MAIN (#95)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0980

JET, MAIN (#98)

$12.99

$

Usually ships in 3-6 days

0

32

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$22.99

$

Usually ships in 3-6 days

0
