Ex450 (54AKF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Engine Accessories Parts Diagram

Ex Series Compact Tractor

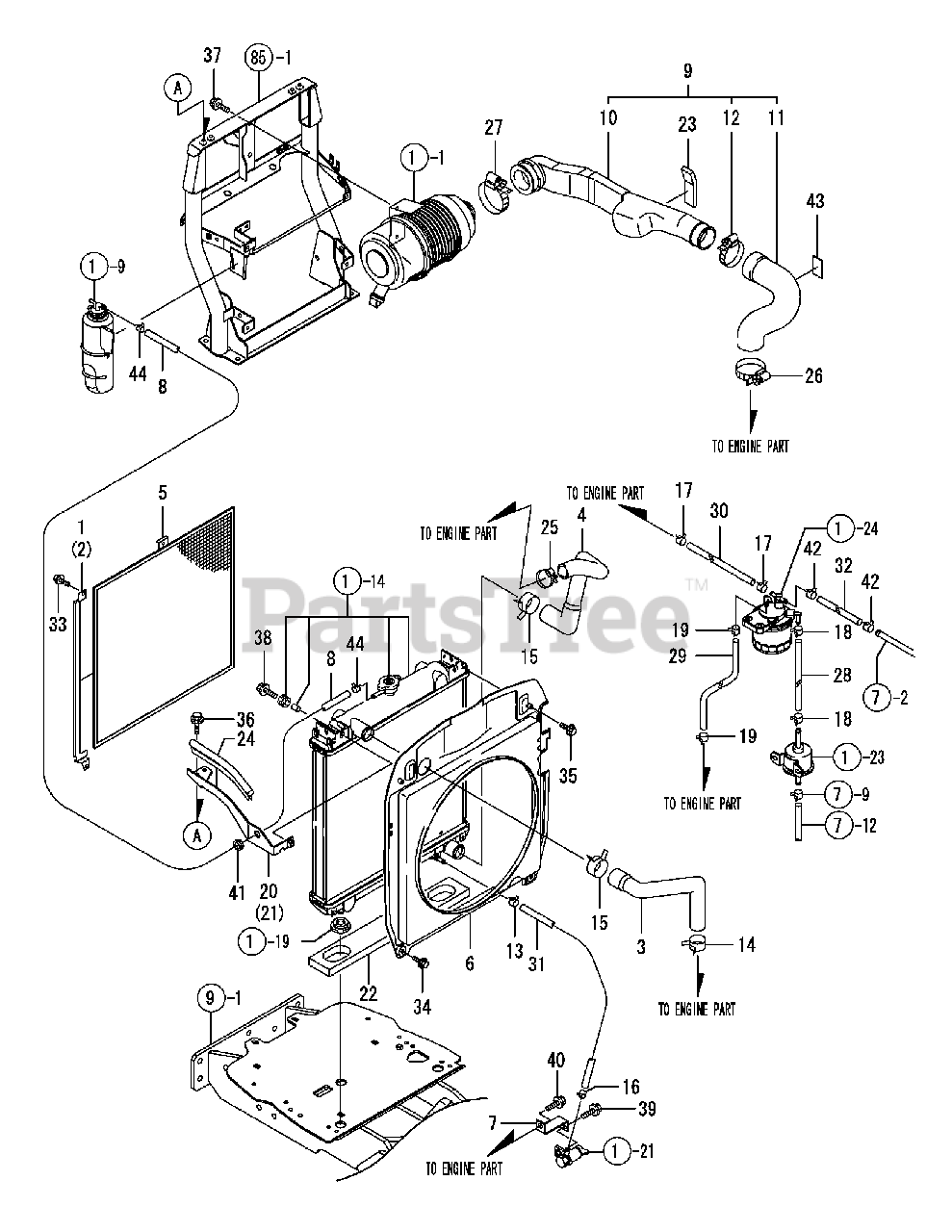

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet CY-1A7260-01030

RAIL, RADIATOR L

$

$

Not available

2

Cub Cadet CY-1A7260-01040

RAIL, RADIATOR R

$

$

Not available

3

Cub Cadet CY-1A7260-01210

PIPE, COOLING WATER

$

$

Not available

4

Cub Cadet CY-1A7260-01220

PIPE, COOLING WATER

$

$

Not available

5

Cub Cadet CY-1A7780-01250

SCREEN,RADIATOR

$

$

Not available

6

Cub Cadet CY-1A8170-01300

SHROUD M ASSY, FAN

$

$

Not available

7

Cub Cadet CY-198242-02310

STAY,DRAIN

$

$

Not available

8

Cub Cadet CY-1A7260-03151

PIPE,OVERFLOW(500

$

$

Not available

9

Cub Cadet CY-1A7310-06200

PIPE ASSY, INTAKE

$

$

Not available

10

Cub Cadet CY-1A7300-06210

PIPE SUB-ASSY, A

$

$

Not available

11

Cub Cadet CY-1A7270-06220

HOSE, INTAKE B

$

$

Not available

12

Cub Cadet CY-129956-12160

CLAMP

$

$

Not available

13

Cub Cadet CY-106990-44660

CLIP,HOSE

$

$

Not available

14

Cub Cadet CY-175022-49730

CRIP 31, HOSE

$

$

Not available

15

Cub Cadet CY-175022-49750

CLIP 37, HOSE

$

$

Not available

16

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

17

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

18

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

19

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

20

Cub Cadet CY-1A7270-60211

STAY ASSY, L.H.

$

$

Not available

21

Cub Cadet CY-1A7270-60221

STAY ASSY, R.H.

$

$

Not available

22

Cub Cadet CY-1A7260-60860

URETHANE, RADIATOR

$

$

Not available

23

Cub Cadet CY-1A7260-60880

URETHANE, HOSE

$

$

Not available

24

Cub Cadet CY-198146-63660

STRIP 250,WEATHER

$

$

Not available

25

Cub Cadet CY-23000-035000

CLAMP 35

$

$

Not available

26

Cub Cadet CY-23000-070000

CLAMP 70

$

$

Not available

27

Cub Cadet CY-23000-080000

CLAMP 80
(Superseded to CY-Y23000080000)

$

$

Not available

28

Cub Cadet CY-23980-730180

HOSE, 7.3 X 180

$

$

Not available

29

Cub Cadet CY-23980-730350

FUEL PIPE 7.3X350

$

$

Not available

30

Cub Cadet CY-23980-730400

FUEL PIPE 7.3X400

$

$

Not available

31

Cub Cadet CY-23980-730400

FUEL PIPE 7.3X400

$

$

Not available

32

Cub Cadet CY-23980-730680

HOSE 7.3X680,BRAIDED

$

$

Not available

33

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

34

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

35

Cub Cadet CY-26106-060252

BOLT M 6X 25 PLATED

$

$

Not available

36

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

37

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

38

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

39

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

40

Cub Cadet CY-26106-100162

BOLT M10X 16 PLATED

$

$

Not available

41

Cub Cadet CY-194180-01240

GROMMET 13
(Superseded to CY-1E6140-75260)

$

$

Not available

42

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

43

Cub Cadet CY-198093-84810

SEAL, FENDER

$

$

Not available

44

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

Note:1-1 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 1

$

$

Not available

Note:1-9 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 9

$

$

Not available

Note:1-14 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 14

$

$

Not available

Note:1-19 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 19

$

$

Not available

Note:1-21 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 21

$

$

Not available

Note:1-23 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 23

$

$

Not available

Note:1-24 Refers to ENGINE-ACCESSORIES MOUNTING, Ref No. 24

$

$

Not available

Note:7-2 Refers to FUEL PIPE, Ref No. 2

$

$

Not available

Note:7-9 Refers to FUEL PIPE, Ref No. 9

$

$

Not available

Note:7-12 Refers to FUEL PIPE, Ref No. 12

$

$

Not available

Note:9-1 Refers to FRONT BRACKET, Ref No. 1

$

$

Not available

Note:85-1 Refers to FRONT FRAME, Ref No. 1

$

$

Not available
