Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Three Point Link Parts Diagram

Ex Series Compact Tractor

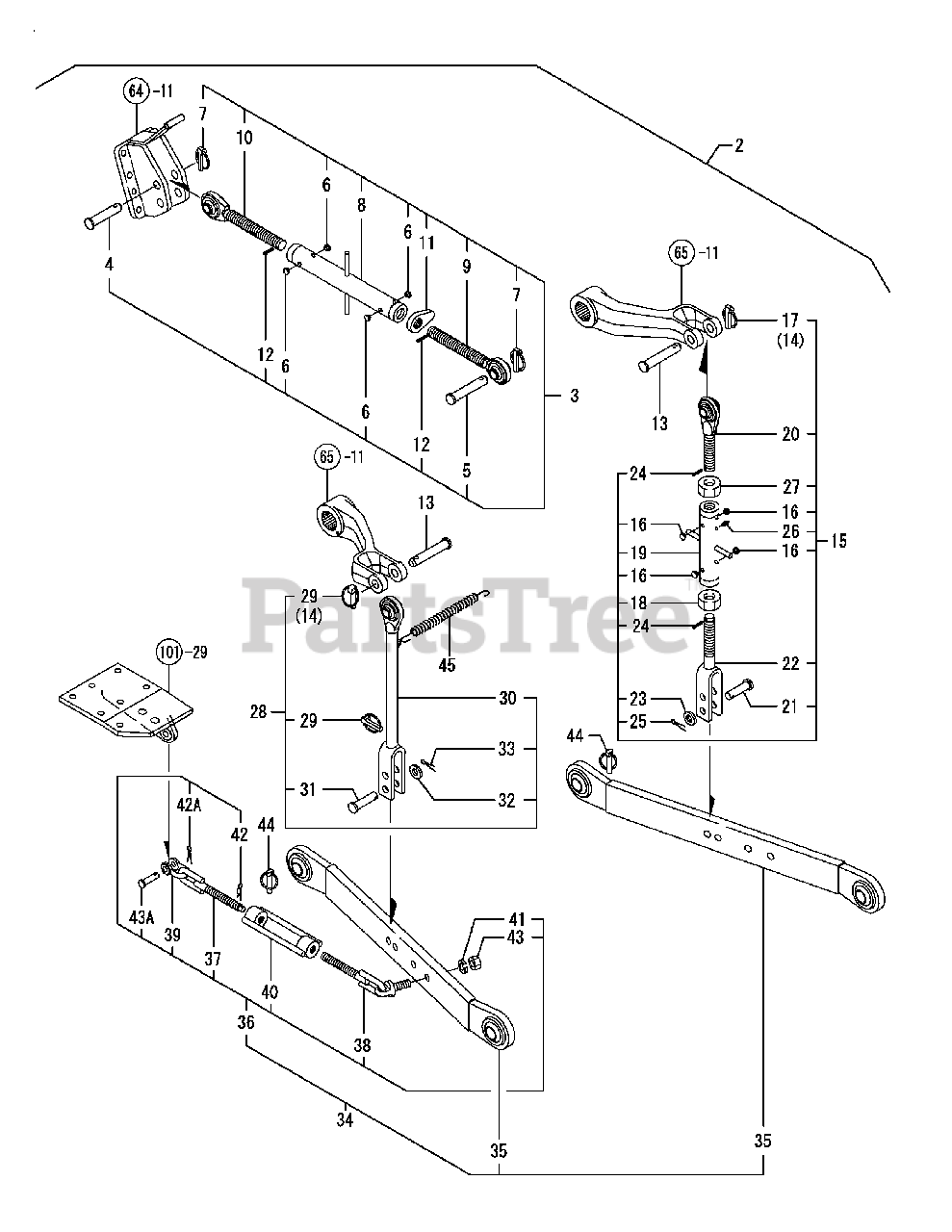

Three Point Link Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

$

$

Not available

4

$

$

Not available

$

$

Not available

$

$

Not available

7

Cub Cadet CY-1A7335-71410

LYNCH PIN ASSLY

$

$

Not available

8

$

$

Not available

$

$

Not available

$

$

Not available

11

$

$

Not available

12

Cub Cadet CY-22351-050025

SPRING PIN 5X25

$

$

Not available

$

$

Not available

14

Cub Cadet CY-1A7335-71410

LYNCH PIN ASSLY

$

$

Not available

15

Cub Cadet CY-1A8170-72100

ADJ.LIFT ROD ASSY

$

$

Not available

$

$

Not available

17

Cub Cadet CY-1A7335-71410

LYNCH PIN ASSLY

$

$

Not available

18

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

22

Cub Cadet CY-1A8170-72800

LOWER END ASSY

$

$

Not available

23

Cub Cadet CY-22137-160000

WASHER 16,POLISHED

$

$

Not available

24

Cub Cadet CY-22351-050022

SPRING PIN 5X22

$

$

Not available

25

Cub Cadet CY-22417-320320

COTTER PIN 3.2X32

$

$

Not available

26

Cub Cadet CY-24761-060000

NIPPLE MT6X1, GREASE
(Superseded to CY-24764-060000)

$

$

Not available

27

Cub Cadet CY-26756-240002

LOCK NUT M24 PLATED

$

$

Not available

28

Cub Cadet CY-1A8170-72500

FIXED LIFT ROD ASSY

$

$

Not available

29

Cub Cadet CY-1A7335-71410

LYNCH PIN ASSLY

$

$

Not available

30

Cub Cadet CY-1A8170-72530

LINK ASSY, LIFT L.H.

$

$

Not available

$

$

Not available

32

Cub Cadet CY-22137-160000

WASHER 16,POLISHED

$

$

Not available

33

Cub Cadet CY-22417-320320

COTTER PIN 3.2X32

$

$

Not available

34

Cub Cadet CY-1A8170-73400

LINK & CHAIN KIT,

$

$

Not available

35

Cub Cadet CY-1A8170-73100

LOWER LINK ASSY

$

$

Not available

36

Cub Cadet CY-1A8170-74500

CHAIN STAB, ASSY

$

$

Not available

37

Cub Cadet CY-1A8170-74510

CHAIN ASSY,FRONT

$

$

Not available

38

Cub Cadet CY-1A8170-74550

CHAIN ASSY,REAR

$

$

Not available

$

$

Not available

40

$

$

Not available

41

Cub Cadet CY-22217-160000

SPRING WASHER 16

$

$

Not available

42

$

$

Not available

42A

$

$

Not available

$

$

Not available

43A

$

$

Not available

44

Cub Cadet CY-794130-71410

PIN ASSY,BALL SOCKET

$

$

Not available

$

$

Not available

Note:55-1 Refers tp REAR HOUSING, Ref No. 1

$

$

Not available

Note:64-11 Refers to HYDRAULIC CYLINDER CASE, Ref No. 11

$

$

Not available

Note:65-11 Refers to PISTON & LIFT CRANK, Ref No. 11

$

$

Not available

Note:101-29 Refers to SAFETY FRAME, Ref No. 29

$

$

Not available
