Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Switches Parts Diagram

Ex Series Compact Tractor

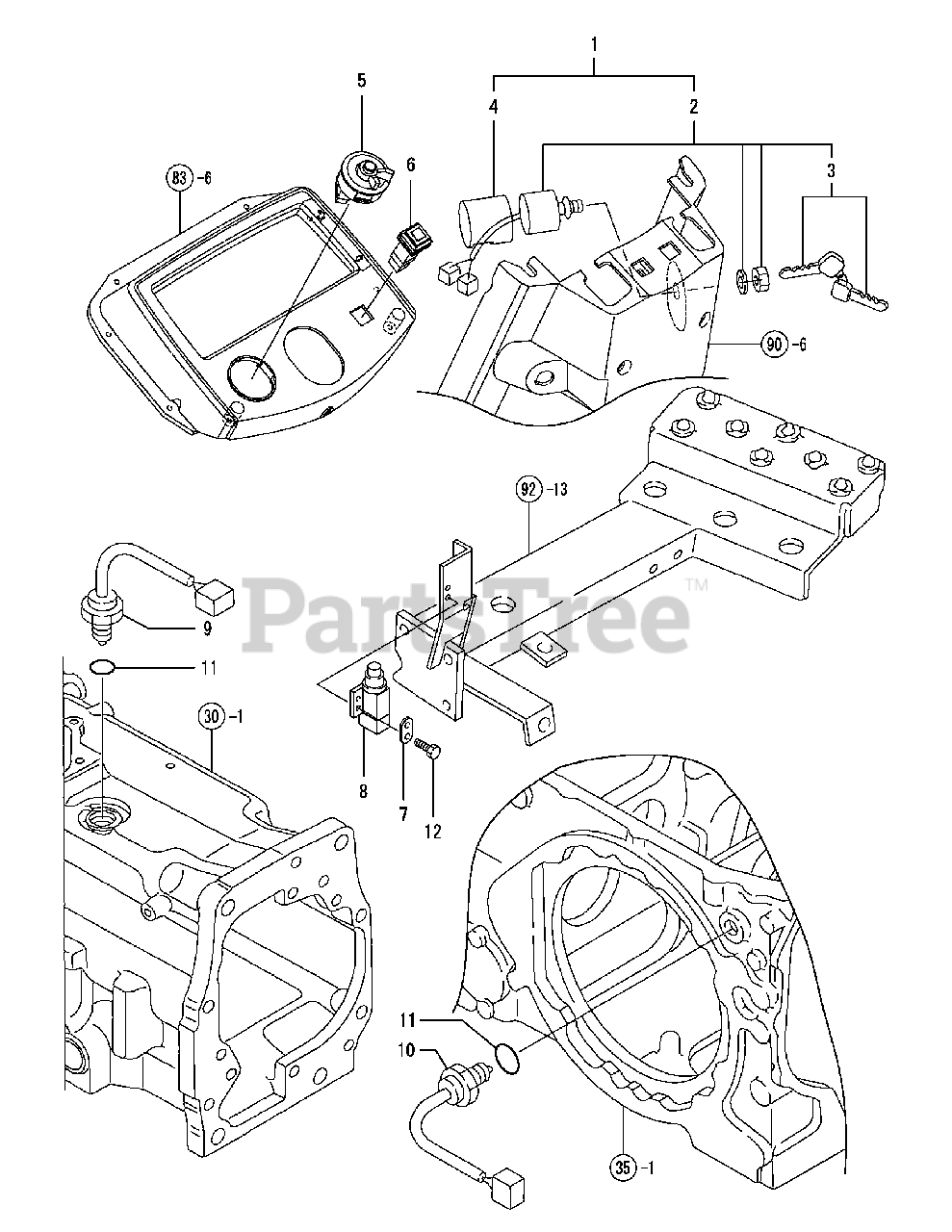

Switches Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet CY-1A7880-52110

SWITCH ASSY, STARTER

$

$

Not available

$

$

Not available

4

Cub Cadet CY-1A7780-52150

COVER,START SW

$

$

Not available

5

Cub Cadet CY-1A7335-52110

COMBINATION SW

$

$

Not available

$

$

Not available

7

$

$

Not available

8

Cub Cadet CY-1A7335-52150

STOP LAMP SW,DELTA

$

$

Not available

9

Cub Cadet CY-194464-52190

SWITCH, SAFETY START

$

$

Not available

10

Cub Cadet CY-194464-52190

SWITCH, SAFETY START

$

$

Not available

11

Cub Cadet CY-24311-000180

O-RING 1A P-18.0

$

$

Not available

$

$

Not available

Note:30-1 Refers to CLUTCH HOUSING, Ref No.1

$

$

Not available

Note:35-1 Refers to TRANSMISSION CASE, Ref No. 1

$

$

Not available

Note:83-6 Refers to METER, Ref No. 6

$

$

Not available

Note:92-13 Refers to STEP, Ref No. 13

$

$

Not available
