Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor PTO Change Parts Diagram

Ex Series Compact Tractor

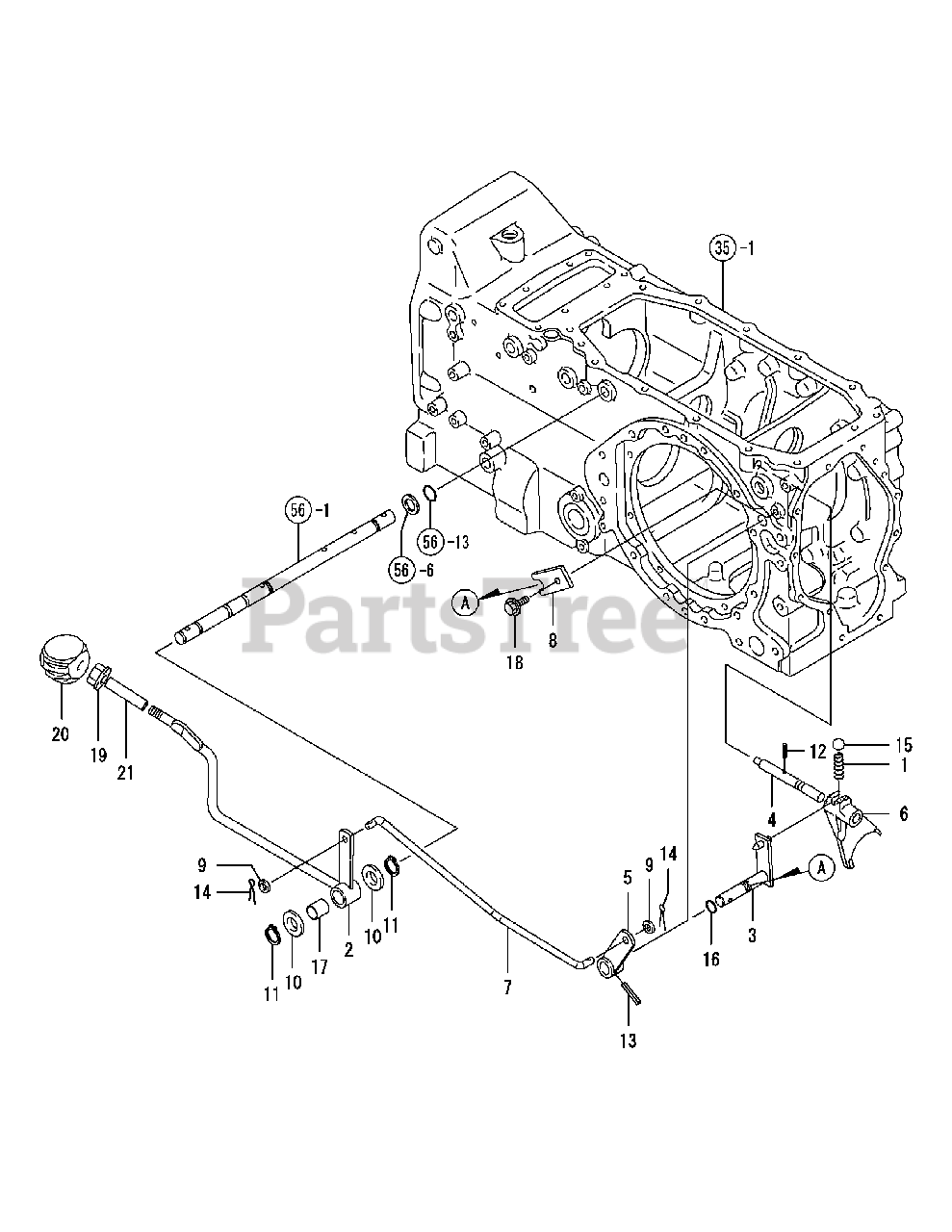

PTO Change Parts Diagram

  • Title

1

Cub Cadet CY-194680-27540

SPRING, FORK LOCK

$

$

Not available

2

Cub Cadet CY-198242278301

LEVER,PTO

$

$

Not available

3

Cub Cadet CY-198240-27841

ARM,PTO SHIFT

$

$

Not available

4

Cub Cadet CY-198240-27880

SHAFT, P.T.O FORK

$

$

Not available

5

Cub Cadet CY-198240278901

ARM, P.T.O CHANGE

$

$

Not available

6

Cub Cadet CY-198240-27950

FORK, P.T.O SHIFT

$

$

Not available

7

Cub Cadet CY-198240279611

ROD,PTO

$

$

Not available

8

Cub Cadet CY-198220-27990

PLATE

$

$

Not available

9

Cub Cadet CY-22137-100000

WASHER 10,POLISHED

$

$

Not available

10

Cub Cadet CY-22137-200000

WASHER 20,POLISHED

$

$

Not available

11

Cub Cadet CY-22242-000200

CIRCLIP 20

$

$

Not available

12

Cub Cadet CY-22351-060025

SPRING PIN 6X25

$

$

Not available

13

Cub Cadet CY-22351-060032

SPRING PIN 6X32

$

$

Not available

14

Cub Cadet CY-22417-250200

COTTER PIN 2.5X20

$

$

Currently unavailable

15

Cub Cadet CY-24190-080001

BALL 1/4, STEEL

$

$

Not available

16

Cub Cadet CY-24311-000125

O-RING 1A P-12.5

$

$

Not available

17

Cub Cadet CY-24550-020250

BUSH 20*25

$

$

Not available

18

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

19

Cub Cadet CY-194990-22150

NUT W/WASHER 10

$

$

Not available

20

Cub Cadet CY-198220-27290

KNOB

$

$

Not available

21

Cub Cadet CY-23065-160080

HOSE, 16 X 80

$

$

Not available

Note:35-1 Refers to TRANSMISSION CASE, Ref No. 1

$

$

Not available
