Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Hydraulic Line Parts Diagram

Ex Series Compact Tractor

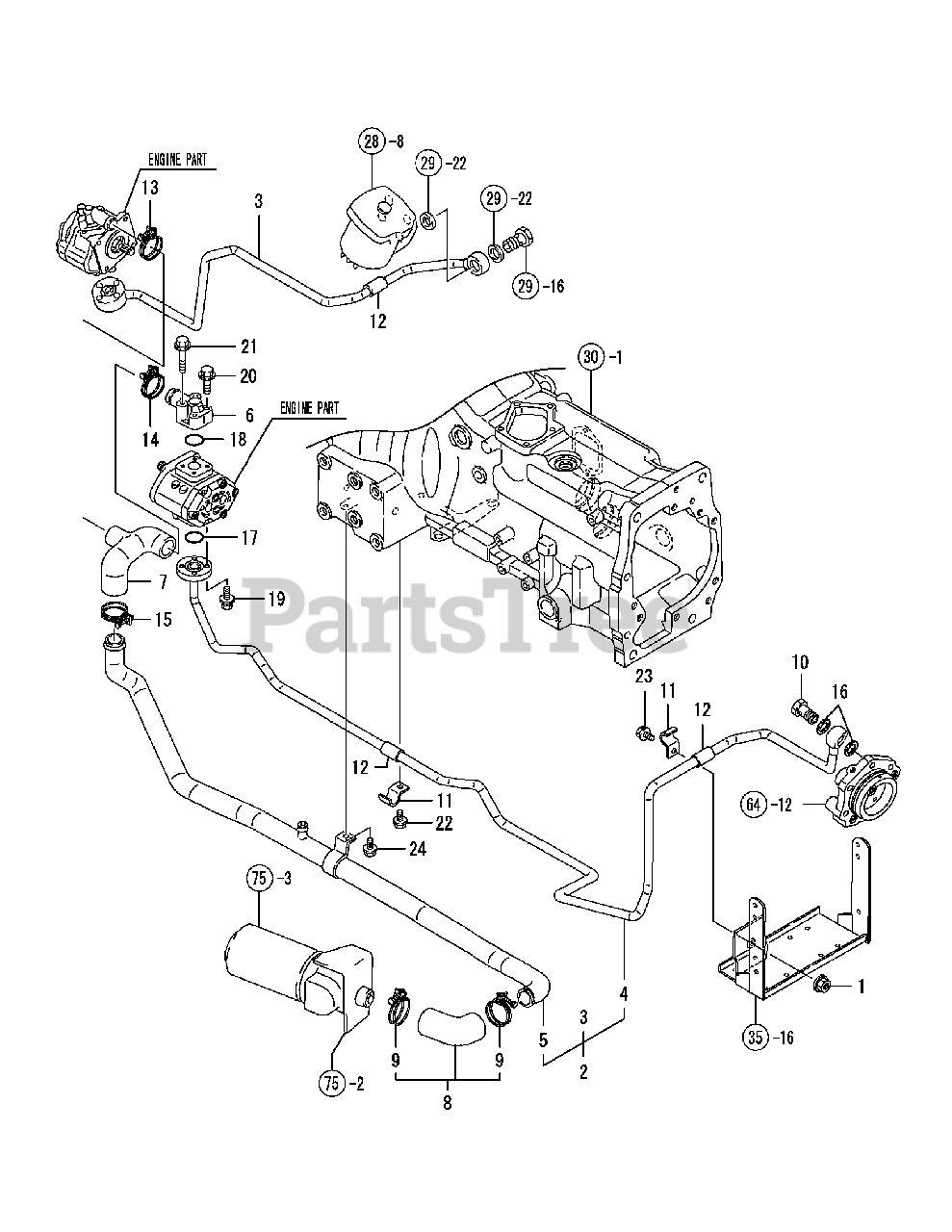

Hydraulic Line Parts Diagram

  • Title

1

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

2

Cub Cadet CY-1A8170-48080

PIPE KIT,KO

$

$

Not available

3

Cub Cadet CY-198320177201

PIPE

$

$

Not available

4

Cub Cadet CY-1A8170-48100

LINE, PRESSURE

$

$

Not available

5

Cub Cadet CY-1A8170-48150

LINE, SUCTION

$

$

Not available

6

Cub Cadet CY-198240-48140

FLANGE

$

$

Not available

7

Cub Cadet CY-198320-48220

RUBBER PIPE

$

$

Not available

8

Cub Cadet CY-198240-48500

HOSE ASSY,SUCTION

$

$

Not available

9

Cub Cadet CY-23010-048000

CLAMP 48

$

$

Not available

10

Cub Cadet CY-198361-48750

CONNECTOR BOLT ASSY

$

$

Not available

11

Cub Cadet CY-198240-48830

CLAMP

$

$

Not available

12

Cub Cadet CY-198240-48850

CUSSION

$

$

Not available

13

Cub Cadet CY-23010-035000

CLAMP 35

$

$

Not available

14

Cub Cadet CY-23010-040000

CLAMP 40

$

$

Not available

15

Cub Cadet CY-23010-046000

CLAMP 46

$

$

Not available

16

Cub Cadet CY-23414-200026

GASKET 20

$

$

Not available

17

Cub Cadet CY-24321-000250

O-RING 1A G-25.0

$

$

Not available

18

Cub Cadet CY-24341-000250

O-RING 1A S-25.0

$

$

Not available

19

Cub Cadet CY-26018-060252

BOLT M 6X 25

$

$

Not available

20

Cub Cadet CY-26106-060402

BOLT M 6X 40 PLATED

$

$

Not available

21

Cub Cadet CY-26106-060502

BOLT M 6X 50 PLATED

$

$

Not available

22

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

23

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

24

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

Note:28-8 Refers to PST VALVE, Ref No. 8

$

$

Not available

Note:29-16 Refers to PST STEERING, Ref No. 16

$

$

Not available

Note:29-22 Refers to PST STEERING, Ref No. 22

$

$

Not available

Note:30-1 Refers to CLUTCH HOUSING, Ref No.1

$

$

Not available

Note:35-16 Refers to TRANSMISSION CASE, Ref No. 16

$

$

Not available

Note:64-12 Refers to HYDRAULIC CYLINDER CASE, Ref No. 12

$

$

Not available

Note:75-2 Refers to HYDRAULIC FILTER, Ref No. 2

$

$

Not available

Note:75-3 Refers to HYDRAULIC FILTER, Ref No. 3

$

$

Not available
