Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Hydraulic Filter Parts Diagram

Ex Series Compact Tractor

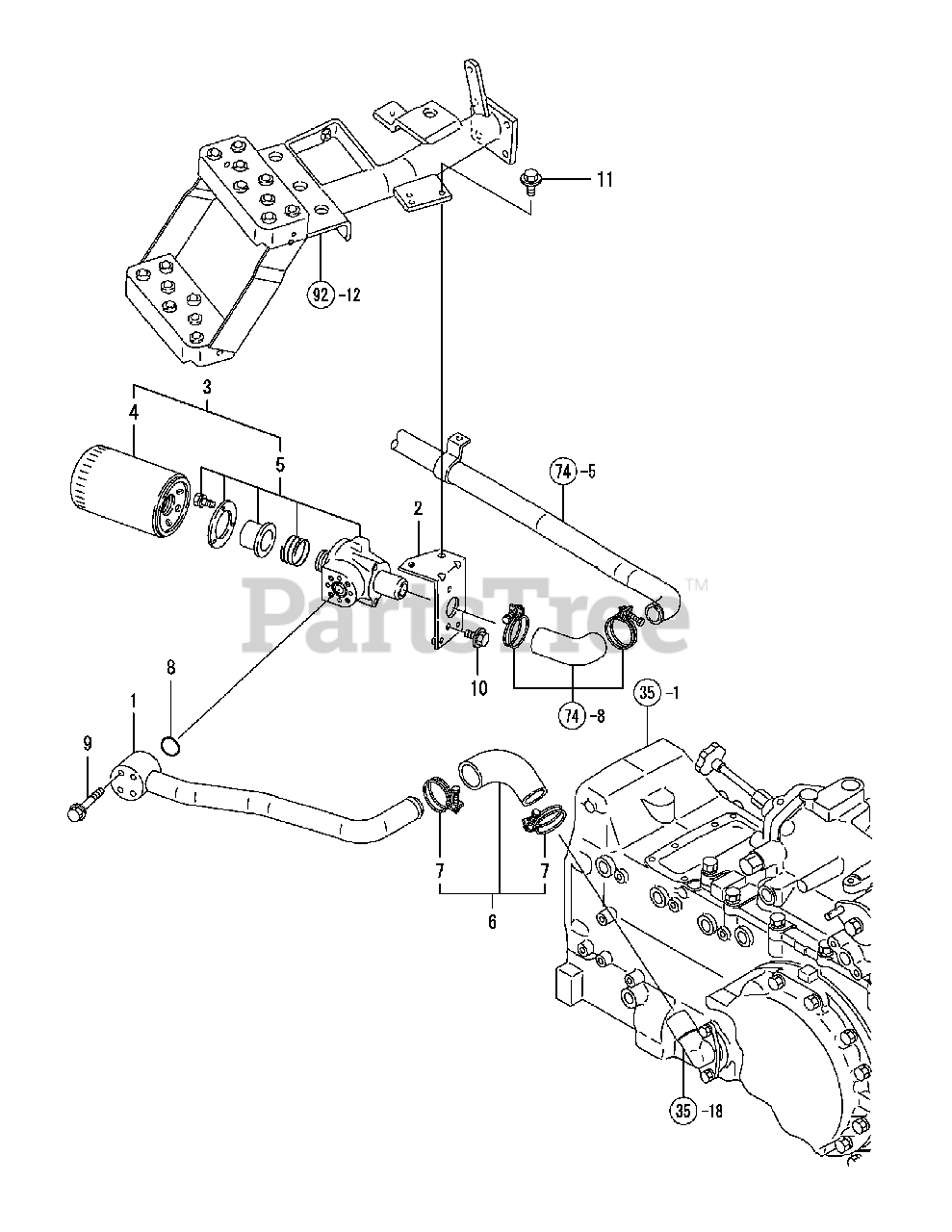

Hydraulic Filter Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet CY-198240-48380

BRACKET, STRAINER

$

$

Not available

3

Cub Cadet CY-1A8160-48400

OIL FILTER ASSY

$

$

Not available

$

$

Not available

5

Cub Cadet CY-194555-48350

COVER ASSY, FITER
(Superseded to CY-194464-48500)

$

$

Not available

6

Cub Cadet CY-198240-48500

HOSE ASSY,SUCTION

$

$

Not available

$

$

Not available

8

Cub Cadet CY-24321-000250

O-RING 1A G-25.0

$

$

Not available

9

Cub Cadet CY-26106-060602

BOLT M 6X 60 PLATED
(Superseded to YA-26106-060602)

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

11

Cub Cadet CY-26106-080202

BOLT M 8X 20 PLATED

$

$

Not available

Note:35-1 Refers to TRANSMISSION CASE, Ref No. 1

$

$

Not available

Note:35-18 Refers to TRANSMISSION CASE, Ref No. 18

$

$

Not available

Note:74-5 Refers to HYDRAULIC LINE, Ref No. 5

$

$

Not available

Note:74-8 Refers to HYDRAULIC LINE, Ref No. 8

$

$

Not available

Note:92-12 Refers to STEP, Ref No. 12

$

$

Not available
