Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Front Ring Gear Parts Diagram

Ex Series Compact Tractor

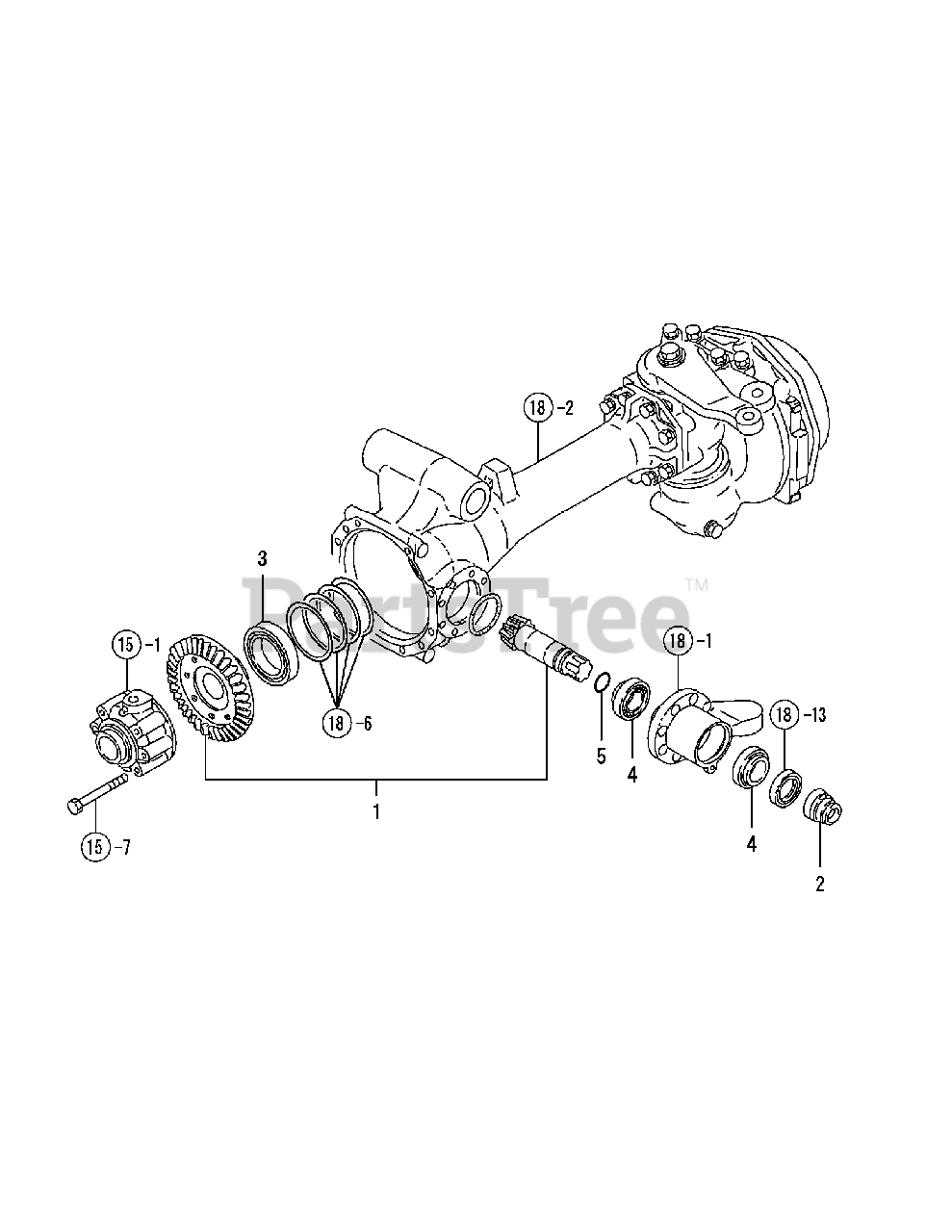

Front Ring Gear Parts Diagram

  • Title
1

Cub Cadet CY-198251-13100

GEAR ASSY, RING

$

$

Not available

2

Cub Cadet CY-1A7780-13670

SPACER, SEAL DRIVE

$

$

Not available

3

$

$

Not available

4

Cub Cadet CY-24141-320070

ROLLER BEARING

$

$

Not available

5

Cub Cadet CY-24341-000315

O-RING 1A S-31.5

$

$

Not available

Note:15-1 Refers to DIFFERENTIAL GEAR, Ref No. 1

$

$

Not available

Note:15-7 Refers to DIFFERENTIAL GEAR, Ref No. 7

$

$

Not available

Note:18-1 Refers to FRONT AXLE HOUSING, Ref No. 1

$

$

Not available

Note:18-2 Refers to FRONT AXLE HOUSING, Ref No. 2

$

$

Not available

Note:18-6 Refers to FRONT AXLE HOUSING, Ref No. 6

$

$

Not available

Note:18-13 Refers to FRONT AXLE HOUSING, Ref No. 13

$

$

Not available
