Ex450 (54AJF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Engine Cooling Water System Parts Diagram

Ex Series Compact Tractor

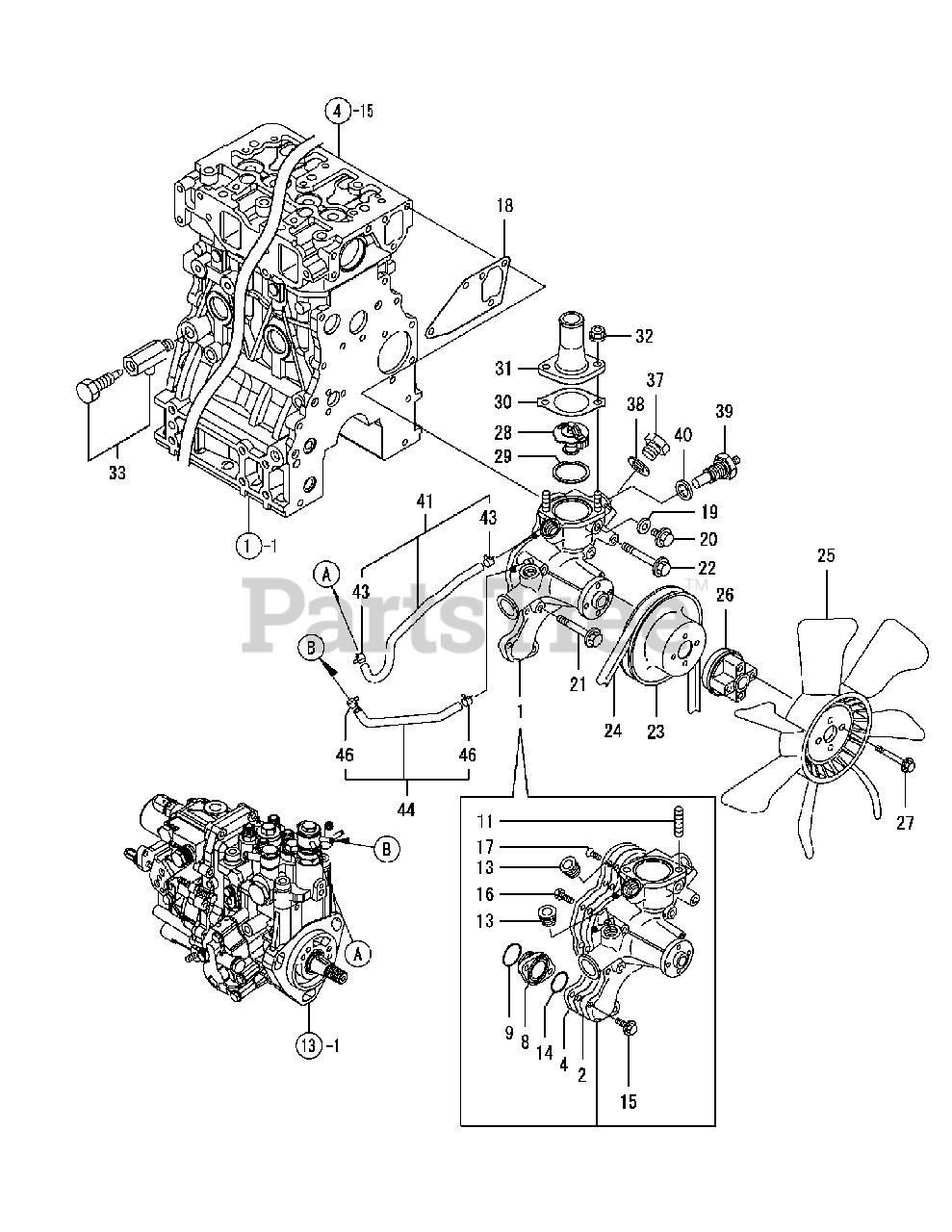

Engine Cooling Water System Parts Diagram

  • Title

1

Cub Cadet CY-129659-42040

PUMP ASSY, WATER

$

$

Not available

2

Cub Cadet CY-129150-42059

PACKING

$

$

Not available

4

Cub Cadet CY-129263-42120

PLATE

$

$

Not available

8

Cub Cadet CY-129150-42301

FLAGNE, C. W. PUMP
(Superseded to CY-129150-42300)

$

$

Not available

9

Cub Cadet CY-129054-42320

O-RING

$

$

Not available

11

Cub Cadet CY-129555-44750

STUD

$

$

Not available

13

Cub Cadet CY-129916-49740

PLUG, R03

$

$

Not available

14

Cub Cadet CY-24358-240310

O-RING, 5 24031

$

$

Not available

15

Cub Cadet CY-26106-060202

BOLT M 6X 20 PLATED

$

$

Not available

16

Cub Cadet CY-26116-060162

BOLT 6X16

$

$

Not available

17

Cub Cadet CY-26577-060142

SCREW M 6X 14
(Superseded to CY-26577-060152)

$

$

Not available

18

Cub Cadet CY-129486-42050

GASKET, WATER PUMP

$

$

Not available

19

Cub Cadet CY-23414-080000

GASKET 8, ROUND

$

$

Not available

20

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

21

Cub Cadet CY-26106-080552

BOLT M 8X 55 PLATED

$

$

Not available

22

Cub Cadet CY-26106-080602

BOLT M 8X 60 PLATED

$

$

Not available

23

Cub Cadet CY-129550-42350

V-PULLEY, WATER PUMP

$

$

Not available

24

Cub Cadet CY-129052-42290

V-BELT

$

$

Not available

25

Cub Cadet CY-129655-44740

FAN, COOLING

$

$

Not available

26

Cub Cadet CY-129030-44760

SPACER, FAN

$

$

Not available

27

Cub Cadet CY-26106-060502

BOLT M 6X 50 PLATED

$

$

Not available

28

Cub Cadet CY-129155-49801

THERMOSTAT

$

$

Not available

29

Cub Cadet CY-129150-49811

GASKET, THERMOSTAT

$

$

Not available

30

Cub Cadet CY-129795-49551

GASKET, COVER

$

$

Not available

31

Cub Cadet CY-129350-49560

COVER, THERMOSTAT

$

$

Not available

32

Cub Cadet CY-26306-080002

NUT, M8

$

$

Not available

33

Cub Cadet CY-119620-49290

COCK ASSY

$

$

Not available

37

Cub Cadet CY-121450-42450

PLUG M16

$

$

Not available

38

Cub Cadet CY-124465-44950

GASKET, 16

$

$

Not available

39

Cub Cadet CY-124250-49351

THERMOMETER

$

$

Not available

40

Cub Cadet CY-129150-49360

GASKET 10

$

$

Not available

41

Cub Cadet CY-129263-49610

PIPE, WATER A

$

$

Not available

43

Cub Cadet CY-124722-59050

CLIP, HOSE

$

$

Not available

44

Cub Cadet CY-129263-49620

PIPE, WATER B

$

$

Not available

46

Cub Cadet CY-124722-59050

CLIP, HOSE

$

$

Not available

Note:1-1 Refers to ENGINE CYLINDER BLOCK, Ref No.1

$

$

Not available

Note:4-15 Refers to ENGINE CYLINDER HEAD & BONNET, Ref No.15

$

$

Not available

Note:13-1 Refers to ENGINE FUEL INJECTION PUMP, Ref No.1

$

$

Not available
