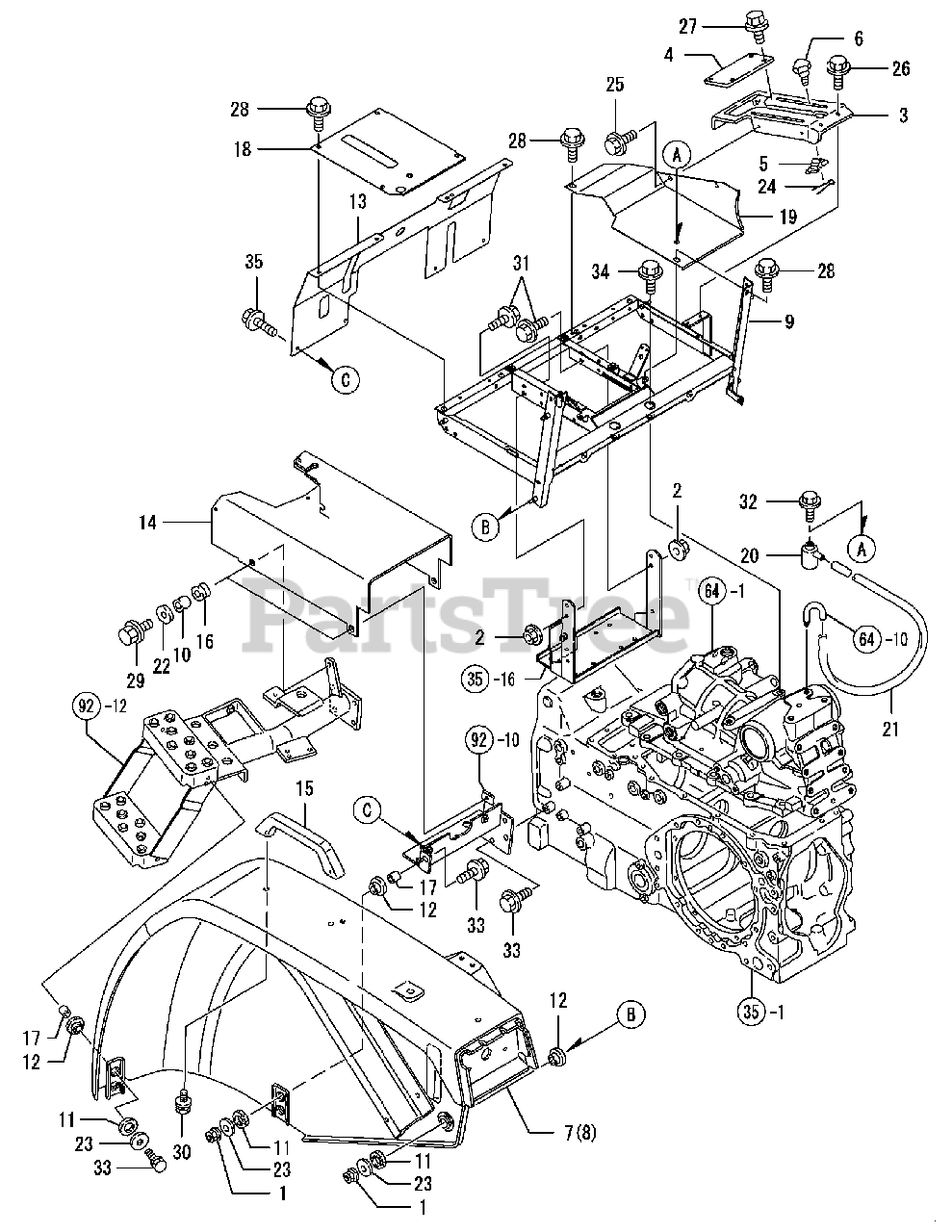

Ex450 (54AIF7QT727) - Cub Cadet Yanmar Ex Series Compact Tractor Fender Parts Diagram

Ex Series Compact Tractor

Fender Parts Diagram

  • Title
1

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

2

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

3

Cub Cadet CY-198240477102

GUIDE,LEVER HYD

$

$

Not available

4

Cub Cadet CY-198240477302

COVER, LEVER GUIDE A

$

$

Not available

$

$

Not available

$

$

Not available

7

Cub Cadet CY-1A8170-62010

FENDER (M ASSY, L.H.

$

$

Not available

8

Cub Cadet CY-1A8170-62020

FENDER (M ASSY, L.H.

$

$

Not available

9

Cub Cadet CY-1A8170-62150

BRACKET, FENDER

$

$

Not available

$

$

Not available

11

Cub Cadet CY-198220-62260

CUSHION A, RUBBER

$

$

Not available

12

Cub Cadet CY-198220-62270

CUSHION B, RUBBER

$

$

Not available

13

Cub Cadet CY-1A7780622801

COVER, HOUSING

$

$

Not available

14

Cub Cadet CY-1A8170-62400

COVER,CLUTCH(M CMP

$

$

Not available

15

$

$

Not available

$

$

Not available

17

Cub Cadet CY-198220-62920

COLLAR, CUSHION

$

$

Not available

$

$

Not available

19

Cub Cadet CY-1A7780631001

COVER, DUST R.H.

$

$

Not available

20

$

$

Not available

21

Cub Cadet CY-194640-63560

PIPE, AIR BREATHER

$

$

Not available

$

$

Not available

$

$

Not available

24

Cub Cadet CY-22417-200160

COTTER PIN 2.0X16

$

$

Not available

25

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

26

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

27

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

28

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

29

Cub Cadet CY-26106-060202

BOLT M 6X 20 PLATED

$

$

Not available

30

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

31

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

32

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

33

Cub Cadet CY-26106-080302

BOLT M 8X 30 PLATED

$

$

Not available

34

Cub Cadet CY-26106-100252

BOLT M10X 25 PLATED

$

$

Not available

35

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

Note:35-1 Refers to TRANSMISSION CASE, Ref No. 1

$

$

Not available

Note:35-16 Refers to TRANSMISSION CASE, Ref No. 16

$

$

Not available

Note:64-1 Refers to HYDRAULIC CYLINDER CASE, Ref No. 1

$

$

Not available

Note:64-10 Refers to HYDRAULIC CYLINDER CASE, Ref No. 10

$

$

Not available

Note:92-10 Refers to STEP, Ref No. 10

$

$

Not available

Note:92-12 Refers to STEP, Ref No. 12

$

$

Not available
