Ex450 (54AIF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Reverse Lever Parts Diagram

Ex Series Compact Tractor

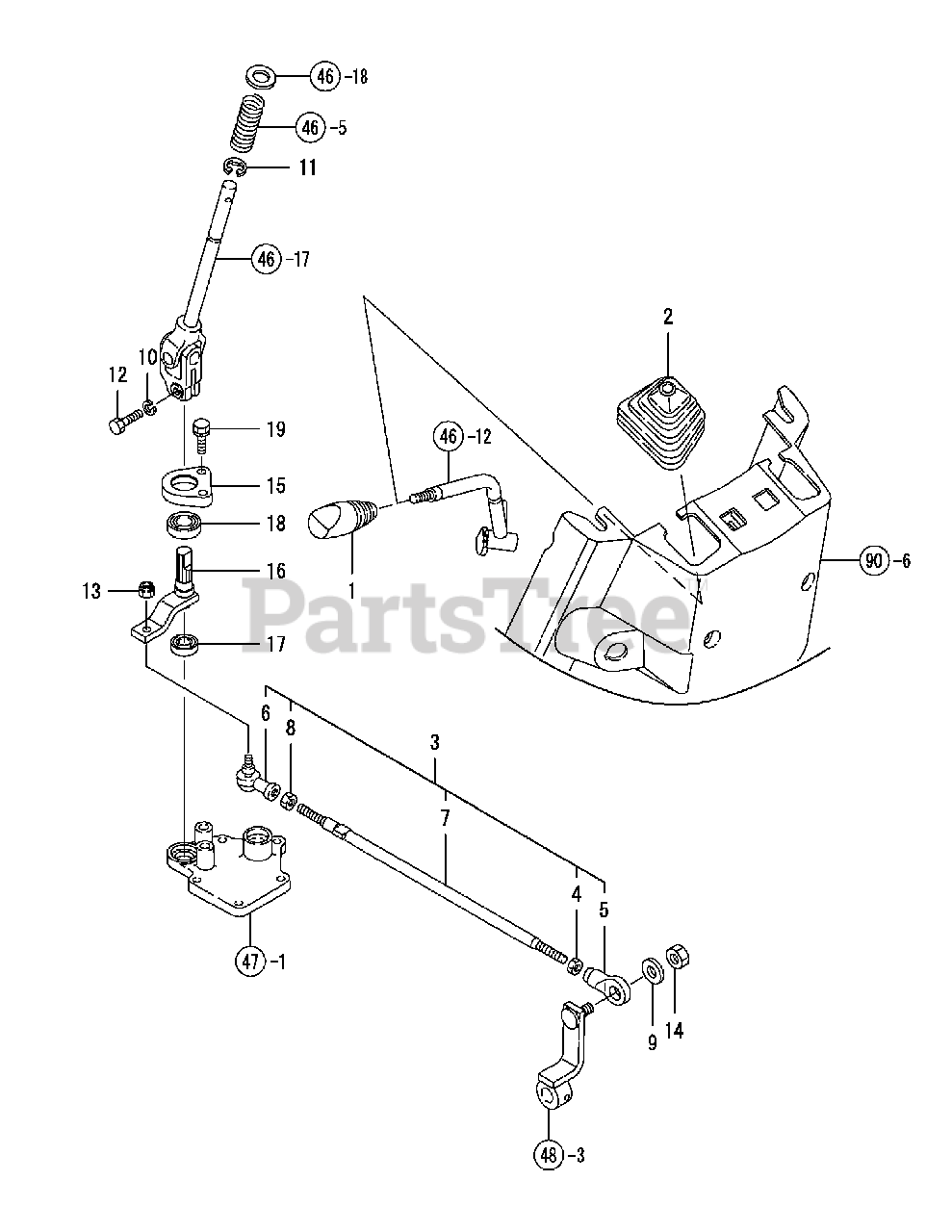

Reverse Lever Parts Diagram

  • Title

1

Cub Cadet CY-198200-18350

KNOB;REVERSER LEVER

$

$

Not available

2

Cub Cadet CY-198133-27350

BOOT

$

$

Not available

3

Cub Cadet CY-198133-27900

ROD COMP.,REVERSER

$

$

Not available

4

Cub Cadet CY-194990-20170

NUT W/WASHER 8

$

$

Not available

5

Cub Cadet CY-194170-27180

ROD,END (R)

$

$

Not available

6

Cub Cadet CY-194820-27370

END (L), ROD

$

$

Not available

7

Cub Cadet CY-198133-27910

SPEED CHANGE ROD

$

$

Not available

8

Cub Cadet CY-26716-080002

NUT M 8

$

$

Not available

9

Cub Cadet CY-22137-100000

WASHER 10,POLISHED

$

$

Not available

10

Cub Cadet CY-22217-080000

WASHER, 8

$

$

Not available

11

Cub Cadet CY-22272-000120

CIRCLIP E-12

$

$

Not available

12

Cub Cadet CY-26116-080252

BOLT M 8X 25 PLATED

$

$

Not available

13

Cub Cadet CY-26346-080002

U-NUT M 8 PLATED

$

$

Not available

14

Cub Cadet CY-26756-100002

LOCK NUT M10 PLATED

$

$

Not available

15

Cub Cadet CY-1A7780271601

HOLDER, REVERSER ARM

$

$

Not available

16

Cub Cadet CY-1A7780272101

ARM, LINK REVERSER

$

$

Not available

17

Cub Cadet CY-24104-060014

BALL BEARING 6001UU

$

$

Not available

18

Cub Cadet CY-24104-060034

BALL BEARING

$

$

Not available

19

Cub Cadet CY-26013-080252

BOLT M 8X 25

$

$

Not available

Note:46-5 Refers to MAIN CHANGE LEVER, Ref No. 5

$

$

Not available

Note:46-12 Refers to MAIN CHANGE LEVER, Ref No. 12

$

$

Not available

Note:46-17 Refers to MAIN CHANGE LEVER, Ref No. 17

$

$

Not available

Note:46-18 Refers to MAIN CHANGE LEVER, Ref No. 18

$

$

Not available

Note:47-1 Refers to MAIN CHANGE, Ref No. 1

$

$

Not available

Note:48-3 Refers to REVERSER CHANGE, Ref No. 3

$

$

Not available

Note:90-6 Refers to DASHBOARD, Ref No. 6

$

$

Not available
