Ex450 (54AIF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Relief Valve Parts Diagram

Ex Series Compact Tractor

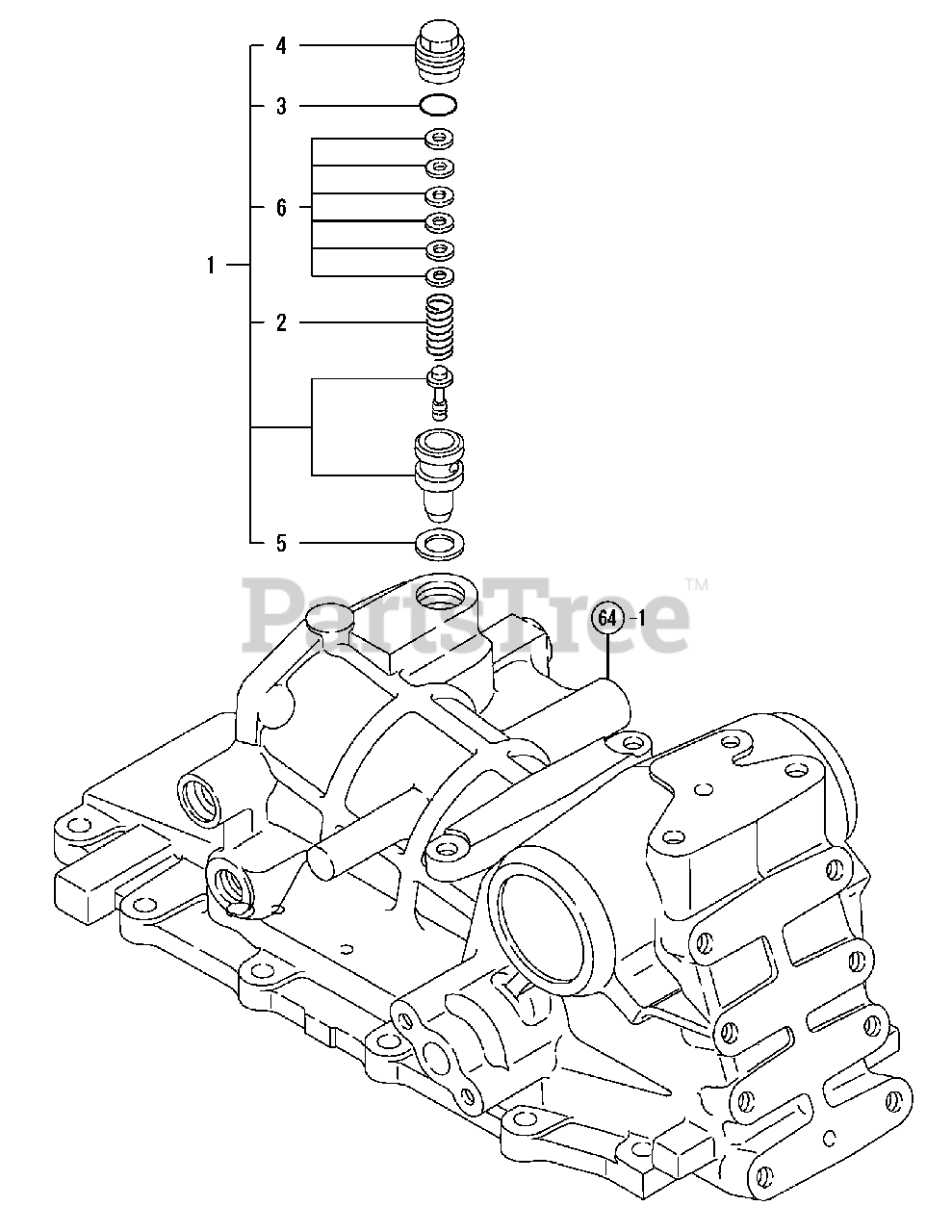

Relief Valve Parts Diagram

  • Title

1

Cub Cadet CY-198133-45600

VALVE ASSY, RELIEF

$

$

Not available

2

Cub Cadet CY-194180-45620

SPRING

$

$

Not available

3

Cub Cadet CY-194450-45630

O-RING 2.5X23

$

$

Not available

4

Cub Cadet CY-194450456401

PLUG, RELIEF VALVE

$

$

Not available

5

Cub Cadet CY-194450-45650

GASKET 20X27.8X2

$

$

Not available

6

Cub Cadet CY-794464-45660

SHIM SET

$

$

Not available

Note:64-1 Refers to HYDRAULIC CYLINDER CASE, Ref No. 1

$

$

Not available
