Ex450 (54AIF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Brake Pedal Parts Diagram

Ex Series Compact Tractor

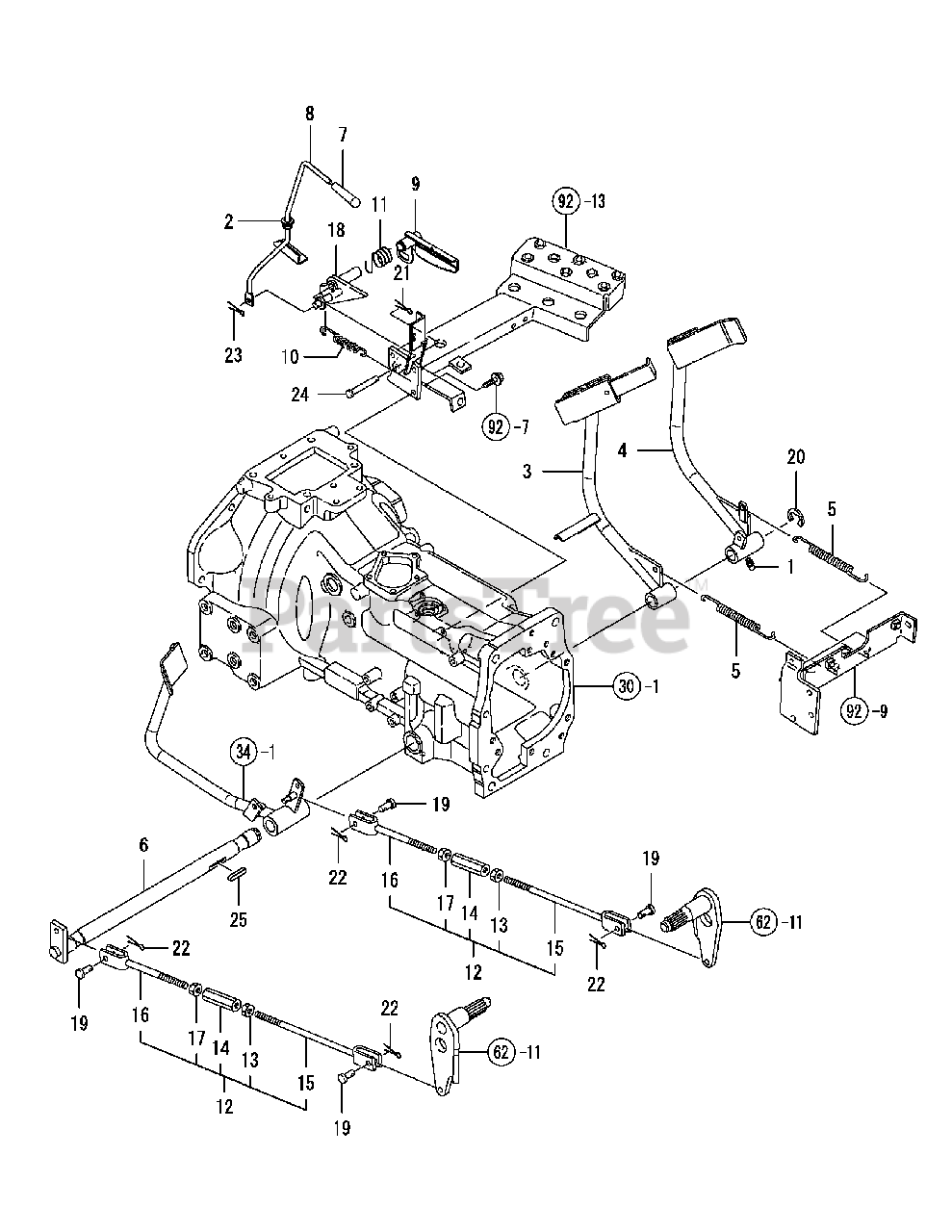

Brake Pedal Parts Diagram

  • Title

1

Cub Cadet CY-24761-010000

NIPPLE M6F, GREASE

$

$

Not available

2

Cub Cadet CY-198241-28330

GUIDE,FRONT SHIFT

$

$

Not available

3

Cub Cadet CY-198240374202

PEDAL L.H., BRAKE

$

$

Not available

4

Cub Cadet CY-198240374702

PEDAL R.H., BRAKE

$

$

Not available

5

Cub Cadet CY-198240-37510

SPRING, RETURN

$

$

Not available

6

Cub Cadet CY-198240375501

SHAFT, BRAKE PEDAL

$

$

Not available

7

Cub Cadet CY-198253-37610

KNOB, PARKING

$

$

Not available

8

Cub Cadet CY-1A7780-37620

ROD,PARKING CMP

$

$

Not available

9

Cub Cadet CY-198254-37660

LEVER,PARKING BRAKE

$

$

Not available

10

Cub Cadet CY-198220-37700

SPRING

$

$

Not available

11

Cub Cadet CY-198220-37720

SPRING

$

$

Not available

12

Cub Cadet CY-794525-37000

ROD KIT,BRAKE

$

$

Not available

13

Cub Cadet CY-194150-22480

NUT M10

$

$

Not available

14

Cub Cadet CY-194130-37730

TURNBUCKLE M10X70
(Superseded to CY-19413037730U)

$

$

Not available

15

Cub Cadet CY-194310-37741

ROD, BRAKE

$

$

Not available

16

Cub Cadet CY-194134-37771

ROD, BRAKE

$

$

Not available

17

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

18

Cub Cadet CY-198240-37850

LEVER(B, PARKING

$

$

Not available

19

Cub Cadet CY-198220-37900

PIN 8X24

$

$

Not available

20

Cub Cadet CY-22272-000190

CIRCLIP E-19

$

$

Not available

21

Cub Cadet CY-22417-200300

COTTER PIN 2.0X30

$

$

Not available

22

Cub Cadet CY-22417-250300

COTTER PIN 2.5X30

$

$

Not available

23

Cub Cadet CY-22417-250300

COTTER PIN 2.5X30

$

$

Not available

24

Cub Cadet CY-22487-100700

PIN 10X 70

$

$

Not available

25

Cub Cadet CY-22512-070400

KEY 7X 40

$

$

Not available

Note:30-1 Refers to CLUTCH HOUSING, Ref No.1

$

$

Not available

Note:34-1 Refers to CLUTCH PEDAL, Ref No. 1

$

$

Not available

Note:62-11 Refers to BRAKE, Ref No. 11

$

$

Not available

Note:92-7 Refers to STEP, Ref No. 7

$

$

Not available

Note:92-9 Refers to STEP, Ref No. 9

$

$

Not available

Note:92-13 Refers to STEP, Ref No. 13

$

$

Not available
