Ex450 (54AHF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Wire Harness Parts Diagram

Ex Series Compact Tractor

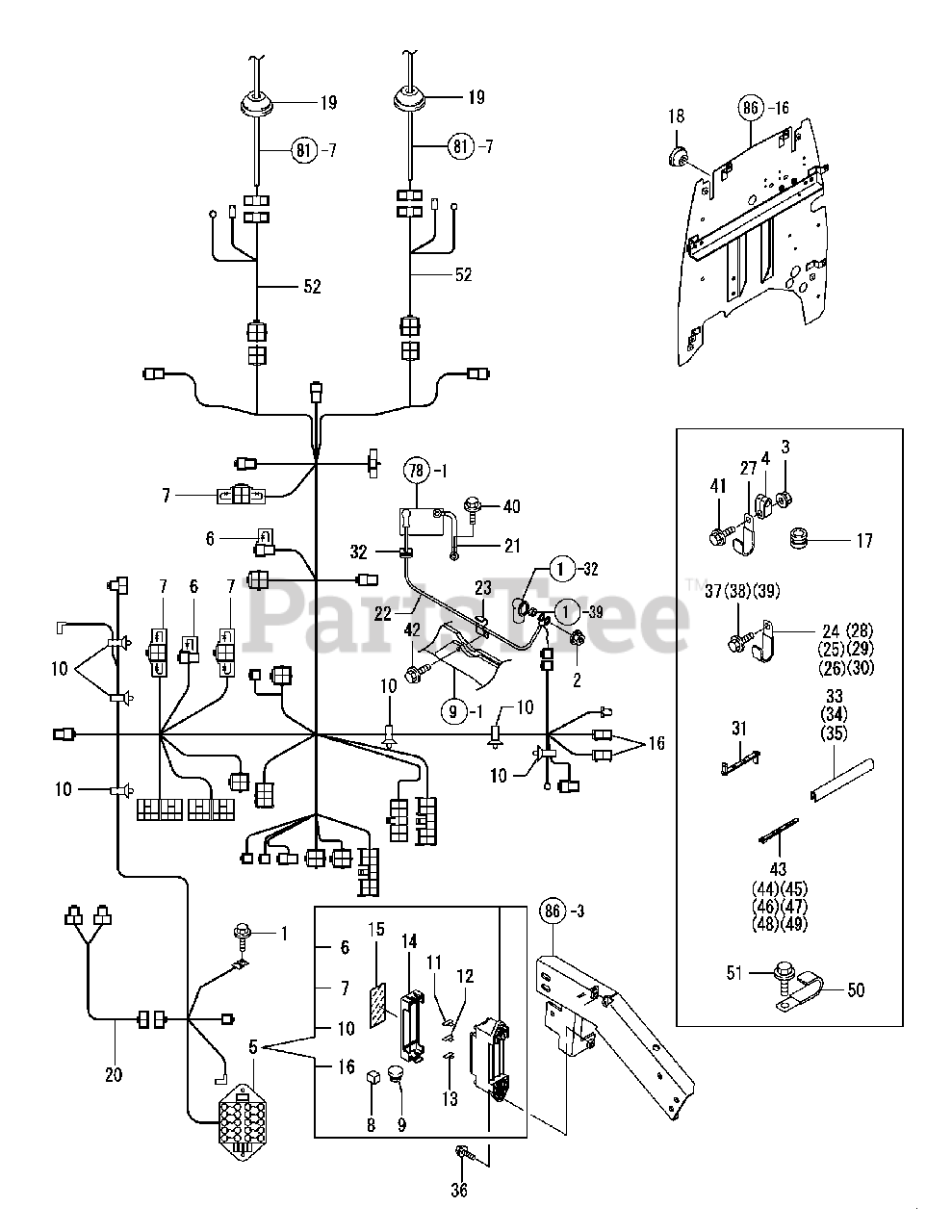

Wire Harness Parts Diagram

  • Title

1

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

2

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

3

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

4

Cub Cadet CY-1E8080-43850

CLAMP,CHAFF WIRE

$

$

Not available

5

Cub Cadet CY-1A8170-51100

WIRING HARNESS A CMP

$

$

Not available

6

Cub Cadet CY-1A7500-51130

DIODE, 3.0A

$

$

Not available

7

Cub Cadet CY-1A8160-51130

DIODE, 3.0AX2

$

$

Not available

8

Cub Cadet CY-194275-51160

COUPLER

$

$

Not available

9

Cub Cadet CY-194275-51170

PLUG

$

$

Not available

10

Cub Cadet CY-1A7500-51170

CLIP, HARNESS

$

$

Not available

11

Cub Cadet CY-198535-52110

FUSE

$

$

Not available

12

Cub Cadet CY-198535-52120

FUSE 10A

$

$

Not available

13

Cub Cadet CY-198535-52130

FUSE 15A

$

$

Not available

14

Cub Cadet CY-1A7531-52420

COVER, FUSE BOX

$

$

Not available

15

Cub Cadet CY-1A8170-65440

LABEL,FUSE

$

$

Not available

16

Cub Cadet CY-198153-51700

BLOW 79A,SLOW CMP
(Superseded to CY-198165-51160)

$

$

Not available

17

Cub Cadet CY-194170-51210

GROMMET 25
(Superseded to CY-198245-51210)

$

$

Not available

18

Cub Cadet CY-194275-51210

GROMMET 25
(Superseded to CY-198245-51210)

$

$

Not available

19

Cub Cadet CY-194275-51210

GROMMET 25
(Superseded to CY-198245-51210)

$

$

Not available

20

Cub Cadet CY-1A8160-51310

WIRING HARNESS,

$

$

Not available

21

Cub Cadet CY-198153-51420

CABLE,BATTERY EARTH

$

$

Not available

22

Cub Cadet CY-198071-51411

CABLE, BATTERY

$

$

Not available

23

Cub Cadet CY-198121-51430

CLAMP, B.CABLE

$

$

Not available

24

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

25

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

26

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

27

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

28

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

29

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

30

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

31

Cub Cadet CY-194250-51650

CLAMP 66

$

$

Not available

32

Cub Cadet CY-1A7260-51710

GROMMET, CABLE

$

$

Not available

33

Cub Cadet CY-1A7000-61490

TRIM, 120

$

$

Not available

34

Cub Cadet CY-1A7000-61490

TRIM, 120

$

$

Not available

35

Cub Cadet CY-198291-77870

COVER,HOSE PROTECTOR

$

$

Not available

36

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

37

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

38

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

39

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

40

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

41

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

42

Cub Cadet CY-26106-080352

BOLT M 8X 35 PLATED

$

$

Not available

43

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

44

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

45

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

46

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

47

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

48

Cub Cadet CY-29622-140001

BAND 140

$

$

Not available

49

Cub Cadet CY-29622-250001

BAND RF 250

$

$

Not available

50

Cub Cadet CY-194180-51640

CLAMP, WIRE HARNESS

$

$

Not available

51

Cub Cadet CY-26013-100162

BOLT M10X 16

$

$

Not available

52

Cub Cadet CY-1A8170-51130

WIRING HARNESS C CMP

$

$

Not available

Note:1-32 Refers to ENGINE ACCESSORIES MOUNTING, Ref No. 32

$

$

Not available

Note:1-39 Refers to ENGINE ACCESSORIES MOUNTING, Ref No. 39

$

$

Not available

Note:9-1 Refers to FRONT BRACKET, Ref No. 1

$

$

Not available

Note:78-1 Refers to BATTERY, Ref No. 1

$

$

Not available

Note:81-7 Refers to LAMPS, Ref No. 7

$

$

Not available

Note:86-3 Refers to FRAME,HOOD, Ref No. 3

$

$

Not available

Note:86-16 Refers to FRAME,HOOD, Ref No. 16

$

$

Not available
