Ex450 (54AHF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Engine Lubrication Oil System Parts Diagram

Ex Series Compact Tractor

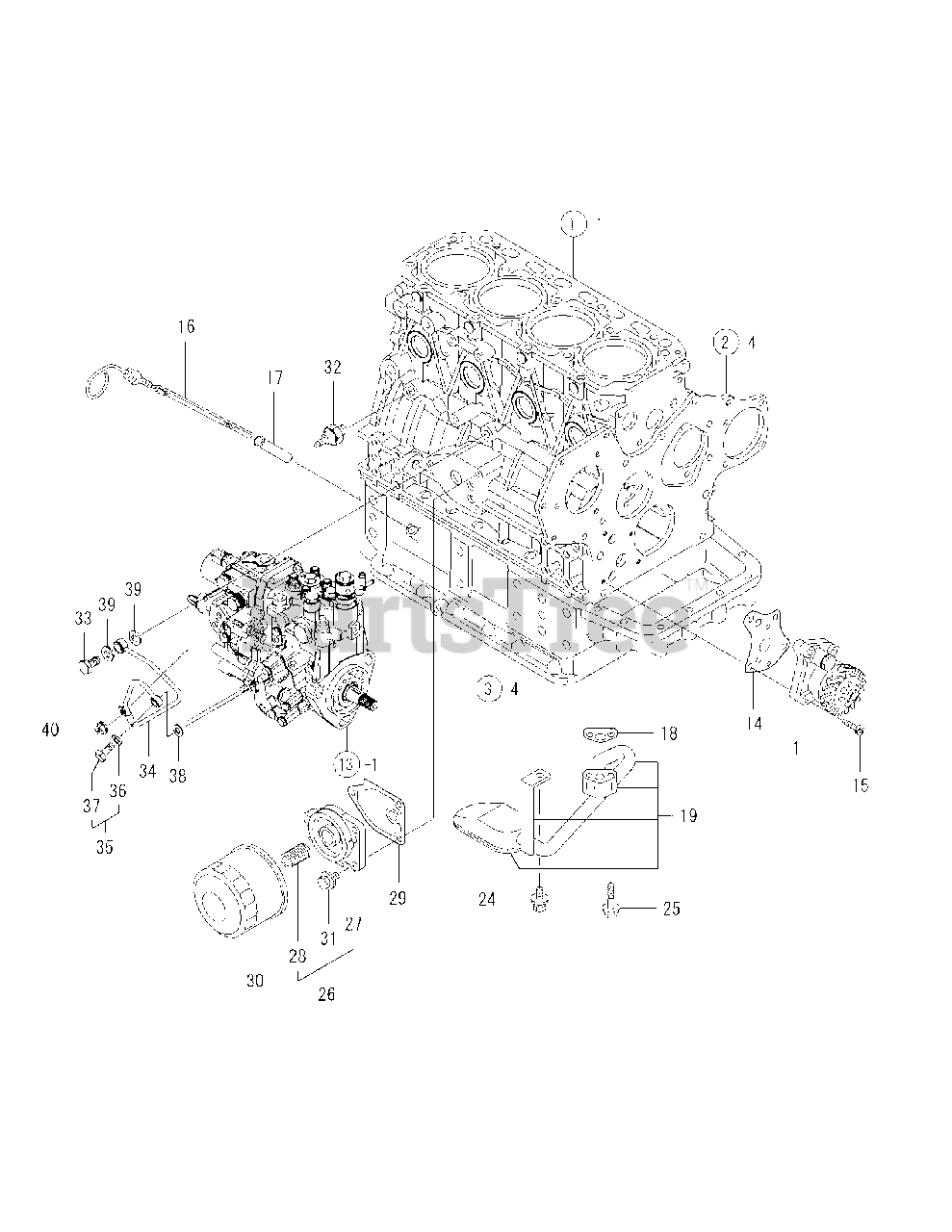

Engine Lubrication Oil System Parts Diagram

  • Title

1

Cub Cadet CY-129407-32000

PUMP ASSY, LUB.OIL

$

$

Not available

14

Cub Cadet CY-129150-32020

GASKET, PUMP

$

$

Not available

15

Cub Cadet CY-26450-060252

BOLT, M6X25

$

$

Not available

16

Cub Cadet CY-129457-34800

DIPSTICK, LUB.OIL

$

$

Not available

17

Cub Cadet CY-121520-34810

GUIDE, DIPSTICK
(Superseded to CY-129468-34810)

$

$

Not available

18

Cub Cadet CY-129150-35042

GASKET, PIPE

$

$

Not available

19

Cub Cadet CY-129550-35090

PIPE ASSY, OIL INLET

$

$

Not available

24

Cub Cadet CY-26014-080162

BOLT M 8X 16

$

$

Not available

25

Cub Cadet CY-26106-080352

BOLT M 8X 35 PLATED

$

$

Not available

26

Cub Cadet CY-119802-35100

BRACKET ASSY, FILTER

$

$

Not available

27

Cub Cadet CY-119802-35110

BRACKET, FILTER

$

$

Not available

28

Cub Cadet CY-129100-35140

STUD

$

$

Not available

29

Cub Cadet CY-129150-35111

GASKET, (NON-ASB.)

$

$

Not available

30

Cub Cadet CY-129150-35153

FILTER 80X80L

$

$

Not available

31

Cub Cadet CY-26106-080202

BOLT M 8X 20 PLATED

$

$

Not available

32

Cub Cadet CY-114250-39450

SWITCH, OIL PRESSURE

$

$

Not available

33

Cub Cadet CY-124160-39140

BOLT, JOINT M10

$

$

Not available

34

Cub Cadet CY-119802-39450

PIPE ASSY, LUB.OIL

$

$

Not available

35

Cub Cadet CY-129005-59830

BOLT ASSY, JOINT

$

$

Not available

36

Cub Cadet CY-22190-080002

SEAL WASHER 8S

$

$

Not available

37

Cub Cadet CY-23857-030000

JOINT BOLT 3

$

$

Not available

38

Cub Cadet CY-22190-080002

SEAL WASHER 8S

$

$

Not available

39

Cub Cadet CY-22190-100002

WASHER, 10

$

$

Not available

40

Cub Cadet CY-26366-060002

NUT M 6

$

$

Not available

Note:1-1 Refers to ENGINE CYLINDER BLOCK, Ref No.1

$

$

Not available

Note:2-4 Refers to ENGINE GEAR HOUSING, Ref No.4

$

$

Not available

Note:3-4 Refers to ENGINE MOUNTING FLANGE & OIL SUMP

$

$

Not available

Note:13-1 Refers to ENGINE FUEL INJECTION PUMP, Ref No.1

$

$

Not available
