Ex450 (54AHF7Q-727) - Cub Cadet Yanmar Ex Series Compact Tractor Engine Accessories Mounting Parts Diagram

Ex Series Compact Tractor

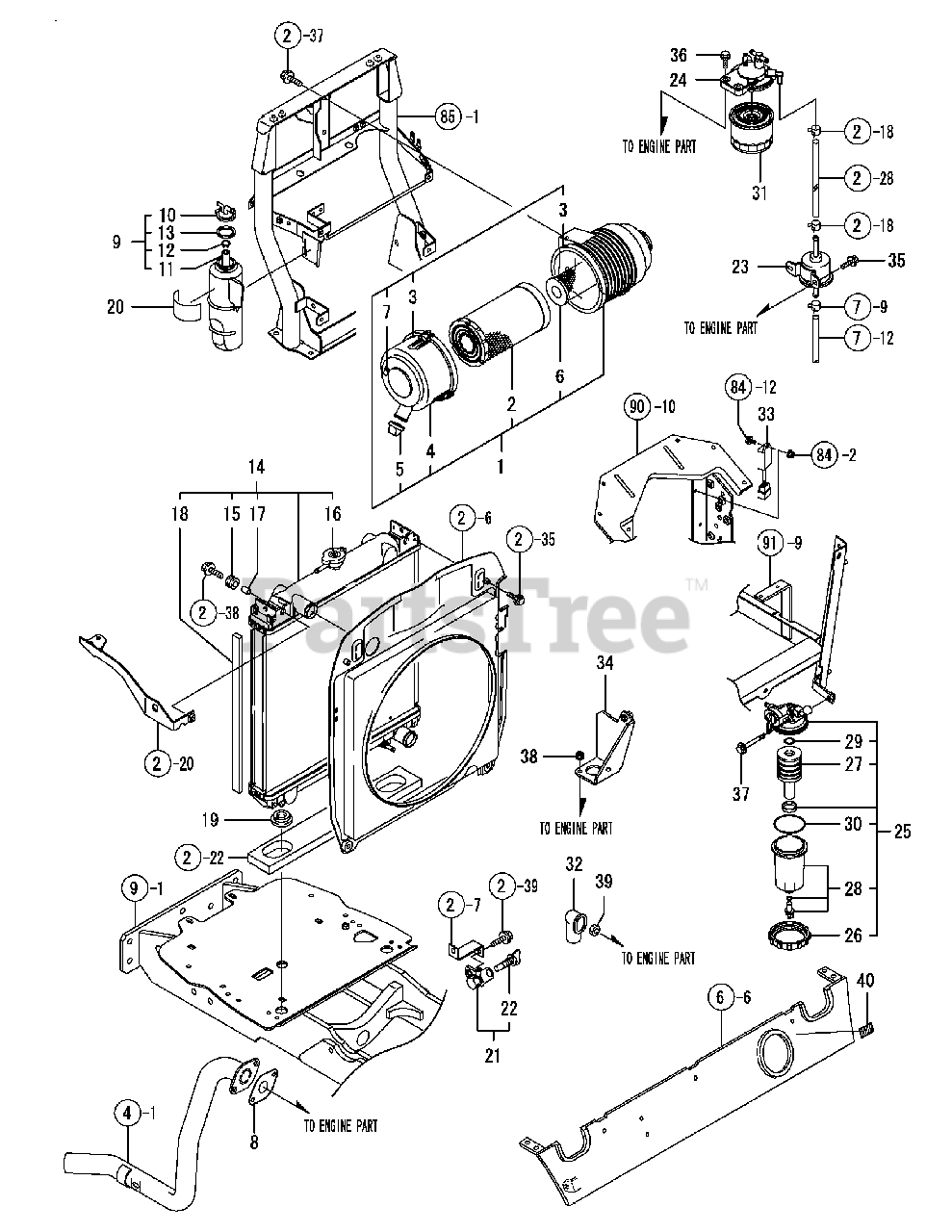

Engine Accessories Mounting Parts Diagram

  • Title

1

Cub Cadet CY-129659-12520

CLEANER ASSY, AIR

$

$

Not available

2

Cub Cadet CY-129906-12520

ELEMENT 6, CLEANER

$

$

Not available

3

Cub Cadet CY-129418-12530

MARK

$

$

Not available

4

Cub Cadet CY-129900-12530

COVER ASSY

$

$

Not available

5

Cub Cadet CY-119808-12540

VALVE, UNLOADER

$

$

Not available

6

Cub Cadet CY-119005-12571

ELEMENT ASSY,INNER

$

$

Not available

7

Cub Cadet CY-129612-12650

MARKING,(W)

$

$

Not available

8

Cub Cadet CY-129052-13550

GASKET,NOZZLE

$

$

Not available

9

Cub Cadet CY-129263-44510

TANK ASSY, SUB

$

$

Not available

10

Cub Cadet CY-121450-44531

CAP

$

$

Not available

11

Cub Cadet CY-23065-070180

PIPE 7X 180

$

$

Not available

12

Cub Cadet CY-124450-44560

CLAMP

$

$

Not available

13

Cub Cadet CY-121470-44581

GASKET

$

$

Not available

14

Cub Cadet CY-129659-44510

RADIATOR ASSY

$

$

Not available

15

Cub Cadet CY-129467-44580

MOUNT RUBBER

$

$

Not available

16

Cub Cadet CY-129107-44590

CAP, RADIATOR

$

$

Not available

17

Cub Cadet CY-129467-44590

COLLAR

$

$

Not available

18

Cub Cadet CY-129956-44730

SEAL, RADIATOR

$

$

Not available

19

Cub Cadet CY-119255-44660

RUBBER

$

$

Not available

20

Cub Cadet CY-172A38-03201

LABEL,SUB-TANK

$

$

Not available

21

Cub Cadet CY-129550-49101

PETCOCK ASSY, 2-WAY

$

$

Not available

22

Cub Cadet CY-129150-49081

PETCOCK, DRAIN

$

$

Not available

23

Cub Cadet CY-119225-52102

PUMP ASSY, FUEL FEED

$

$

Not available

24

Cub Cadet CY-129004-55612

BRACKET, FUEL FILTER

$

$

Not available

25

Cub Cadet CY-119802-55700

SEPARATOR ASSY

$

$

Not available

26

Cub Cadet CY-129100-55690

RING, RETAINING

$

$

Not available

27

Cub Cadet CY-119802-55710

ELEMENT, FUEL SEPARATOR

$

$

Not available

28

Cub Cadet CY-119802-55730

CUP ASSY

$

$

Not available

29

Cub Cadet CY-24311-000160

O-RING 1A P-16.0

$

$

Not available

30

Cub Cadet CY-24321-000650

O-RING 1A G-65.0

$

$

Not available

31

Cub Cadet CY-119802-55801

FILTER, FUEL

$

$

Not available

32

Cub Cadet CY-124550-77030

COVER, TERMINAL

$

$

Not available

33

Cub Cadet CY-129211-77920

TIMER, FUEL SOLENOID 1 SEC

$

$

Not available

34

Cub Cadet CY-129263-93100

LOCK, BONNET

$

$

Not available

35

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

36

Cub Cadet CY-26106-080302

BOLT M 8X 30 PLATED

$

$

Not available

37

Cub Cadet CY-26106-080702

BOLT M 8X 70 PLATED

$

$

Not available

38

Cub Cadet CY-26306-080002

NUT

$

$

Not available

39

Cub Cadet CY-26756-060002

LOCK NUT 6

$

$

Not available

40

Cub Cadet CY-114110-07760

LABEL, FUEL OIL

$

$

Not available

Note:2-6 Refers to ENGINE-ACCESSORIES, Ref No. 6

$

$

Not available

Note:2-7 Refers to ENGINE-ACCESSORIES, Ref No. 7

$

$

Not available

Note:2-18 Refers to ENGINE-ACCESSORIES, Ref No. 18

$

$

Not available

Note:2-20 Refers to ENGINE-ACCESSORIES, Ref No. 20

$

$

Not available

Note:2-22 Refers to ENGINE-ACCESSORIES, Ref No. 22

$

$

Not available

Note:2-28 Refers to ENGINE-ACCESSORIES, Ref No. 28

$

$

Not available

Note:2-37 Refers to ENGINE-ACCESSORIES, Ref No. 37

$

$

Not available

Note:2-35 Refers to ENGINE-ACCESSORIES, Ref No. 35

$

$

Not available

Note:2-39 Refers to ENGINE-ACCESSORIES, Ref No. 39

$

$

Not available

Note:4-1 Refers to EXHAUST, Ref No. 1

$

$

Not available

Note:6-6 Refers to TANK BRACKET, Ref No. 6

$

$

Not available

Note:7-9 Refers to FUEL PIPE, Ref No. 9

$

$

Not available

Note:7-12 Refers to FUEL PIPE, Ref No. 12

$

$

Not available

Note:9-1 Refers to FRONT BRACKET, Ref No. 1

$

$

Not available

Note:84-2 Refers to RELAY, Ref No. 2

$

$

Not available

Note:84-12 Refers to RELAY, Ref No. 12

$

$

Not available

Note:85-1 Refers to FRONT FRAME, Ref No. 1

$

$

Not available

Note:90-10 Refers to DASHBOARD, Ref No. 10

$

$

Not available

Note:91-9 Refers to FENDER, Ref No. 9

$

$

Not available
