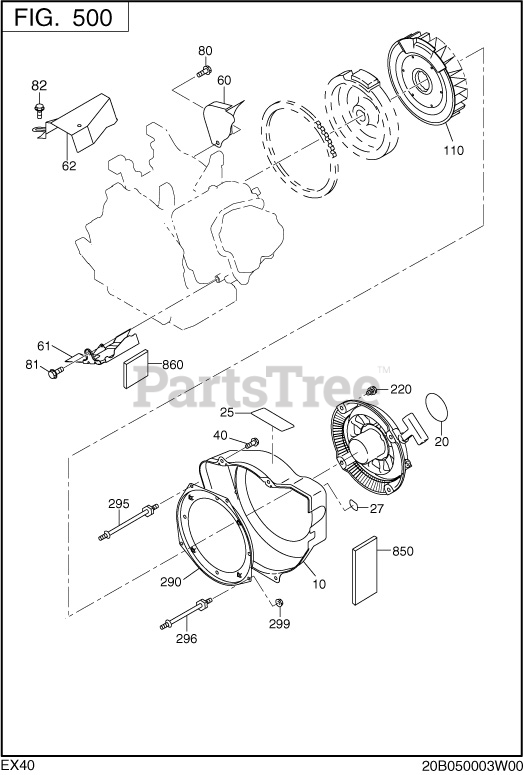

EX400DS5280 (EX40) - Subaru Robin Engine 500 Cooling & Starting Parts Diagram

Engine

500 Cooling & Starting Parts Diagram

  • Title

10

Subaru Robin 20B-51201-H1

BLOWER HOUSING CP

Note: Start Date: 12/26/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$97.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 073-20054-70

LABEL(TRADE MARK)

Note: Start Date: 2/2/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 60D.

$11.99

$

In Stock, only 1 left!

0

25

Subaru Robin 073-20051-81

LABEL(WARNING)

Note: Start Date: 2/19/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 42X104 ENGLISH.

$6.99

$

In Stock, only 1 left!

0

40

Subaru Robin 001-04061-60

FLANGE BOLT

Note: Start Date: 2/19/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX16L.

$1.49

$

Usually ships in 2-12 days

0

61

Subaru Robin 20B-52702-H1

BAFFLE 2(HEAD) CP

Note: Start Date: 12/26/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

0

62

Subaru Robin 20B-55001-03

DUCT(CASE)

Note: Start Date: 2/19/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$24.99

$

Usually ships in 2-12 days

0

81

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 2/2/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

82

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 2/2/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

110

Subaru Robin 20B-54101-H3

COOLING BLOWER

Note: Start Date: 10/28/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$49.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 013-00602-81

BOLT AND WASHER AY

Note: Start Date: 2/2/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14L W/SW.

$0.99

$

In Stock, only 4 left!

0

290

Subaru Robin 20B-55101-02

RECOIL BRACKET UN

Note: Start Date: 2/19/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$57.99

$

In Stock, only 1 left!

0

295

Subaru Robin 010-00804-40

BOLT

Note: Start Code: 8188. Start Date: 6/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.09

$

Usually ships in 2-12 days

0

295

Subaru Robin 010-00804-40

BOLT

Note: End Code: 8187. Start Date: 2/19/2009 0:00:00. Start Date: 5/31/2009 0:00:00.

$8.09

$

Usually ships in 2-12 days

0

296

Subaru Robin 010-00804-50

BOLT

Note: Start Date: 2/19/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.45

$

Usually ships in 2-12 days

0

299

Subaru Robin 002-38060-00

FLANGE NUT

Note: End Code: 8187. Start Date: 2/19/2009 0:00:00. Start Date: 5/31/2009 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 9

0

299

Subaru Robin 002-38060-00

FLANGE NUT

Note: Start Code: 8188. Start Date: 6/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 9

0

850

20B-59601-03

SPONGE

Note: Start Date: 12/26/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

860

20B-59602-03

SPONGE

Note: Start Date: 12/26/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available
