EX400DS5210 (EX40) - Subaru Robin Engine 4100 Governor Parts Diagram

Engine

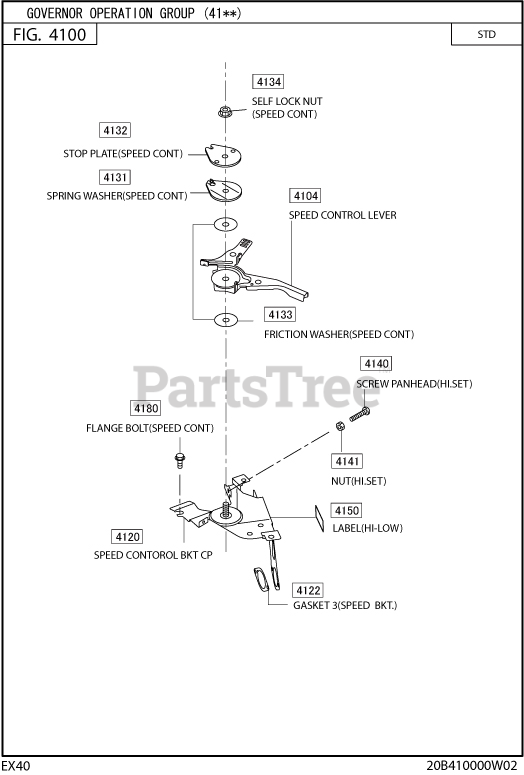

4100 Governor Parts Diagram

  • Title

4104

20B-43301-03

SPEED CONTROL LEVER

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.6.

$

$

Not available

4120

Subaru Robin 20B-46001-21

SPEED CONTROL BKT CP

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

4122

Subaru Robin 20B-35903-03

GASKET 3

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3 SPEED BRK.-CAB.

$

$

Not available

4131

Subaru Robin 227-45002-03

SPRING WASHER

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.4 SPEED CONT..

$3.49

$

Usually ships in 2-12 days

0

4132

Subaru Robin 227-43501-13

STOP PLATE

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.2 STD SPEED CONT.

$9.49

$

Usually ships in 2-12 days

0

4133

Subaru Robin 021-70600-30

FRICTION WASHER

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5[0.6 SPEED CONT.

$0.99

$

In Stock, Qty 5

0

4134

Subaru Robin 002-35060-00

SELF LOCK NUT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

In Stock, Qty 5

0

4140

Subaru Robin 004-31061-80

SCREW,PANHEAD

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: HI.SET.

$0.99

$

Usually ships in 2-12 days

0

4141

Subaru Robin 002-27060-00

NUT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: HI.SET.

$0.99

$

In Stock, Qty 9

0

4150

Subaru Robin 277-96107-03

LABEL(HI-LOW)

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

0

4180

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X12L SPEED CON.

$2.99

$

In Stock, Qty 7

0
