EX400D00030 (EX40) - Subaru Robin Engine 3100 Intake & Exhaust Parts Diagram

Engine

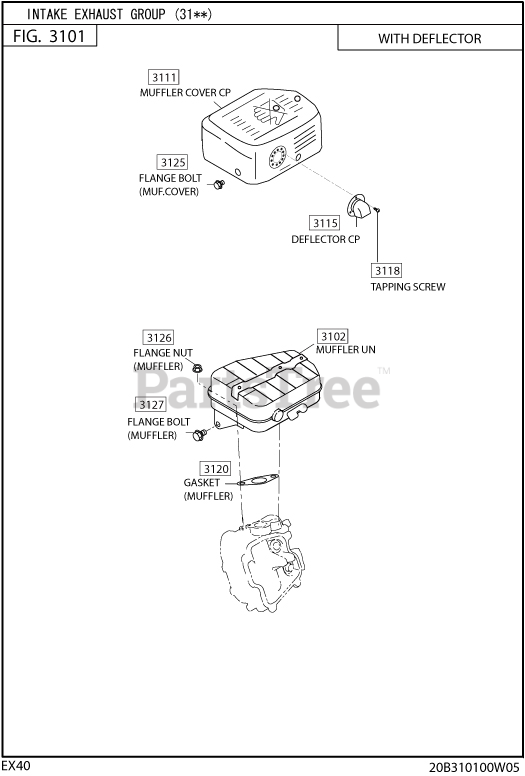

3100 Intake & Exhaust Parts Diagram

  • Title

3102

Subaru Robin 20B-30101-J2

MUFFLER UN

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$295.99

$

Usually ships in 2-12 days

0

3111

Subaru Robin 20B-34201-11

MUFFLER COVER CP

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$57.99

$

In Stock, only 1 left!

0

3115

Subaru Robin 20B-37001-11

DEFLECTOR CP

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$32.99

$

Usually ships in 2-12 days

0

3118

Subaru Robin 015-00400-60

TAPPING SCREW

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: D4XL6.

$

$

Not available

3120

Subaru Robin 20B-35201-03

GASKET(MUFFLER)

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$3.49

$

In Stock, only 1 left!

0

3125

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0,L=8 MUF.COVER.

$2.49

$

In Stock, Qty 8

0

3126

Subaru Robin 980-20082-80

FLANGE NUT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X6.5H MUFFLER.

$1.99

$

In Stock, only 4 left!

0

3127

Subaru Robin 011-00803-20

FLANGE BOLT

Note: Start Date: 10/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X12L MUFFLER.

$1.49

$

In Stock, only 1 left!

0
