EX350D20190 (EX35) - Subaru Robin Engine 770 Electric Device Parts Diagram

Engine

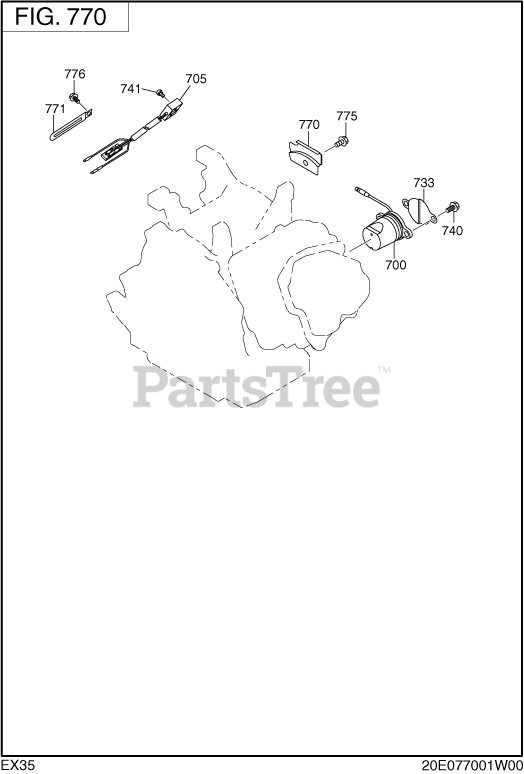

770 Electric Device Parts Diagram

  • Title

700

Subaru Robin 279-76301-51

OIL SENSOR CP

Note: Start Date: 2/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$40.05

$

Usually ships in 2-12 days

0

705

Subaru Robin KU3-11076-01

FLOAT C/U CP10

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00.

$73.98

$

Usually ships in 2-12 days

0

740

Subaru Robin 013-00602-60

BOLT AND WASHER AY

Note: Start Date: 2/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0

741

Subaru Robin 004-36041-20

SCREW AND WASHER AY

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M4X0.7X12L W/SW.

$0.99

$

Usually ships in 2-12 days

0

770

Subaru Robin 20B-75501-03

WIRE CLAMP

Note: Start Date: 2/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

Usually ships in 2-12 days

0

775

Subaru Robin 015-20600-50

TAPPING BOLT

Note: Start Date: 2/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X13DX10L.

$0.99

$

Usually ships in 2-12 days

0
