Subaru Robin EX350D20190 (EX35) - Subaru Robin Engine 302 Intake & Exhaust Parts Lookup with Diagrams

12

Subaru Robin 20B-31602-00

CAMSHAFT AY

Note: Start Date: 10/31/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$180.38

$

Usually ships in 2-12 days

23

Subaru Robin 20B-35101-11

PIN(CAM SHAFT)CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

Usually ships in 2-12 days

27

Subaru Robin 024-00700-20

O-RING

Note: Start Date: 1/15/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

34

Subaru Robin 005-19041-00

SPRING PIN

Note: Start Date: 6/14/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.4DX10LX0.8T.

$0.99

$

In Stock, only 2 left!

35

Subaru Robin 277-36401-03

RELEASE LEVER

Note: Start Date: 9/7/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

37

Subaru Robin 20B-36501-03

CLIP

Note: Start Date: 6/14/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

In Stock, Qty 18

38

Subaru Robin 20B-38701-03

RETURN SPRING

Note: Start Date: 10/31/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 22.2DX2.9DX37L N=6.5.

$4.99

$

Usually ships in 2-12 days

70

Subaru Robin 246-33711-13

SPRING RETAINER

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.6DX26DX8T.

$8.99

$

Usually ships in 2-12 days

80

Subaru Robin 20B-33401-H3

INTAKE VALVE

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

90

Subaru Robin 20B-33501-H3

EXHAUST VALVE

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

95

Subaru Robin 246-35501-03

COLLET-VALVE

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

In Stock, Qty 6

150

Subaru Robin 20B-35601-H1

TIMING CHAIN CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

160

Subaru Robin 277-36911-03

TENTIONER

Note: Start Date: 7/20/2001 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.99

$

In Stock, only 1 left!

163

Subaru Robin 277-37101-03

SPRING(TENTIONER)

Note: Start Date: 7/20/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10DX1.8DX14L N=4.5.

$

Not available 

166

Subaru Robin 277-36902-03

PIN(TENTIONER)

Note: Start Date: 7/20/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX13DX34L.

$4.99

$

In Stock, only 2 left!

170

Subaru Robin 277-36913-13

CHAIN GUIDE

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

200

Subaru Robin 20B-35001-01

PIN(ROCKER)CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

In Stock, only 1 left!

202

Subaru Robin 003-13060-00

CLIP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX0.8T.

$0.99

$

Usually ships in 2-12 days

220

Subaru Robin 20B-36101-00

ROCKER ARM(IN) AY

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$36.99

$

In Stock, only 1 left!

225

Subaru Robin 20B-36102-10

ROCKER ARM(EX) AY

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$40.99

$

Usually ships in 2-12 days

230

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X23L.

$3.99

$

Usually ships in 2-12 days

231

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X23L.

$3.99

$

Usually ships in 2-12 days

240

Subaru Robin 017-00500-30

NUT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X4.1H.

$1.49

$

In Stock, only 2 left!

241

Subaru Robin 017-00500-30

NUT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X4.1H.

$1.49

$

In Stock, only 2 left!

290

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 5/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.49

$

In Stock, Qty 8

310

Subaru Robin 20B-30103-A0

MUFFLER AY

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Currently unavailable 

340

Subaru Robin 20B-35201-03

GASKET(MUFFLER)

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

In Stock, only 1 left!

341

Subaru Robin 270-35201-01

GASKET CP (MUFFLER)

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.4 30D 8.5DX52P.

$5.99

$

In Stock, Qty 6

350

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 10/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$1.99

$

In Stock, only 4 left!

351

Subaru Robin 002-18080-00

NUT

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X6.5H.

$0.99

$

In Stock, only 1 left!

353

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$1.99

$

In Stock, only 4 left!

356

Subaru Robin 003-20080-00

SPRING WASHER

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

365

Subaru Robin 011-00800-10

FLANGE BOLT

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX40L.

$3.99

$

Usually ships in 2-12 days

370

Subaru Robin 011-00803-20

FLANGE BOLT

Note: Start Date: 1/25/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16DX12L.

$1.49

$

In Stock, only 1 left!

405

Subaru Robin 20B-34001-01

EXHAUST PIPE CP

Note: Start Date: 10/31/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$113.99

$

Usually ships in 2-12 days

415

Subaru Robin 010-50802-90

STUD

Note: Start Date: 9/7/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X30L.

$1.99

$

Usually ships in 2-12 days

538

Subaru Robin 20B-35903-03

GASKET 3

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

540

Subaru Robin 20B-32901-J1

INSULATOR CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

550

Subaru Robin 20B-35902-H3

GASKET 2

Note: Start Date: 4/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.99

$

Usually ships in 2-12 days

560

Subaru Robin 20B-35901-H3

GASKET 1

Note: Start Date: 4/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.99

$

Usually ships in 2-12 days

570

Subaru Robin 002-38060-00

FLANGE NUT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 9

580

Subaru Robin 001-04061-60

FLANGE BOLT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX16L.

$1.49

$

Usually ships in 2-12 days

850

Subaru Robin X85-11001-70

RUBBER PIPE

Note: Start Date: 10/31/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.99

$

Usually ships in 2-12 days

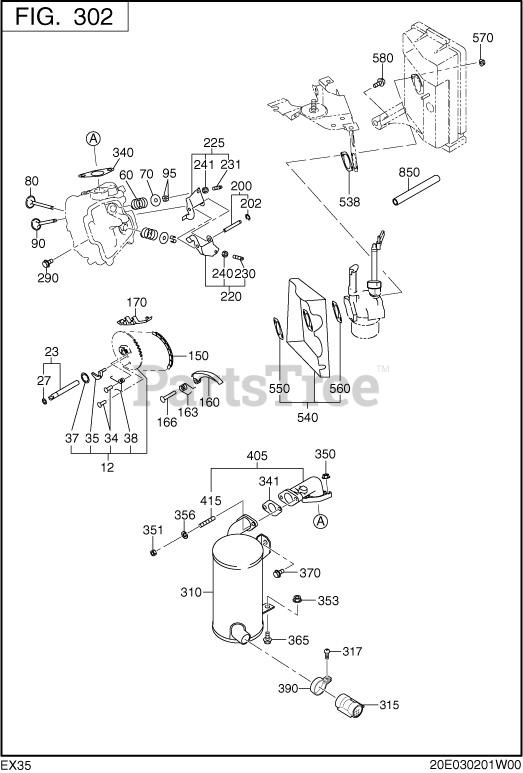

EX350D20190 (EX35) - Subaru Robin Engine 302 Intake & Exhaust Parts Diagram

302 Intake & Exhaust Parts Diagram
