EX350D00030 (EX35) - Subaru Robin Engine 600 Fuel & Lubricant Parts Diagram

Engine

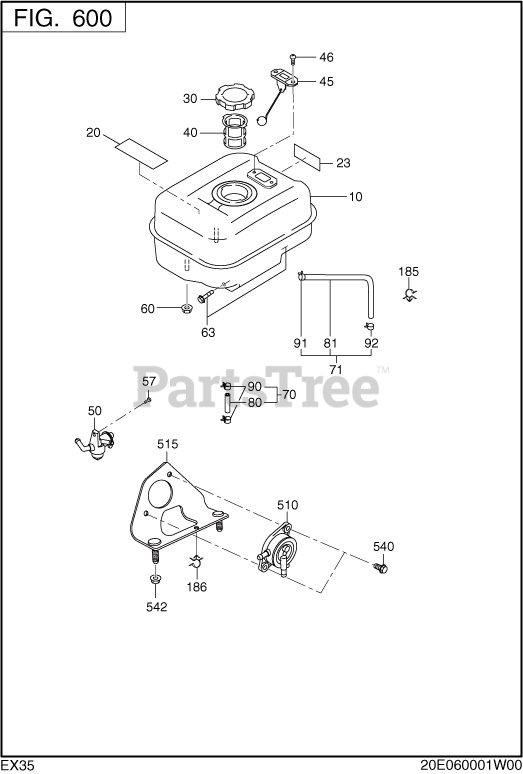

600 Fuel & Lubricant Parts Diagram

  • Title

10

20B-60202-01

FUEL TANK CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

20

Subaru Robin 073-20049-80

LABEL(CAUTION)

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 38X80 JAPAN.

$3.99

$

Usually ships in 2-12 days

0

23

20E-95101-03

LABEL(MODEL)

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

30

Subaru Robin 043-04300-60

FUEL TANK CAP CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 43DX63.8DX18H BLACK.

$

$

Not available

40

Subaru Robin X64-13600-10

FUEL FILTER

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.49

$

In Stock, only 1 left!

0

45

Subaru Robin 064-80007-00

FUEL GAUGE CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$28.59

$

In Stock, only 1 left!

0

46

Subaru Robin 014-50500-40

SCREW(COUNTER HEAD)

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.8X10L.

$1.99

$

In Stock, only 2 left!

0

50

Subaru Robin X64-20122-00

FUEL STRAINER AY

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$48.99

$

Usually ships in 2-12 days

0

57

Subaru Robin 011-00600-20

FLANGE BOLT

Note: End Code: 8156. Start Date: 5/6/2008 0:00:00. Start Date: 4/30/2009 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

57

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Code: 8157. Start Date: 5/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.49

$

In Stock, Qty 8

0

60

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$1.99

$

In Stock, only 4 left!

0

63

Subaru Robin 011-00802-50

FLANGE BOLT

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16DX25L.

$2.99

$

In Stock, only 1 left!

0

70

Subaru Robin 20B-62601-01

FUEL PIPE CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

71

Subaru Robin 267-62604-11

FUEL PIPE CP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.35DX12.7DX250L.

$15.99

$

Usually ships in 2-12 days

0

80

085-10620-90

RUBBER PIPE

Note: Start Date: 7/16/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

81

X85-10614-91

RUBBER PIPE

Note: Start Date: 10/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.4DX12.7DX250L. Interchangable with X85-10610-07.

$

$

Not available

90

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Start Date: 7/16/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10DX8BX1T.

$1.99

$

Usually ships in 2-12 days

0

91

Subaru Robin 056-11200-40

HOSE CLAMP

Note: Start Date: 6/14/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12DX8BX0.8T.

$1.99

$

Usually ships in 2-12 days

0

92

Subaru Robin X56-11100-60

HOSE CLAMP

Note: Start Date: 6/14/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$1.49

$

In Stock, only 2 left!

0

185

Subaru Robin 056-81200-10

CLAMP

Note: Start Date: 5/6/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0
