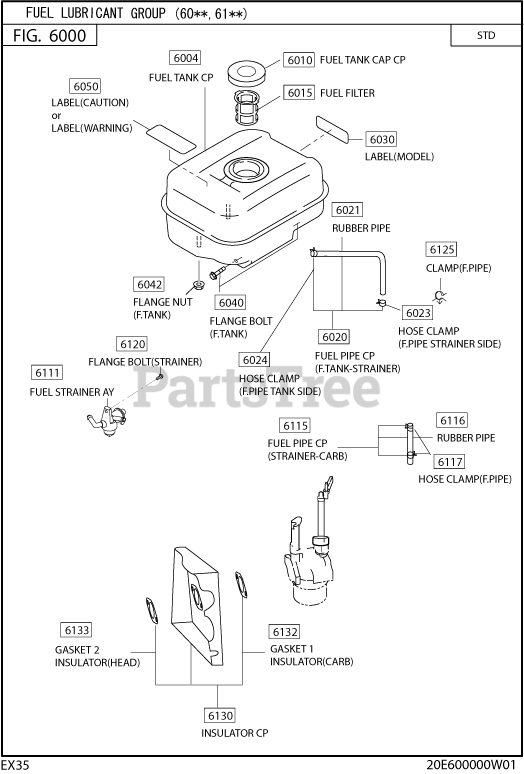

EX350D00000 (EX35) - Subaru Robin Engine 600 Fuel & Lubricant Parts Diagram

Engine

600 Fuel & Lubricant Parts Diagram

  • Title

6004

Subaru Robin 20B-60102-01

FUEL TANK CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: BLACK.

$393.70

$

Usually ships in 2-12 days

0

6010

Subaru Robin 043-04300-60

FUEL TANK CAP CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6015

Subaru Robin X64-13600-10

FUEL FILTER

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.49

$

In Stock, only 1 left!

0

6020

Subaru Robin 267-62604-11

FUEL PIPE CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.35DX12.7DX250L.

$15.99

$

Usually ships in 2-12 days

0

6021

X85-10614-91

RUBBER PIPE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.35DX12.7DX250L.

$

$

Not available

6023

Subaru Robin X56-11100-60

HOSE CLAMP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5D.

$1.49

$

In Stock, only 2 left!

0

6024

Subaru Robin 056-11200-40

HOSE CLAMP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12.0D.

$1.99

$

Usually ships in 2-12 days

0

6030

20E-95101-03

LABEL(MODEL)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: EX35-12.0.

$

$

Not available

6040

Subaru Robin 011-00802-50

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

In Stock, only 1 left!

0

6042

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

In Stock, only 4 left!

0

6050

Subaru Robin 073-20049-80

LABEL(CAUTION)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: PL-ANZEN CHUI.

$3.99

$

Usually ships in 2-12 days

0

6111

Subaru Robin X64-20122-00

FUEL STRAINER AY

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$48.99

$

Usually ships in 2-12 days

0

6115

Subaru Robin 20B-62601-01

FUEL PIPE CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6116

085-10620-90

RUBBER PIPE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX11DX90L.

$

$

Not available

6117

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.0D.

$1.99

$

Usually ships in 2-12 days

0

6120

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X12L.

$2.49

$

In Stock, only 4 left!

0

6125

Subaru Robin 056-81200-10

CLAMP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

6130

Subaru Robin 20B-32901-J1

INSULATOR CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

0

6132

Subaru Robin 20B-35901-H3

GASKET 1

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$5.99

$

Usually ships in 2-12 days

0

6133

Subaru Robin 20B-35902-H3

GASKET 2

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$5.99

$

Usually ships in 2-12 days

0
