EX350D00000 (EX35) - Subaru Robin Engine 3100 Intake & Exhaust Parts Diagram

Engine

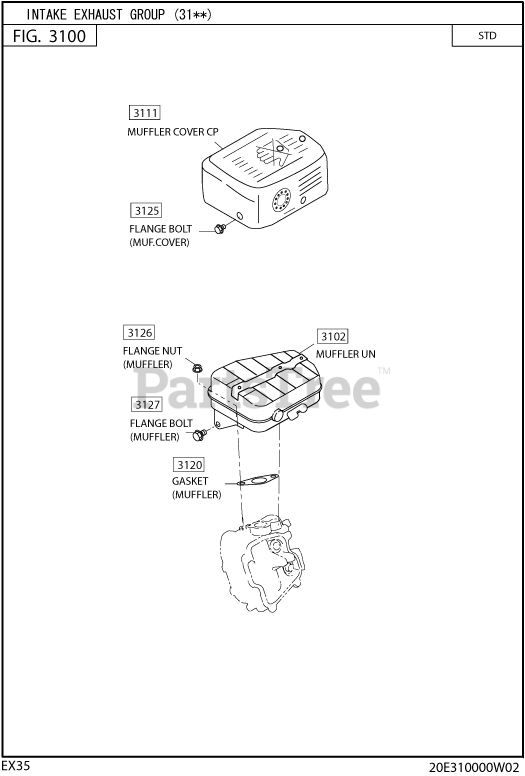

3100 Intake & Exhaust Parts Diagram

  • Title

3102

Subaru Robin 20B-30101-J2

MUFFLER UN

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$295.99

$

Usually ships in 2-12 days

0

3111

Subaru Robin 20B-34201-11

MUFFLER COVER CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$57.99

$

In Stock, only 1 left!

0

3120

Subaru Robin 20B-35201-03

GASKET(MUFFLER)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$3.49

$

In Stock, only 1 left!

0

3125

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0,L=8.

$2.49

$

In Stock, Qty 8

0

3126

Subaru Robin 980-20082-80

FLANGE NUT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X6.5H.

$1.99

$

In Stock, only 4 left!

0

3127

Subaru Robin 011-00803-20

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X12L.

$1.49

$

In Stock, only 1 left!

0
