EX350D00000 (EX35) - Subaru Robin Engine 300 Intake & Exhaust Parts Diagram

Engine

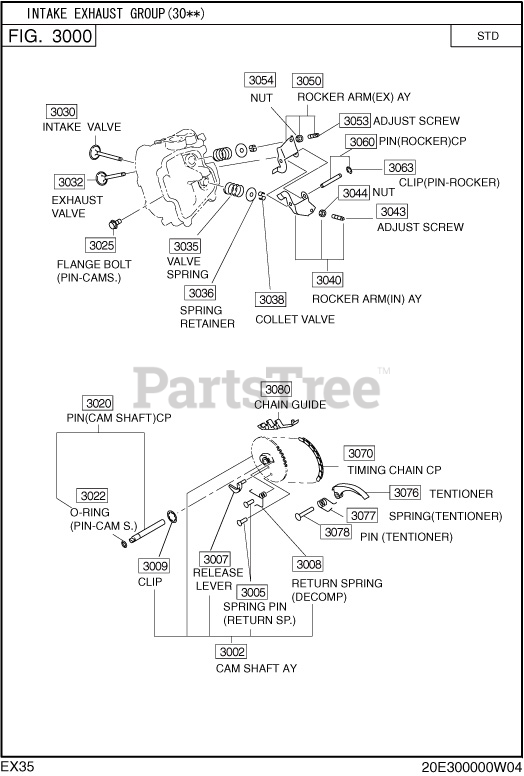

300 Intake & Exhaust Parts Diagram

  • Title
3002

Subaru Robin 20B-31601-00

CAMSHAFT AY

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD.

$332.99

$

Usually ships in 2-12 days

0

3005

Subaru Robin 005-19041-00

SPRING PIN

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

In Stock, only 2 left!

0

3007

Subaru Robin 277-36401-03

RELEASE LEVER

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

3008

Subaru Robin 277-38702-03

RETURN SPRING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: D=0.55.

$2.49

$

In Stock, Qty 6

0

3009

Subaru Robin 20B-36501-03

CLIP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

In Stock, Qty 18

0

3020

Subaru Robin 20B-35101-11

PIN(CAMSHAFT) CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

Usually ships in 2-12 days

0

3022

Subaru Robin 024-00700-20

O-RING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

0

3025

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X12L.

$2.49

$

In Stock, only 2 left!

0

3030

Subaru Robin 20B-33401-H3

INTAKE VALVE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

3032

Subaru Robin 20B-33501-H3

EXHAUST VALVE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

3035

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: D=2.9.

$4.99

$

In Stock, only 2 left!

0

3036

Subaru Robin 246-33711-13

SPRING RETAINER

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

3038

Subaru Robin 246-35501-03

COLLET-VALVE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

In Stock, Qty 6

0

3040

Subaru Robin 20B-36101-00

ROCKER ARM(IN) AY

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$36.99

$

In Stock, only 1 left!

0

3043

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5T2.

$3.99

$

Usually ships in 2-12 days

0

3044

Subaru Robin 017-00500-30

NUT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5T2.

$1.49

$

In Stock, only 2 left!

0

3050

Subaru Robin 20B-36102-10

ROCKER ARM(EX) AY

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$40.99

$

Usually ships in 2-12 days

0

3053

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5T2.

$3.99

$

Usually ships in 2-12 days

0

3054

Subaru Robin 017-00500-30

NUT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5T2.

$1.49

$

In Stock, only 2 left!

0

3060

Subaru Robin 20B-35001-01

PIN(ROCKER)CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

In Stock, only 1 left!

0

3063

Subaru Robin 003-13060-00

CLIP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

3070

Subaru Robin 20B-35601-H1

TIMING CHAIN CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 112LINK.

$42.99

$

Usually ships in 2-12 days

0

3076

Subaru Robin 277-36911-03

TENTIONER

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.99

$

In Stock, only 1 left!

0

3077

Subaru Robin 277-37101-03

SPRING(TENTIONER)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

3078

Subaru Robin 277-36902-03

PIN(TENTIONER)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

In Stock, only 2 left!

0

3080

Subaru Robin 277-36913-13

CHAIN GUIDE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0
