EX350D00000 (EX35) - Subaru Robin Engine 1000 Crankcase Parts Diagram

Engine

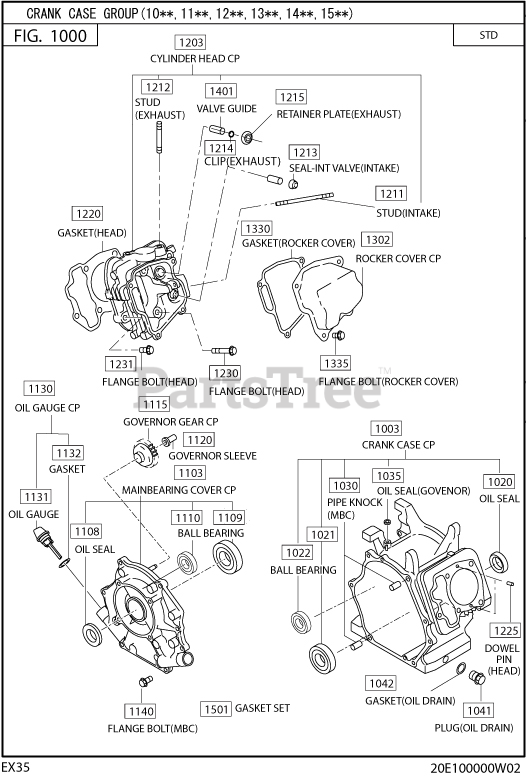

1000 Crankcase Parts Diagram

  • Title

1003

20E-10101-01

CRANK CASE CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD.

$

$

Not available

1020

Subaru Robin 044-03500-90

OIL SEAL

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$15.99

$

Usually ships in 2-12 days

0

1021

Subaru Robin 060-03502-40

BALL BEARING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 35DX72DX17B.

$32.99

$

Usually ships in 2-12 days

0

1022

Subaru Robin X60-01500-11

BALL BEARING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 15DX35DX11B.

$

$

Not available

1030

Subaru Robin 277-15011-03

PIPE KNOCK

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

Usually ships in 2-12 days

0

1035

Subaru Robin 044-00800-10

OIL SEAL

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.4DX14DX4B.

$7.49

$

Usually ships in 2-12 days

0

1041

Subaru Robin 040-11400-30

PLUG

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 14D X 12L.

$3.49

$

In Stock, only 3 left!

0

1042

Subaru Robin 021-11400-20

GASKET

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.4.

$0.99

$

Usually ships in 2-12 days

0

1103

Subaru Robin 20B-11001-11

MAINBEARING COVER CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: D-STD.

$154.43

$

Usually ships in 2-12 days

0

1108

Subaru Robin 044-03500-90

OIL SEAL

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$15.99

$

Usually ships in 2-12 days

0

1109

Subaru Robin 060-03502-40

BALL BEARING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 35DX72DX17B.

$32.99

$

Usually ships in 2-12 days

0

1110

Subaru Robin X60-01500-11

BALL BEARING

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 15DX35DX11B.

$

$

Not available

1115

Subaru Robin 20B-45003-01

GOVERNOR GEAR CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$24.99

$

Usually ships in 2-12 days

0

1120

Subaru Robin 277-41901-03

GOVERNOR SLEEVE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$26.99

$

In Stock, only 1 left!

0

1130

Subaru Robin 224-63601-01

OIL GAUGE CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

1131

Subaru Robin 224-63601-03

OIL GAUGE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

1132

Subaru Robin 021-32000-50

GASKET

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20DX27DX1.5T.

$2.99

$

In Stock, only 2 left!

0

1140

Subaru Robin 011-00803-40

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X38L.

$7.99

$

Usually ships in 2-12 days

0

1203

Subaru Robin 20B-13001-01

CYLINDER HEAD CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD.

$546.99

$

Usually ships in 2-12 days

0

1211

Subaru Robin 010-50603-51

STUD

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX98LX20S.

$9.49

$

Usually ships in 2-12 days

0

1212

Subaru Robin 010-50802-90

STUD

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

Usually ships in 2-12 days

0

1213

Subaru Robin 132-07AA0-50

SEAL-INT VALVE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$11.99

$

In Stock, only 2 left!

0

1214

Subaru Robin 056-51000-50

CLIP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

In Stock, Qty 5

0

1215

Subaru Robin 263-35341-03

RETAINER PLATE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$4.49

$

In Stock, only 2 left!

0

1220

Subaru Robin 20B-15001-03

GASKET(HEAD)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$18.99

$

In Stock, only 1 left!

0

1225

Subaru Robin 031-00600-20

DOWEL PIN

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX14.8L.

$0.99

$

Usually ships in 2-12 days

0

1230

Subaru Robin 011-01000-40

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M10X1.25X75L.

$2.49

$

Usually ships in 2-12 days

0

1231

Subaru Robin 001-04083-50

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

0

1302

Subaru Robin 20B-15501-01

ROCKER COVER CP

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: OHC.

$66.99

$

Usually ships in 2-12 days

0

1330

Subaru Robin 20B-16001-03

GASKET(ROCKER COVER)

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$

$

Not available

1335

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X12L.

$2.49

$

In Stock, only 4 left!

0

1401

Subaru Robin 20B-14202-03

VALVE GUIDE

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$22.99

$

Usually ships in 2-12 days

0

1501

Subaru Robin 20B-99001-07

GASKET SET

Note: Start Date: 6/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$36.99

$

Usually ships in 2-12 days

0
