EX350 A/A (ECC) - Honda Generator, Made in Japan (SN: ECC-1178333 - ECC-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

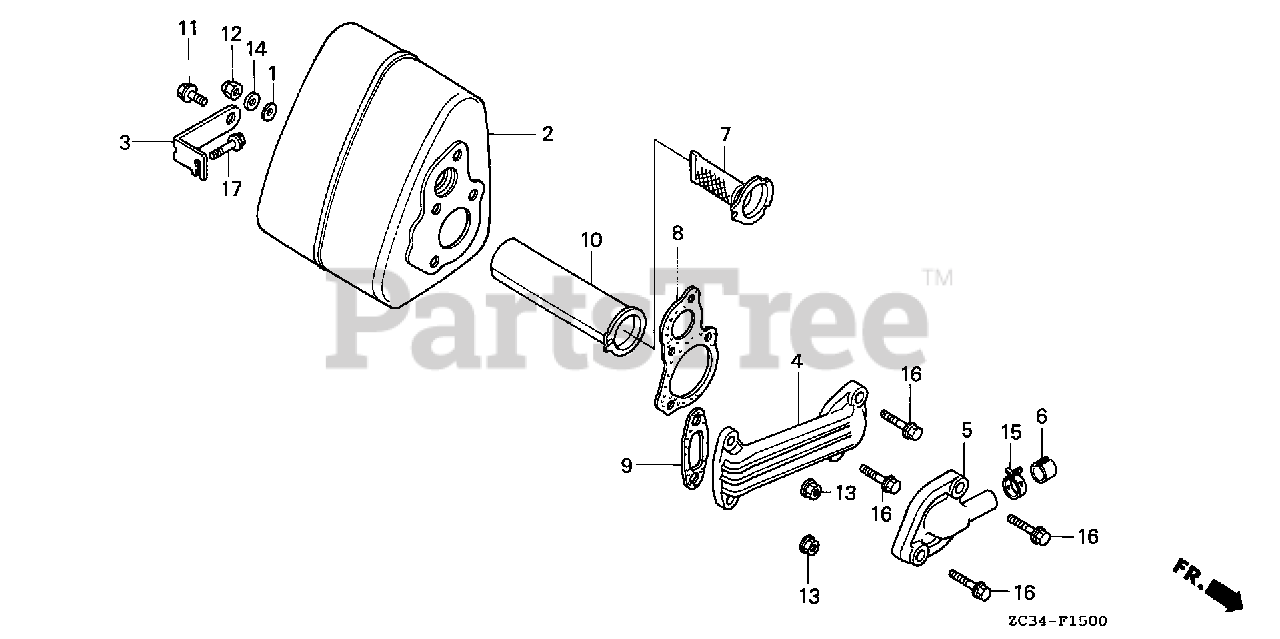

MUFFLER Parts Diagram

  • Title
1

Honda 18292-GY1-860

SEE PART DETAILS - PRI; GASKET, MUFFLER PROTECTOR

$4.49

$

Usually ships in 3-6 days

0

1

Honda 18292-KS3-920

SEE PART DETAILS - SUP; GASKET, MUFFLER PROTECTOR

$

$

Not available

$

$

Not available

3

Honda 18315-ZC3-000

STAY, MUFFLER

$

$

Not available

4

$

$

Not available

5

Honda 18341-ZC3-020

DEFLECTOR, MUFFLER

$

$

Not available

$

$

Not available

7

Honda 18355-ZC3-630

ARRESTER, SPARK

$

$

Not available

8

Honda 18381-ZC3-000

GASKET, MUFFLER

$

$

Not available

9

Honda 18382-ZC3-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$

$

Not available

10

Honda 18390-ZC3-632

PIPE, TAIL

$

$

Not available

11

Honda 90107-VA5-640

BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94021-05000-0S

NUT, CAP (5MM)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

14

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

15

Honda 95002-41250-04

CLAMP, TUBE (D12.5)

$3.49

$

In Stock, only 1 left!

0

16

Honda 96001-06025-00

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 96001-06010-00

BOLT, FLANGE (6X10)

$2.49

$

Usually ships in 3-6 days

0
