EX350 A/A (ECC) - Honda Generator, Made in Japan (SN: ECC-1178333 - ECC-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

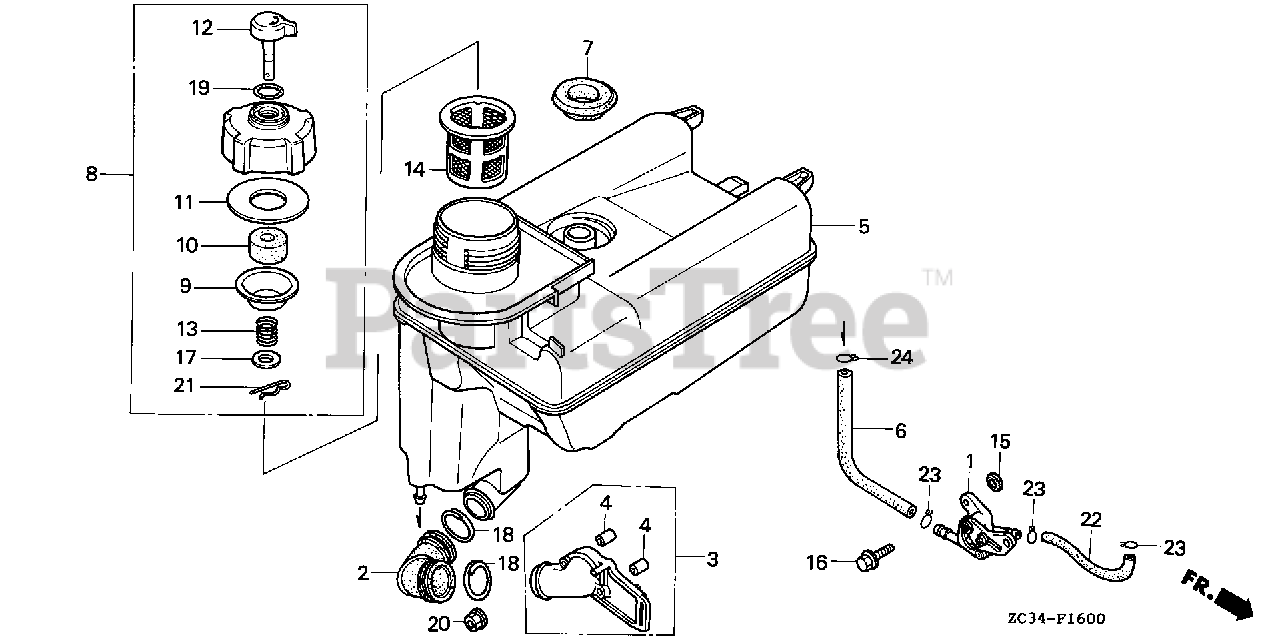

FUEL TANK Parts Diagram

  • Title
1

Honda 16950-ZC3-025

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

2

Honda 17251-ZC3-000

TUBE, AIR CLEANER CONNECTING

$

$

Not available

3

Honda 17271-ZC3-000

JOINT, AIR IN.

$

$

Not available

4

Honda 17272-ZC3-300

COLLAR, IN. JOINT

$3.99

$

Usually ships in 3-6 days

0

5

Honda 17510-ZC3-010

TANK, FUEL

$62.99

$

Usually ships in 3-6 days

0

6

Honda 17513-ZC3-000

TUBE, FUEL

$

$

Not available

7

Honda 17555-ZC3-000

RUBBER, CONNECTOR SEALING

$

$

Not available

8

Honda 17620-ZC3-040

CAP ASSY., FUEL TANK

$28.99

$

Usually ships in 3-6 days

0

9

Honda 17622-ZC3-000

INNER, FUEL CAP

$

$

Not available

10

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 3 left!

0

11

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.49

$

In Stock, only 3 left!

0

12

Honda 17626-ZC3-020

VALVE, BREATHER

$

$

Not available

13

Honda 17629-ZV0-000

SPRING, FUEL CAP

$2.99

$

In Stock, only 1 left!

0

14

Honda 17670-ZC3-700

FILTER, FUEL

$15.99

$

In Stock, only 1 left!

0

15

Honda 18292-GY1-860

SEE PART DETAILS - PRI; GASKET, MUFFLER PROTECTOR

$3.99

$

Usually ships in 3-6 days

0

15

Honda 18292-KS3-920

SEE PART DETAILS - SUP; GASKET, MUFFLER PROTECTOR

$

$

Not available

16

Honda 90012-896-750

BOLT, FLANGE (5X14)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90851-ZC3-000

CLIP (28MM)

$3.99

$

In Stock, only 1 left!

0

19

Honda 91362-ZC3-000

O-RING (13.8X2.4)

$

$

Not available

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X65)

$54.99

$

In Stock, only 4 left!

0

23

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0
