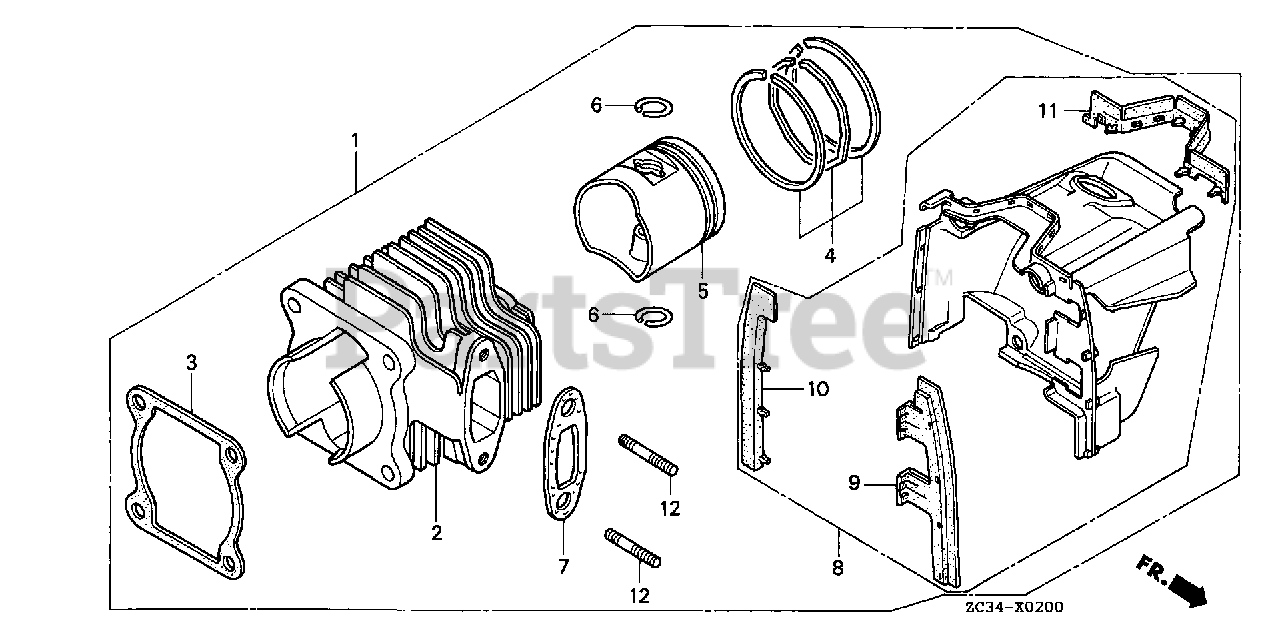

EX350 A/A (ECC) - Honda Generator, Made in Japan (SN: ECC-1178333 - ECC-9999999) CYLINDER KIT Parts Diagram

Generator, Made in Japan

CYLINDER KIT Parts Diagram

  • Title
1

Honda 06121-ZC3-A00

CYLINDER KIT

$

$

Not available

2

$

$

Not available

3

Honda 12191-ZC3-800

GASKET, CYLINDER

$2.99

$

Usually ships in 3-6 days

0

4

Honda 13010-ZC3-003

RING SET, PISTON

$

$

Not available

$

$

Not available

6

Honda 13115-ZC3-000

CLIP, PISTON PIN

$

$

Not available

7

Honda 18382-ZC3-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$

$

Not available

8

Honda 19630-ZC3-000

SHROUD ASSY.

$

$

Not available

9

Honda 19633-ZC3-000

R. RUBBER, SHROUD SEALING

$

$

Not available

10

Honda 19634-ZC3-000

L. RUBBER, SHROUD SEALING

$

$

Not available

11

Honda 19637-ZC3-000

RUBBER, SHROUD SEALING (UPPER)

$

$

Not available

12

Honda 92900-05016-0B

BOLT, STUD (5X16)

$1.49

$

Usually ships in 3-6 days

0
