EX3300S K1 A (EB2) - Honda Generator, Made in Japan (SN: EB2-1100001 - EB2-1102329) CARBURETOR Parts Diagram

Generator, Made in Japan

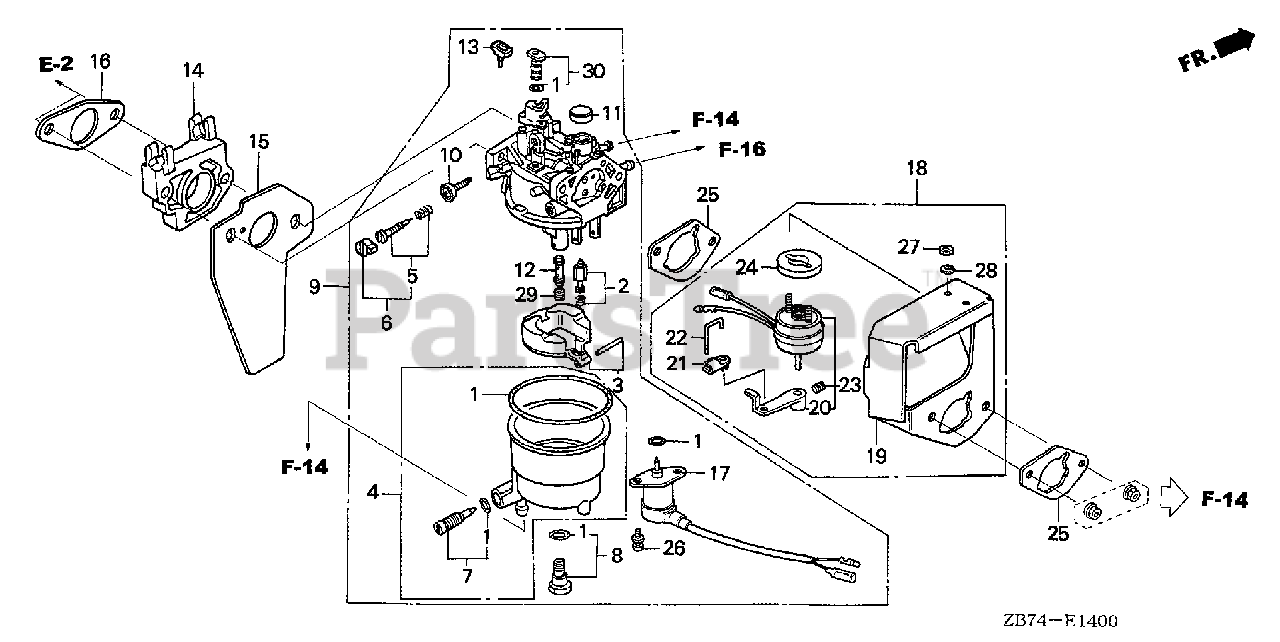

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$80.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

7

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZA0-931

SCREW SET

$27.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE2-E12

CARBURETOR ASSY. (BE22C C)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZE2-015

NOZZLE, MAIN

$33.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZB7-000

INSULATOR, CARBURETOR

$23.99

$

Usually ships in 3-6 days

0

15

Honda 16221-ZB7-800

GASKET, CARBURETOR

$23.99

$

Usually ships in 3-6 days

0

16

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 20+

0

17

Honda 16230-ZE3-701

SEE PART DETAILS - SUP; VALVE ASSY., SOLENOID
(Superseded to 16230-ZE3-702)

$72.99

$

In Stock, only 1 left!

0

17

Honda 16230-ZE3-702

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$72.99

$

In Stock, only 1 left!

0

18

Honda 16260-ZB7-000

STAY ASSY., SOLENOID

$198.99

$

Usually ships in 3-6 days

0

19

Honda 16261-ZB7-000

STAY, CHOKE SOLENOID

$35.99

$

Usually ships in 3-6 days

0

20

Honda 16262-ZB7-000

LEVER, CHOKE SOLENOID

$8.49

$

Usually ships in 3-6 days

0

21

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

22

Honda 16264-ZB7-000

ROD, CHOKE SOLENOID

$2.49

$

In Stock, only 2 left!

0

23

Honda 16265-ZB7-000

SOLENOID ASSY., CHOKE

$170.99

$

Usually ships in 3-6 days

0

24

Honda 16266-ZB7-000

SPACER, CHOKE SOLENOID

$13.99

$

Usually ships in 3-6 days

0

25

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, only 2 left!

0

26

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

27

Honda 94001-03000-0S

NUT, HEX. (3MM)

$1.49

$

In Stock, Qty 7

0

28

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZF5-0780

SEE PART DETAILS - SUP; JET, MAIN (#78)

$

$

Not available

29

Honda 99101-ZF5-0800

JET, MAIN (#80)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZF5-0820

SEE PART DETAILS - SUP; JET, MAIN (#82)

$

$

Not available

29

Honda 99101-ZH7-0780

SEE PART DETAILS - PRI; JET, MAIN (#78)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZH7-0820

SEE PART DETAILS - SUP; JET, MAIN (#82)

$

$

Not available

29

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82)

$7.99

$

Usually ships in 3-6 days

0

30

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40)

$22.99

$

In Stock, Qty 5

0
