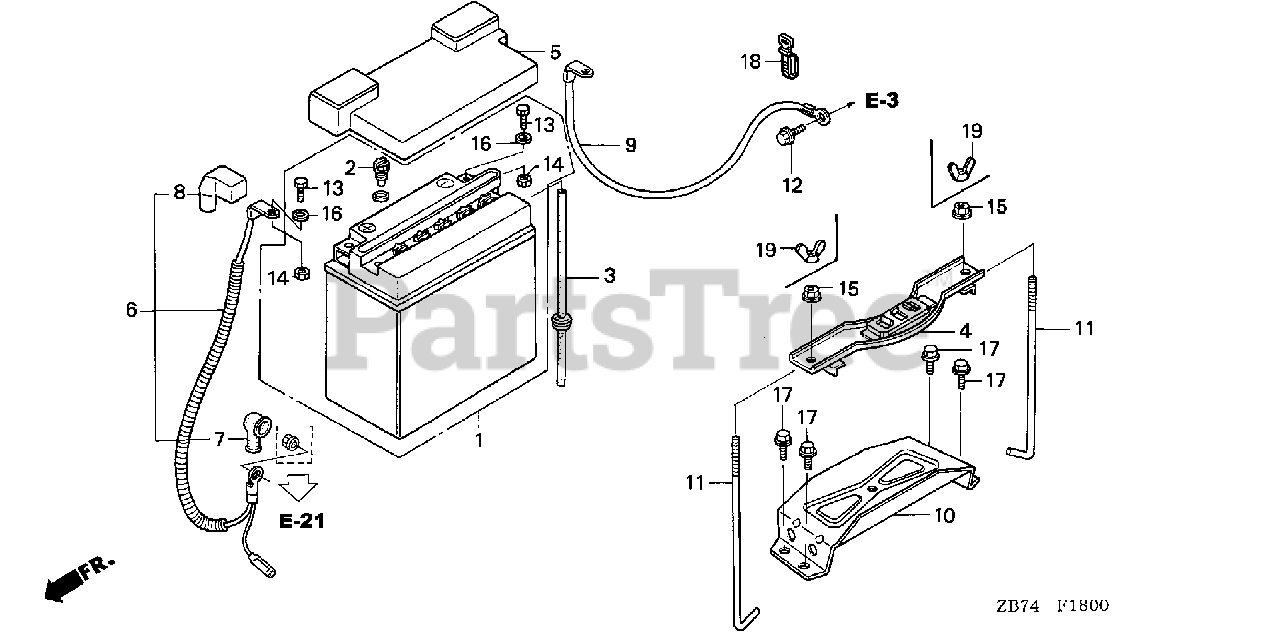

EX3300S K1 A (EB2) - Honda Generator, Made in Japan (SN: EB2-1100001 - EB2-1102329) BATTERY Parts Diagram

Generator, Made in Japan

BATTERY Parts Diagram

  • Title

1

Honda 31500-ZB7-633

SEE PART DETAILS - PRI; BATTERY (YB18L-A) (YUASA)

$

$

Not available

1

Honda 31500-ZB7-633AH

SEE PART DETAILS - PRI; BATTERY (YB18L-A) (YUASA)

$

$

Not available

2

Honda 31505-413-950

PLUG, FILLING

$

$

Not available

3

Honda 31507-ZB7-000

TUBE, BATTERY BREATHER

$12.99

$

Usually ships in 3-6 days

0

4

Honda 31512-ZB7-000

PLATE, BATTERY SETTING

$28.99

$

Usually ships in 3-6 days

0

5

Honda 31513-ZB7-000

COVER, BATTERY

$21.99

$

Usually ships in 3-6 days

0

6

Honda 32410-ZB7-A00

CABLE ASSY., STARTING

$30.99

$

Usually ships in 3-6 days

0

7

Honda 32416-460-000

COVER B, MAGNETIC SWITCH

$

$

Not available

8

Honda 32412-471-000

COVER, BATTERY TERMINAL

$

$

Not available

9

Honda 32430-ZB7-000

CABLE ASSY., GROUND

$20.99

$

Usually ships in 3-6 days

0

10

Honda 50319-ZB7-000

BASE, BATTERY

$64.99

$

Usually ships in 3-6 days

0

11

Honda 90001-728-760

BOLT, BATTERY SETTING

$5.49

$

In Stock, only 2 left!

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

13

Honda 90122-463-740

BOLT, BATTERY TERMINAL

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90306-413-950

NUT, BATTERY TERMINAL

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90501-413-950

WASHER, BATTERY TERMINAL

$

$

Not available

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

18

Honda 32161-404-610

BAND B1, WIRE

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90325-459-000

NUT, TOOL BOX SETTING

$

$

Not available
