EX3300S K1 A/B (EB2) - Honda Generator, Made in Japan (SN: EB2-1110001 - EB2-9999999) PISTON@RINGS@CONNECTING ROD Parts Diagram

Generator, Made in Japan

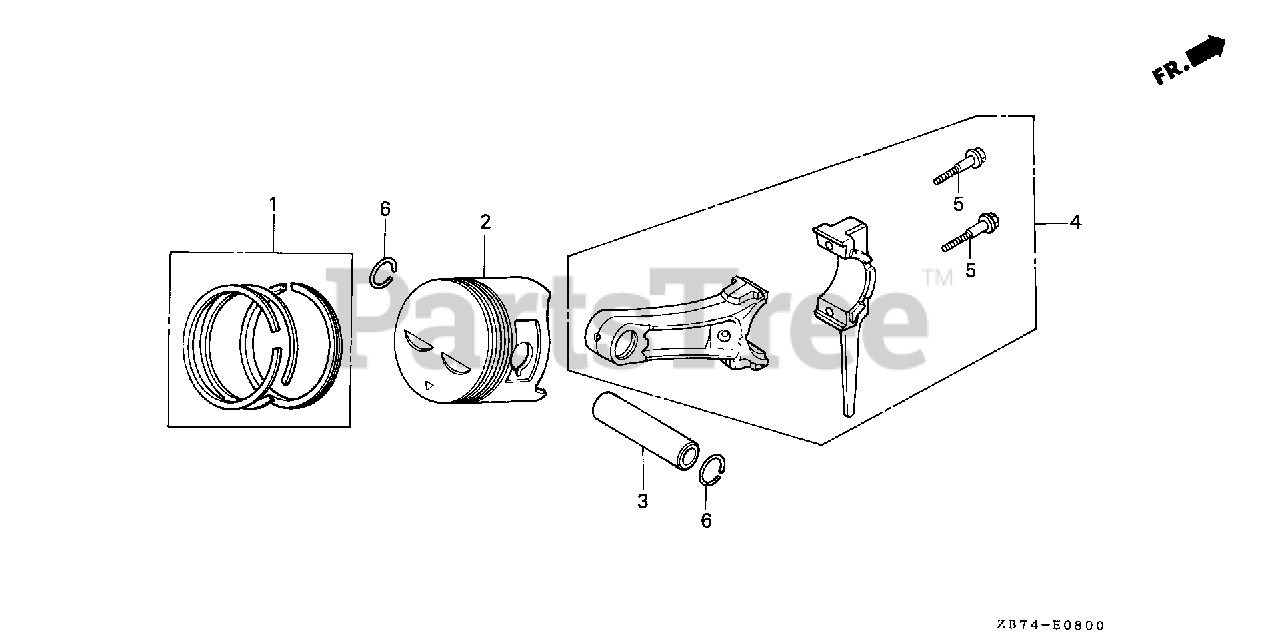

PISTON@RINGS@CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use from Engine SN 4081305.

Note: (Optional).

$

$

Not available

1

Honda 13012-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use from Engine SN 4081305.

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE2-922

RING SET, PISTON (STD) (NIPPON)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE2-922

RING SET, PISTON (OS 0.25) Use from Engine SN 4081305.

Note: (Optional).

$

$

Not available

1

Honda 13012-ZE2-922

RING SET, PISTON (OS 0.50) Use from Engine SN 4081305.

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-921

RING SET, PISTON (0.75) Use from Engine SN 4081305.

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-922

RING SET, PISTON (0.75) Use from Engine SN 4081305.

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE2-W00

PISTON (STD)

$49.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON (Honda Code 2025484).

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE2-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD) (Honda Code 6835250).

$28.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1D-900)

$31.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1D-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$31.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 20+

0
