EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) REMOTE CONTROL Parts Diagram

Generator, Made in Japan

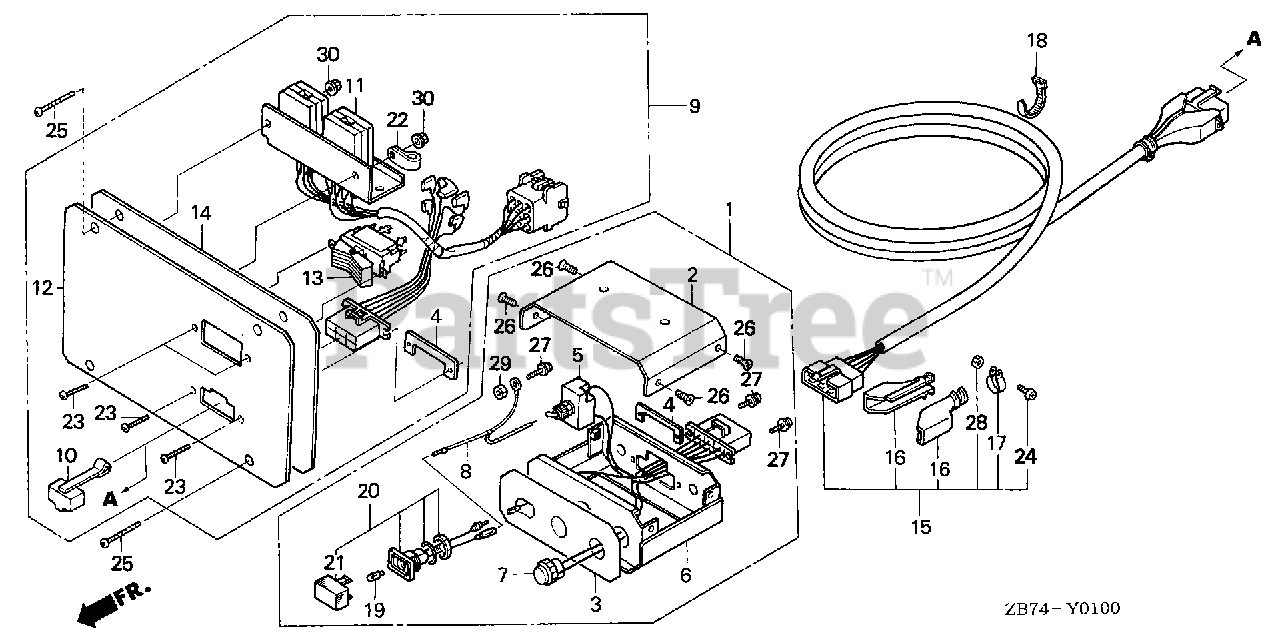

REMOTE CONTROL Parts Diagram

  • Title

1

Honda 31610-ZB4-000ZC

SEE PART DETAILS - PRI; BOX ASSY., SWITCH *R280* Use from Frame SN 1120560.

Note: (Optional).

$204.99

$

Usually ships in 3-6 days

0

2

Honda 31611-880-810ZA

COVER (UPPER) *R8* (BRIGHT RED) Use up to Frame SN 1110009.
(Superseded to 31611-880-810ZE)

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZB4-000

PLATE, SWITCH & INDICATOR Use from Frame SN 1001725.
(Superseded to 31612-ZB4-010)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 31613-880-810

PLATE, CONNECTOR SETTING

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31614-880-810

SWITCH, TOGGLE

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZB4-000ZA

PANEL, CONTROL *R8* (BRIGHT RED) Use up to Frame SN 1120559.
(Superseded to 31615-ZB4-000ZD)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

7

Honda 31619-880-810

SWITCH, PUSH

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

8

Honda 31621-893-720

WIRE, GROUND

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

9

Honda 31650-ZB7-A31

CONTROL ASSY., REMOTE

Note: (Optional).

$195.99

$

Usually ships in 3-6 days

0

10

Honda 31653-ZB7-003

COVER, REMOTE CONTROL CONNECTOR

Note: (Optional).

$

$

Not available

11

Honda 31655-ZB7-003

RELAY ASSY.
(Superseded to 31655-ZB7-013)

Note: (Optional).

$371.99

$

Usually ships in 3-6 days

0

11

Honda 31655-ZB7-013

RELAY ASSY.

Note: (Optional).

$371.99

$

Usually ships in 3-6 days

0

12

Honda 31656-ZB7-A31

MARK, REMOTE CONTROL

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

13

Honda 31657-ZB7-003

SWITCH ASSY.

Note: (Optional).

$92.99

$

Usually ships in 3-6 days

0

14

Honda 31658-ZB7-003

PANEL, RELAY

Note: (Optional).

$45.99

$

Usually ships in 3-6 days

0

15

Honda 31690-893-720

CABLE, REMOTE CONTROL (10MM)

Note: (Optional).

$91.99

$

Usually ships in 3-6 days

0

16

Honda 31691-893-720

COVER, CONNECTOR

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

17

Honda 31692-893-720

BAND

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

Note: (Optional).

$2.99

$

In Stock, only 4 left!

0

19

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) Use from Frame SN 1001725.

Note: (Optional).

$3.49

$

In Stock, only 1 left!

0

20

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN) Use from Frame SN 1001725.

Note: (Optional).

$43.99

$

Usually ships in 3-6 days

0

21

Honda 37563-ZA0-801

LENS (GREEN) Use from Frame SN 1001725.

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90627-ZA8-801

CLIP (9MM)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

23

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: (Optional).

$

$

Currently unavailable

24

Honda 93500-03012-3C

SCREW, PAN (3X12)

Note: (Optional).

$

$

Currently unavailable

25

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

Note: (Optional).

$1.49

$

In Stock, Qty 8

0

26

Honda 93600-04008-0H

SCREW, FLAT (4X8) Use from Frame SN 1001725.

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

28

Honda 94001-03330-0S

NUT, HEX. (3MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94050-04080

NUT, FLANGE (4MM)

Note: (Optional).

$1.99

$

In Stock, Qty 8

0
