EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) FUEL TANK Parts Diagram

Generator, Made in Japan

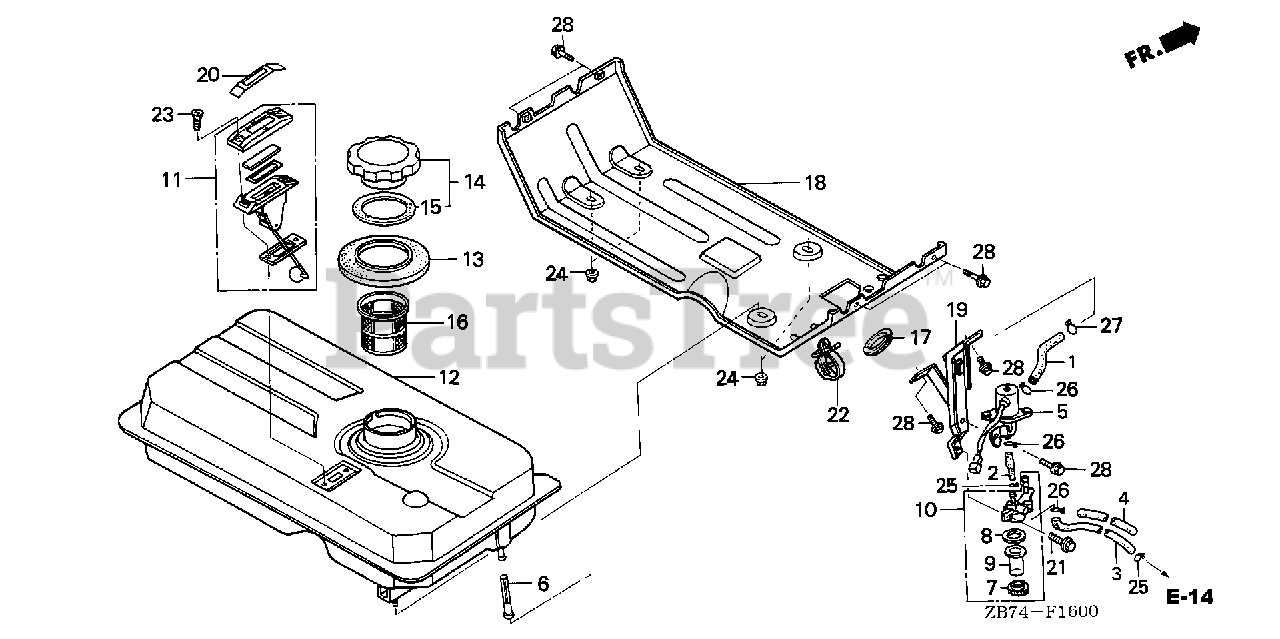

FUEL TANK Parts Diagram

  • Title

1

Honda 16851-ZB7-000

TUBE, FUEL (TANK-VALVE)

$9.49

$

Usually ships in 3-6 days

0

2

Honda 16852-ZB7-000

TUBE, FUEL (VALVE-STRAINER)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 16853-ZB7-000

TUBE, FUEL (STRAINER-CARBURETOR)

$9.49

$

Usually ships in 3-6 days

0

4

Honda 16857-ZB7-000

TUBE, FUEL SUPPORTER

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16930-ZB7-013

PETCOCK ASSY., ELECTRIC FUEL

$142.99

$

Usually ships in 3-6 days

0

6

Honda 16952-ZB7-000

FILTER, FUEL

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16957-707-005

NUT, RING

$10.99

$

Usually ships in 3-6 days

0

8

Honda 16963-443-901

GASKET (Honda Code 2297232).

$10.99

$

Usually ships in 3-6 days

0

9

Honda 16967-ZB8-005

CUP,FUEL STRAINER

$30.99

$

Usually ships in 3-6 days

0

9

Honda 16967-196-005

SEE PART DETAILS - SUP; CUP, FUEL STRAINER
(Superseded to 16967-ZB8-005)

$30.99

$

Usually ships in 3-6 days

0

10

Honda 16990-ZB7-005

CUP ASSY., FUEL STRAINER

$63.99

$

Usually ships in 3-6 days

0

11

Honda 17505-ZB2-013

SEE PART DETAILS - PRI; METER ASSY., FUEL

$25.99

$

Usually ships in 3-6 days

0

12

Honda 17510-ZB7-000

TANK, FUEL

$366.99

$

Usually ships in 3-6 days

0

13

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$22.99

$

Usually ships in 3-6 days

0

14

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

Usually ships in 3-6 days

0

15

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

16

Honda 17672-899-000

FILTER, FUEL

$17.99

$

In Stock, only 3 left!

0

17

Honda 32112-611-000

GROMMET, WIRE

$

$

Not available

18

Honda 63125-ZB7-000

PLATE, FUEL TANK HANGER

$333.99

$

Usually ships in 3-6 days

0

19

Honda 63132-ZB7-000

BRACKET, STRAINER CUP SETTING

$44.99

$

Usually ships in 3-6 days

0

20

Honda 87565-ZB4-A00

PLATE, FUEL INDICATION

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90007-892-000

BOLT, FLANGE (5X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, Qty 5

0

24

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

25

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 11

0

26

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

Usually ships in 3-6 days

0

27

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12) Use from Engine SN 2086984.

$2.99

$

In Stock, only 2 left!

0

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0
