EX3300S K1 A/A (EB2) - Honda Generator, Made in Japan (SN: EB2-1102330 - EB2-1109999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

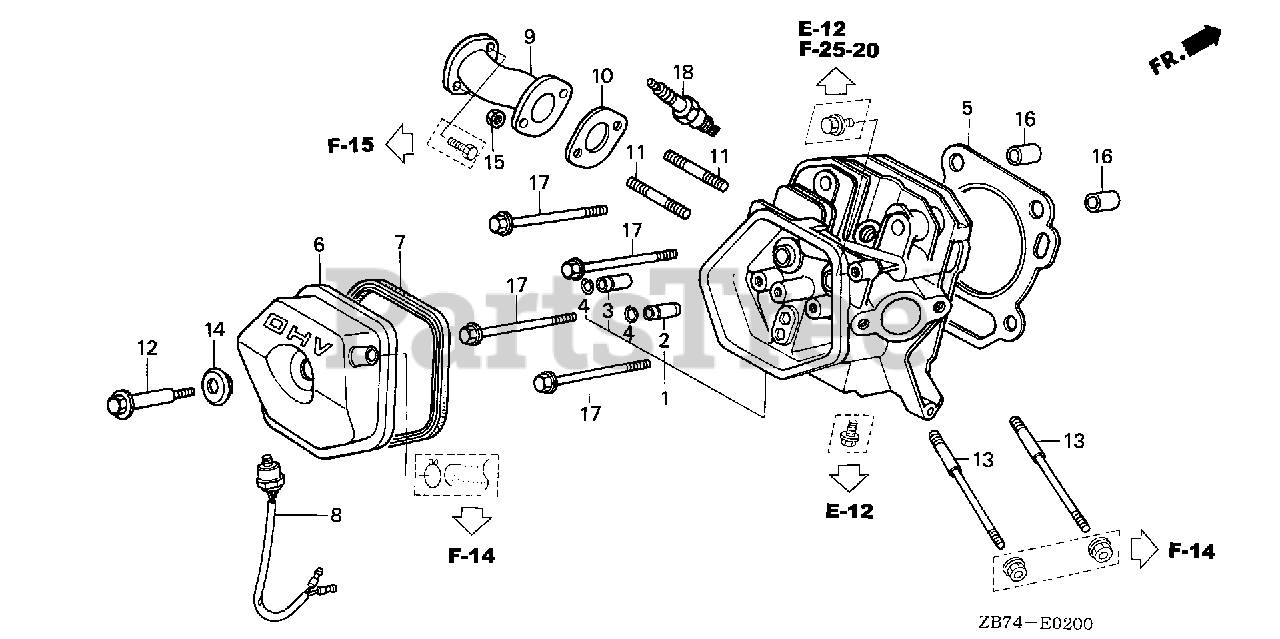

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$332.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3678539).
(Superseded to 12251-ZE2-801)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$14.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE3-791

COVER, HEAD (BREATHER TUBE JOINT)

$50.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$11.99

$

In Stock, Qty 20+

0

8

Honda 16500-ZE2-703

SEE PART DETAILS - PRI; SWITCH, THERMO

$74.99

$

Usually ships in 3-6 days

0

9

Honda 18330-ZB7-003

PIPE, EX.

$41.99

$

Usually ships in 3-6 days

0

10

Honda 18333-ZB7-800

GASKET, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

11

Honda 90012-KM9-000

BOLT, STUD (8X34) (Honda Code 2298289).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$6.99

$

In Stock, only 1 left!

0

13

Honda 90042-ZB7-000

BOLT, STUD (8X111) (Honda Code 2298297).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.49

$

In Stock, Qty 16

0

15

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

16

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

18

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
