EX3300S A (EB2) - Honda Generator, Made in Japan (SN: EB2-1000001 - EB2-1099999) MUFFLER Parts Diagram

Generator, Made in Japan

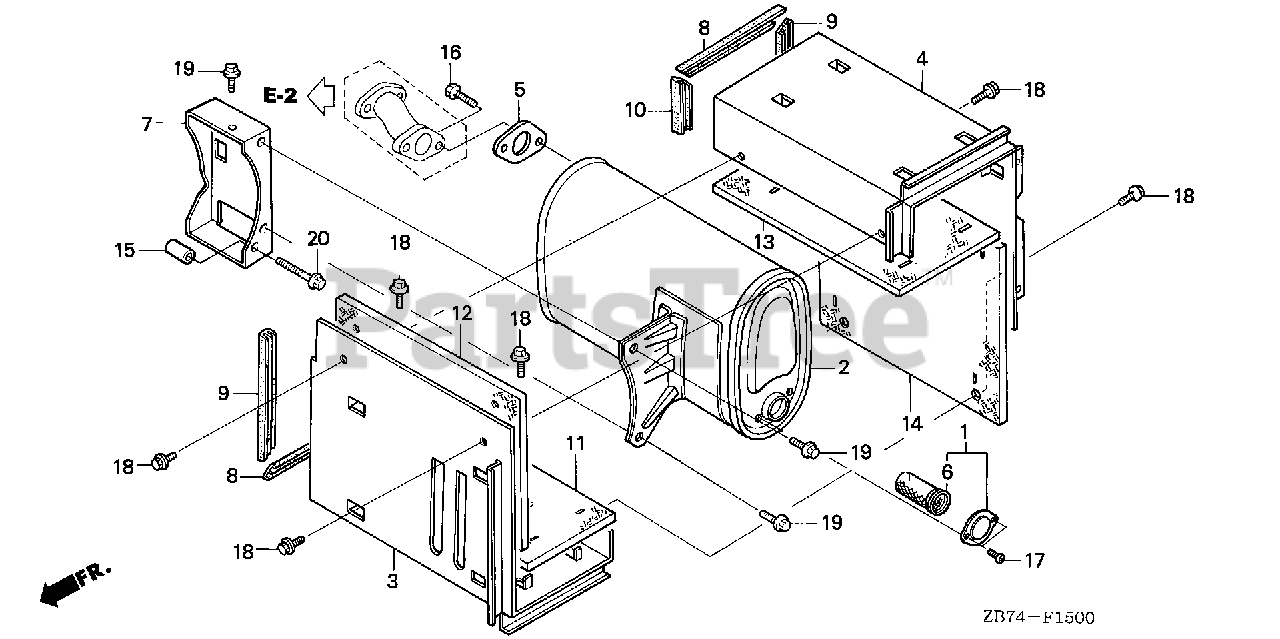

MUFFLER Parts Diagram

  • Title
1

Honda 183A5-ZE8-000

ARRESTER SET, SPARK

$

$

Currently unavailable

$

$

Not available

3

Honda 18321-ZB7-000

DUCT, MUFFLER (LOWER)

$118.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZB7-000

DUCT, MUFFLER (UPPER)

$118.99

$

Usually ships in 3-6 days

0

5

Honda 18333-ZB7-800

GASKET, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

6

Honda 18335-ZE8-000

ARRESTER, SPARK (Honda Code 2106326).

$14.99

$

Usually ships in 3-6 days

0

7

Honda 18338-ZB7-000

STAY, MUFFLER

$35.99

$

Usually ships in 3-6 days

0

8

Honda 18412-ZB7-000

SEAL, MUFFLER DUCT (A)

$7.49

$

Usually ships in 3-6 days

0

9

Honda 18413-ZB7-000

SEAL, MUFFLER DUCT (B)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 18414-ZB7-000

SEAL, MUFFLER DUCT (C)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 64181-ZB7-000

INSULATOR A, MUFFLER DUCT (LOWER)

$24.99

$

Usually ships in 3-6 days

0

12

Honda 64182-ZB7-000

INSULATOR B, MUFFLER DUCT (LOWER)

$27.99

$

Usually ships in 3-6 days

0

13

Honda 64185-ZB7-000

INSULATOR A, MUFFLER DUCT (UPPER)

$24.99

$

Usually ships in 3-6 days

0

14

Honda 64186-ZB7-000

INSULATOR B, MUFFLER DUCT (UPPER)

$27.99

$

Usually ships in 3-6 days

0

15

Honda 91551-ZB7-000

COLLAR, MUFFLER STAY

$5.99

$

Usually ships in 3-6 days

0

16

Honda 92101-08028-0A

BOLT, HEX. (8X28)

$2.49

$

In Stock, only 3 left!

0

17

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

19

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

20

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 6

0
